Manifold Pressure/Vacuum Sensor

Super Charger Inlet Air Pressure (SCIAP) Sensor:

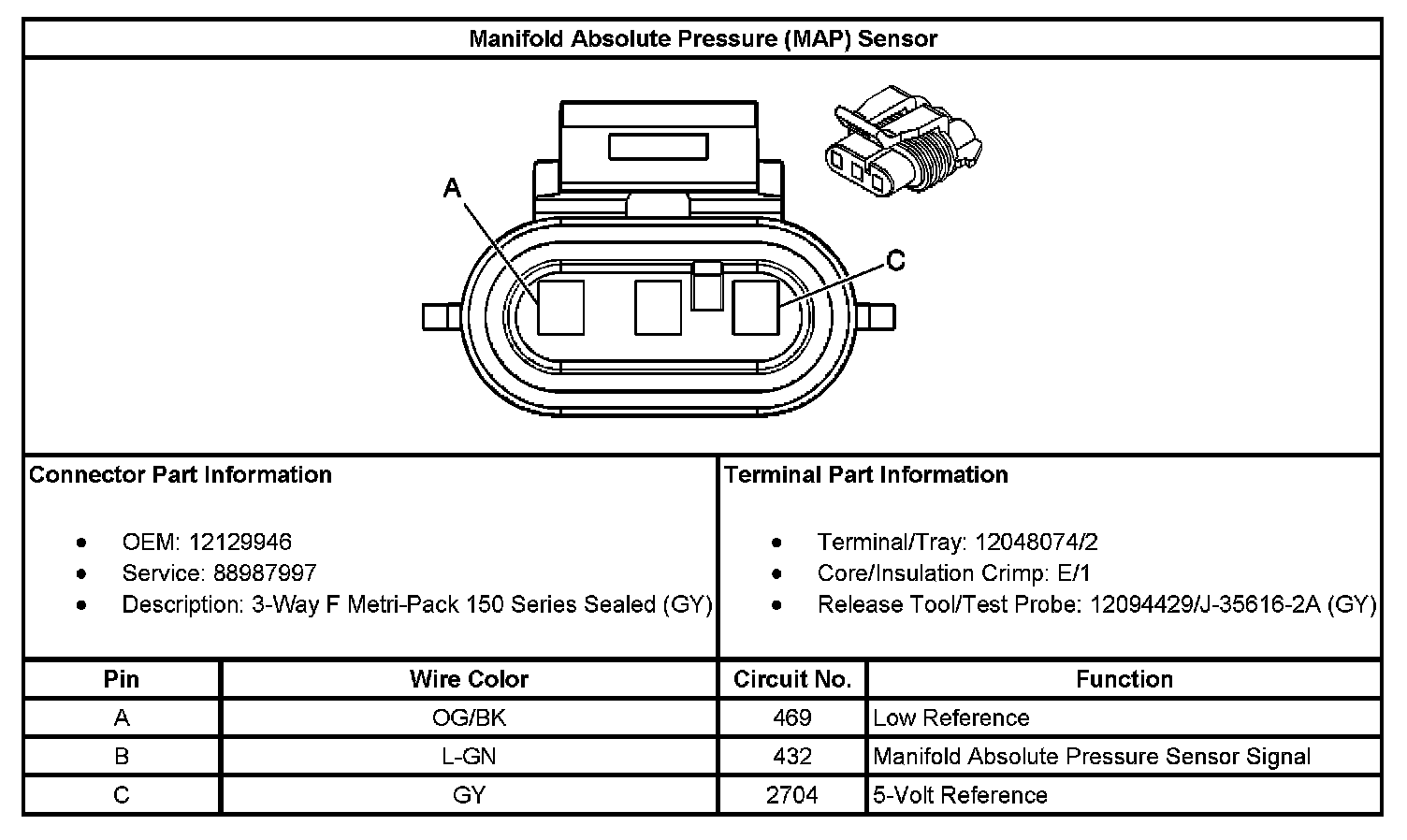

Manifold Absolute Pressure (MAP) Sensor:
