Driver/Vehicle Information Display: Service and Repair

Driver Information Center Switch Replacement

Removal Procedure

1. Remove the closeout/insulator panel.

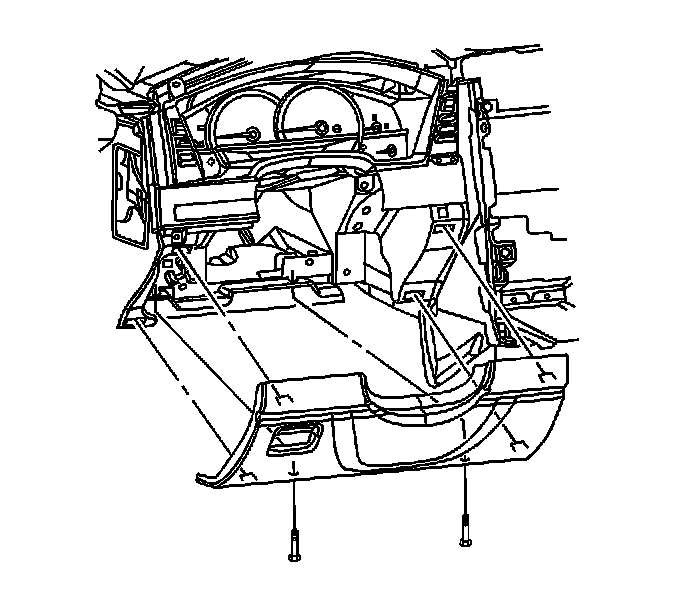

2. Remove the knee bolster trim panel.




3. Remove the retaining screws from the bottom of the switch pad.
4. Pull outward to disengage the retaining clip.

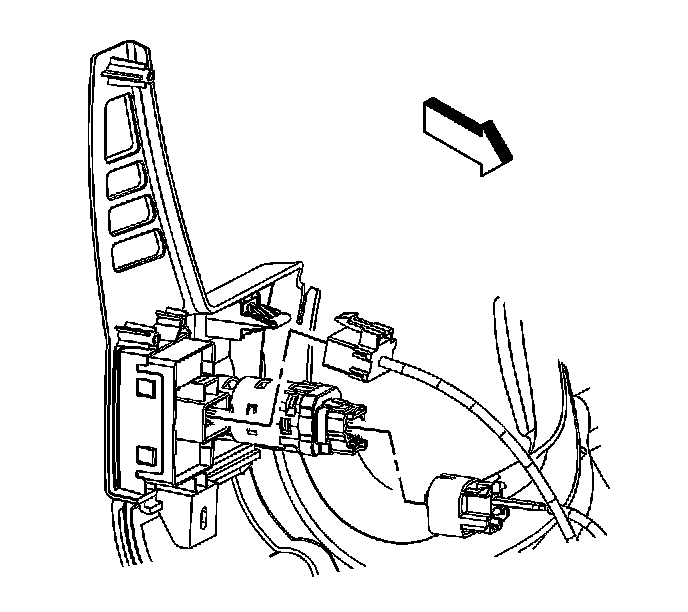

5. Disconnect the electrical connectors.




6. Remove the retaining screws from the DIC switch.
7. Remove the DIC switch.

Installation Procedure




1. Install the DIC switch to the IP cluster bezel.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the DIC switch retaining screws.

Tighten the screws to 1.5 N.m (13 lb in).




3. Connect the DIC switch electrical connector.
4. Install the retaining screw at the bottom of the DIC switch pad.

Tighten the screw to 1.5 N.m (13 lb in).

5. Install the knee bolster trim panel.
6. Install the closeout/insulator panel.
