Powertrain Management: Locations

Engine Controls Component Views

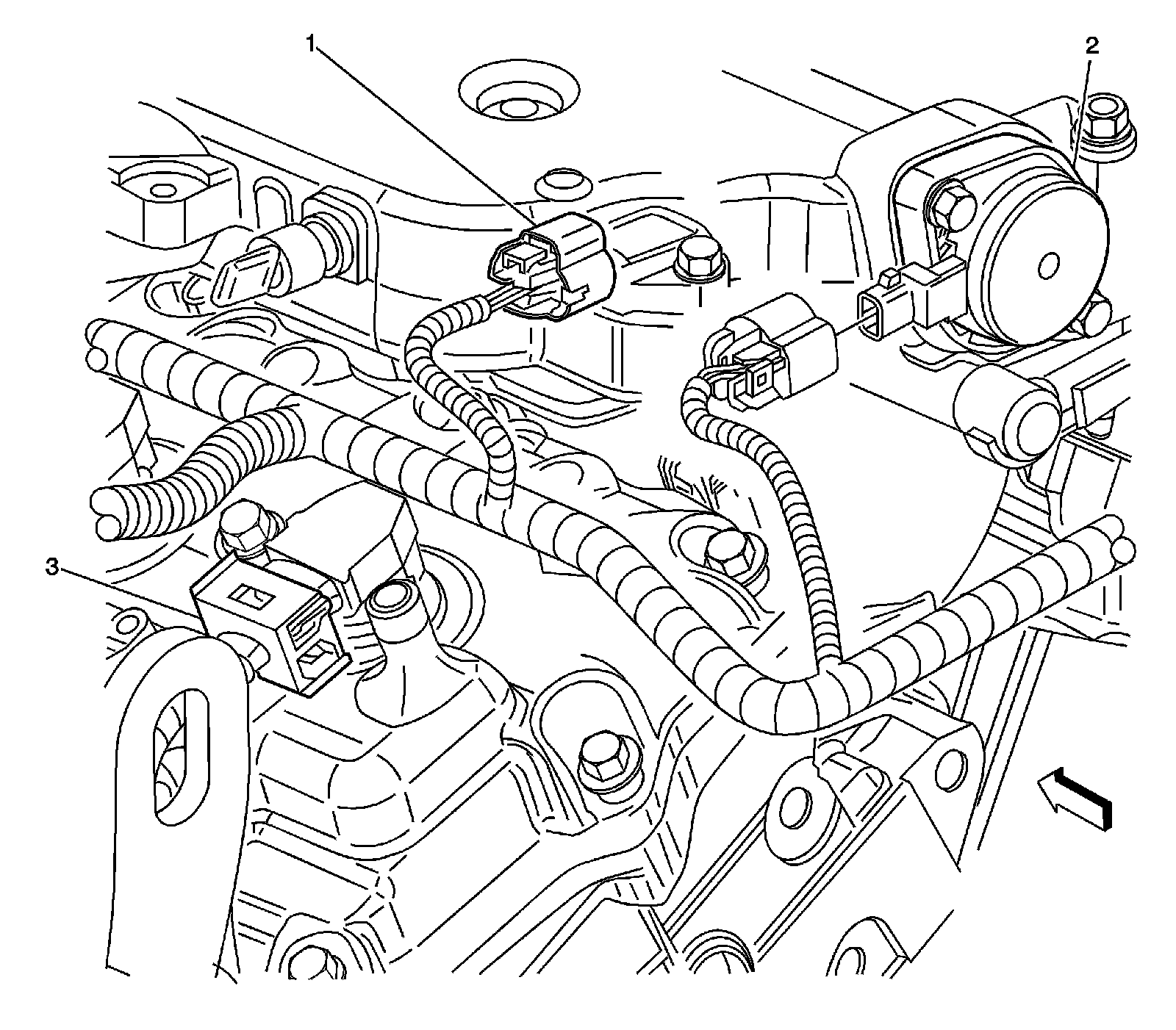

Engine Controls Components - Bank 1




1 - Intake Manifold Runner Control (IMRC) Solenoid
2 - Ignition Coil 5
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Ignition Coil 3
5 - Ignition Coil 1
6 - Throttle Body Assembly
7 - Knock Sensor (KS) - Bank 1
8 - Crankshaft Position (CKP) Sensor
9 - Engine Block Heater Assembly

Engine Controls Components - Bank 2




1 - Ignition Coil 2
2 - Ignition Coil 4
3 - Ignition Coil 6
4 - Barometric Pressure (BARO) Sensor
5 - Intake Manifold Runner Control (IMRC) Solenoid
6 - Engine Coolant Temperature (ECT) Sensor
7 - Knock Sensor (KS) - Bank 2
8 - Engine Oil Level/Temperature Sensor
9 - Engine Oil Pressure (EOP) Sensor

CMP Sensors and CMP Actuator Solenoids




1 - Camshaft Position (CMP) Sensor - Exhaust Bank 1
2 - Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1
3 - Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1
4 - Camshaft Position (CMP) Sensor - Intake Bank 1
5 - Camshaft Position (CMP) Sensor - Intake Bank 2
6 - Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2
7 - Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2
8 - Camshaft Position (CMP) Sensor - Exhaust Bank 2

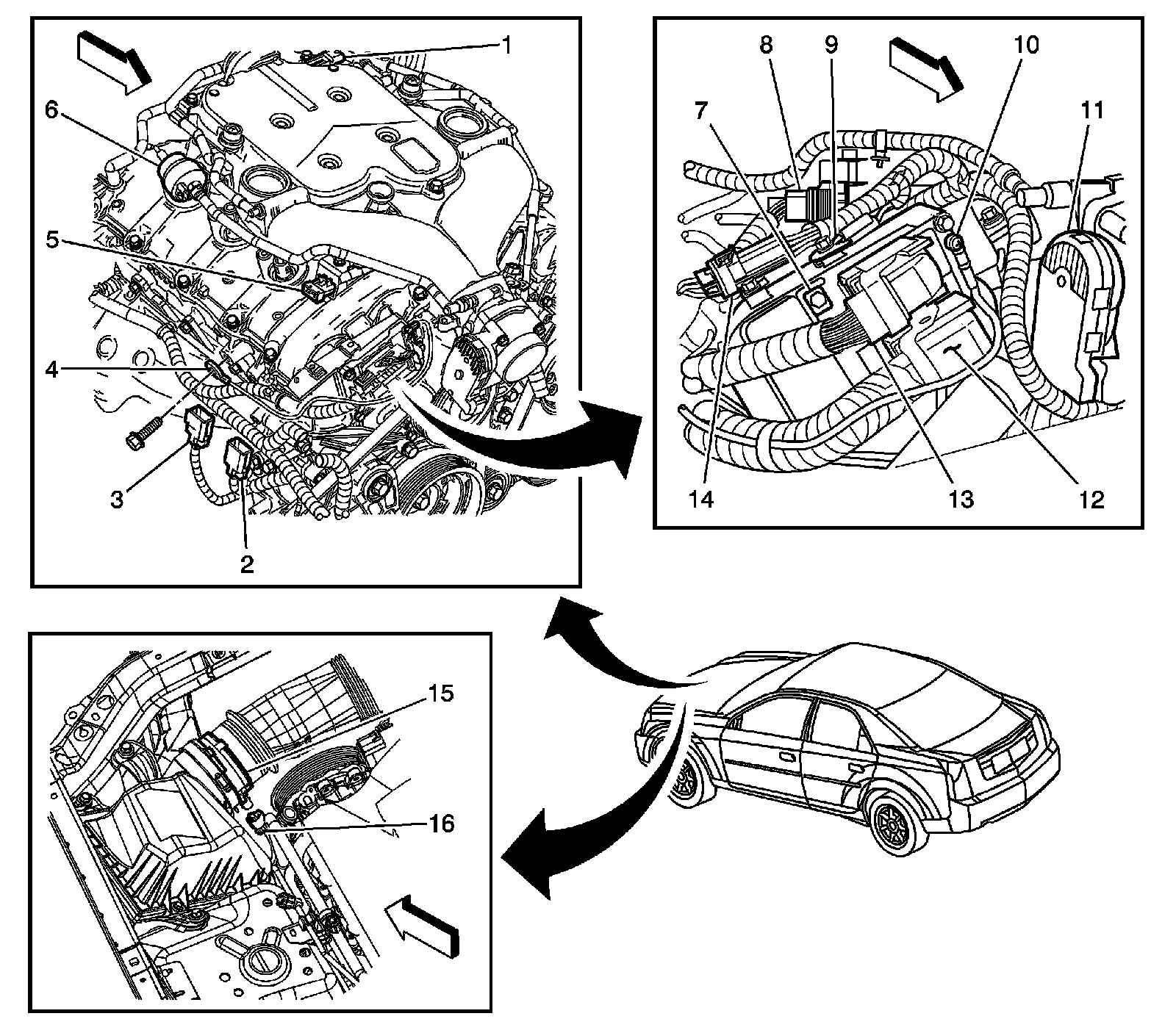

Top of Engine Components




1 - Barometric Pressure (BARO) Sensor
2 - C101
3 - C102
4 - Ground G133
5 - C121
6 - EVAP Canister Purge Solenoid Valve
7 - Engine Control Module (ECM)
8 - C121
9 - Ground G132
10 - ECM Case Ground
11 - Throttle Body Assembly
12 - Engine Control Module (ECM) Connector C1
13 - Engine Control Module (ECM) Connector C2
14 - C120
15 - Mass Air Flow (MAF) and Intake Air Temperature (IAT) Sensor
16 - Mass Air Flow (MAF) and Intake Air Temperature (IAT) Sensor Connector

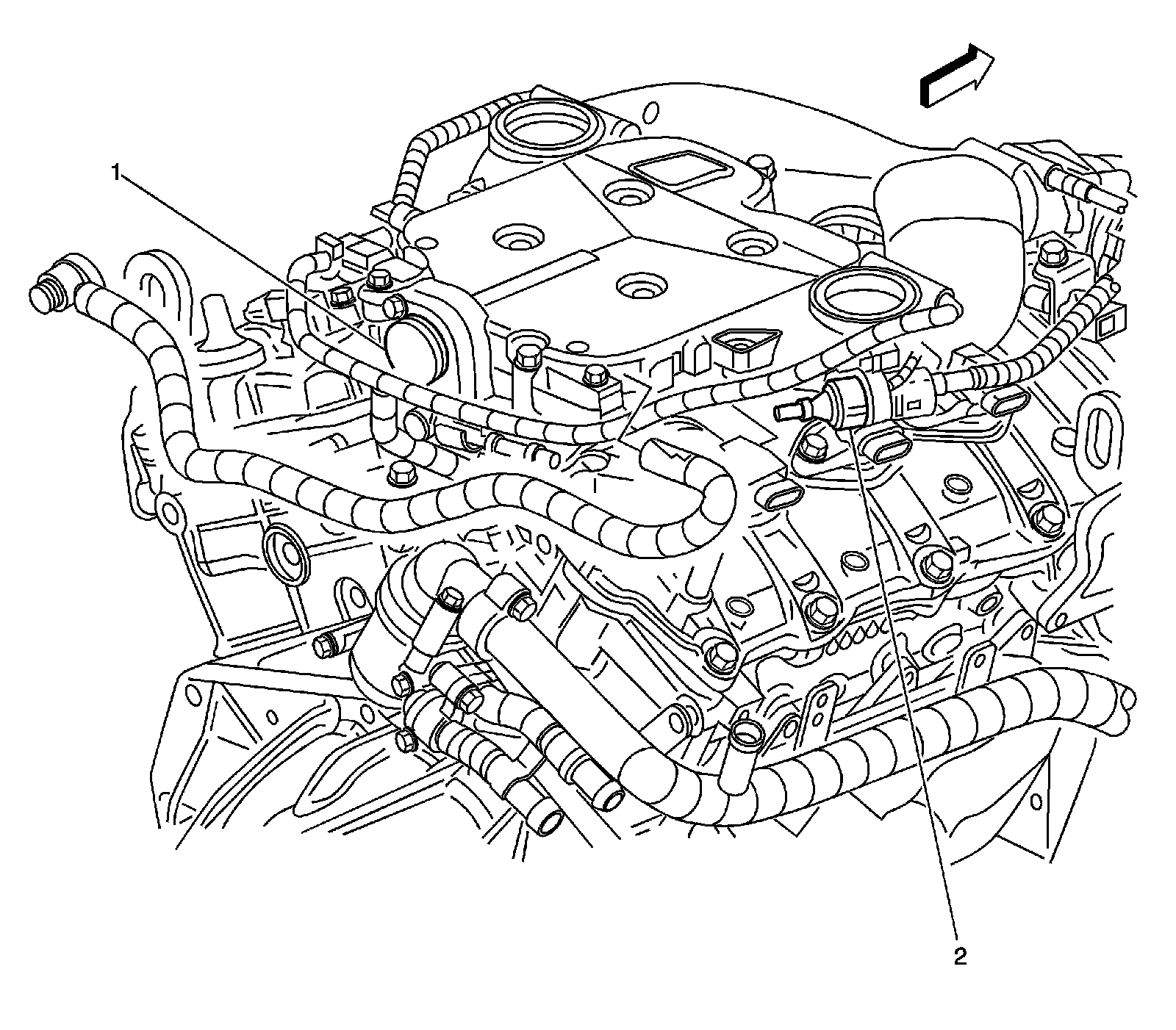

Right Rear of Engine




1 - Intake Manifold Runner Control (IMRC) Solenoid
2 - EVAP Canister Purge Solenoid Valve

Left Rear of Engine




1 - Barometric Pressure (BARO) Sensor
2 - Intake Manifold Runner Control (IMRC) Solenoid
3 - Ignition Coil 6

Heated Oxygen Sensors (HO2S)




1 - HO2S - Bank 2 Sensor 1
2 - HO2S - Bank 1 Sensor 1
3 - HO2S - Bank 1 Sensor 2
4 - HO2S - Bank 2 Sensor 2

Brake Pedal, Accelerator Pedal, BPP and APP Sensors




1 - Accelerator Pedal Position (APP) Sensor
2 - Accelerator Pedal
3 - Brake Pedal
4 - Brake Pedal Position (BPP) Sensor

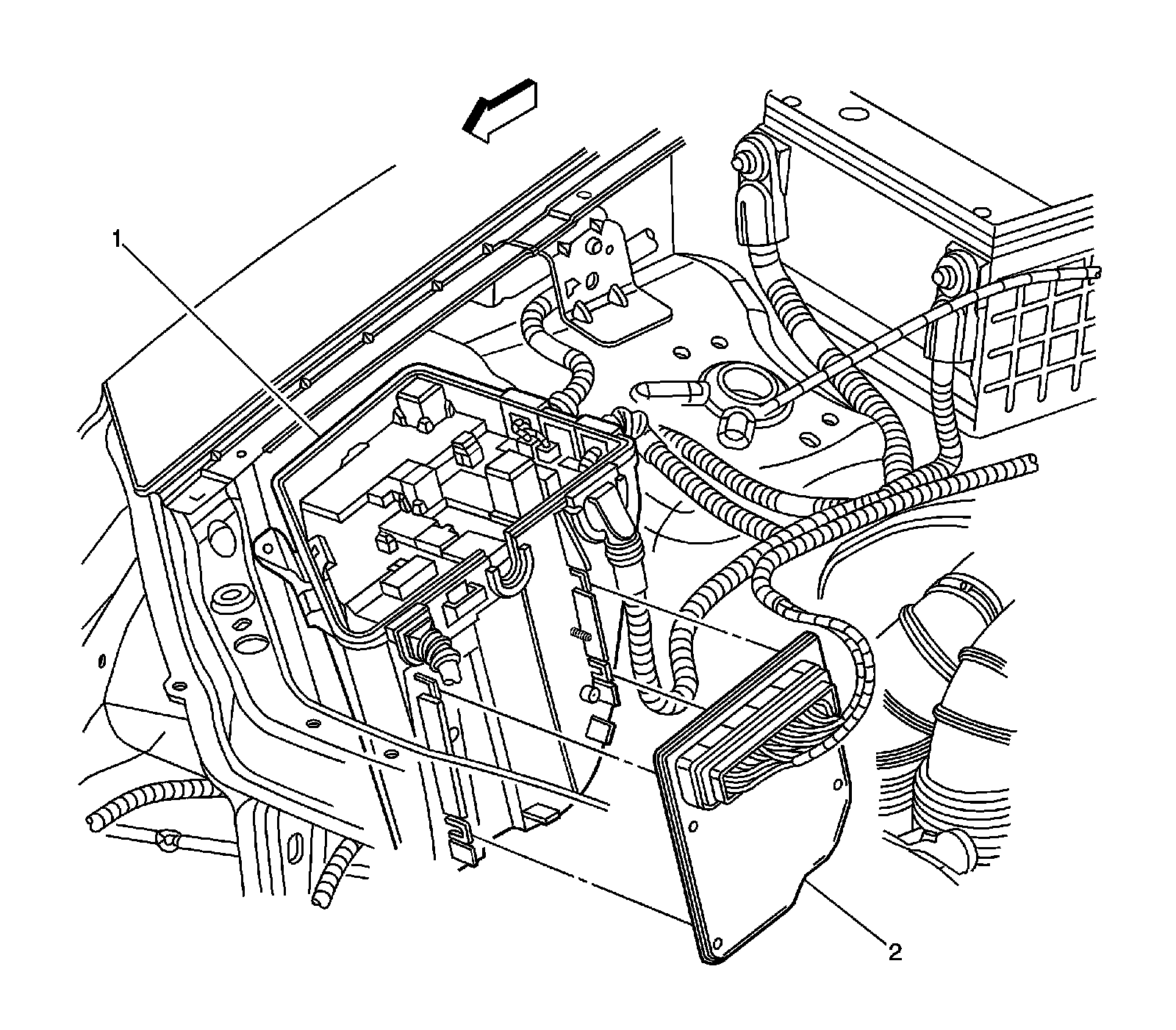

Transmission Control Module (TCM) (w/M82)

Transmission Control Module (TCM) (w/M82):

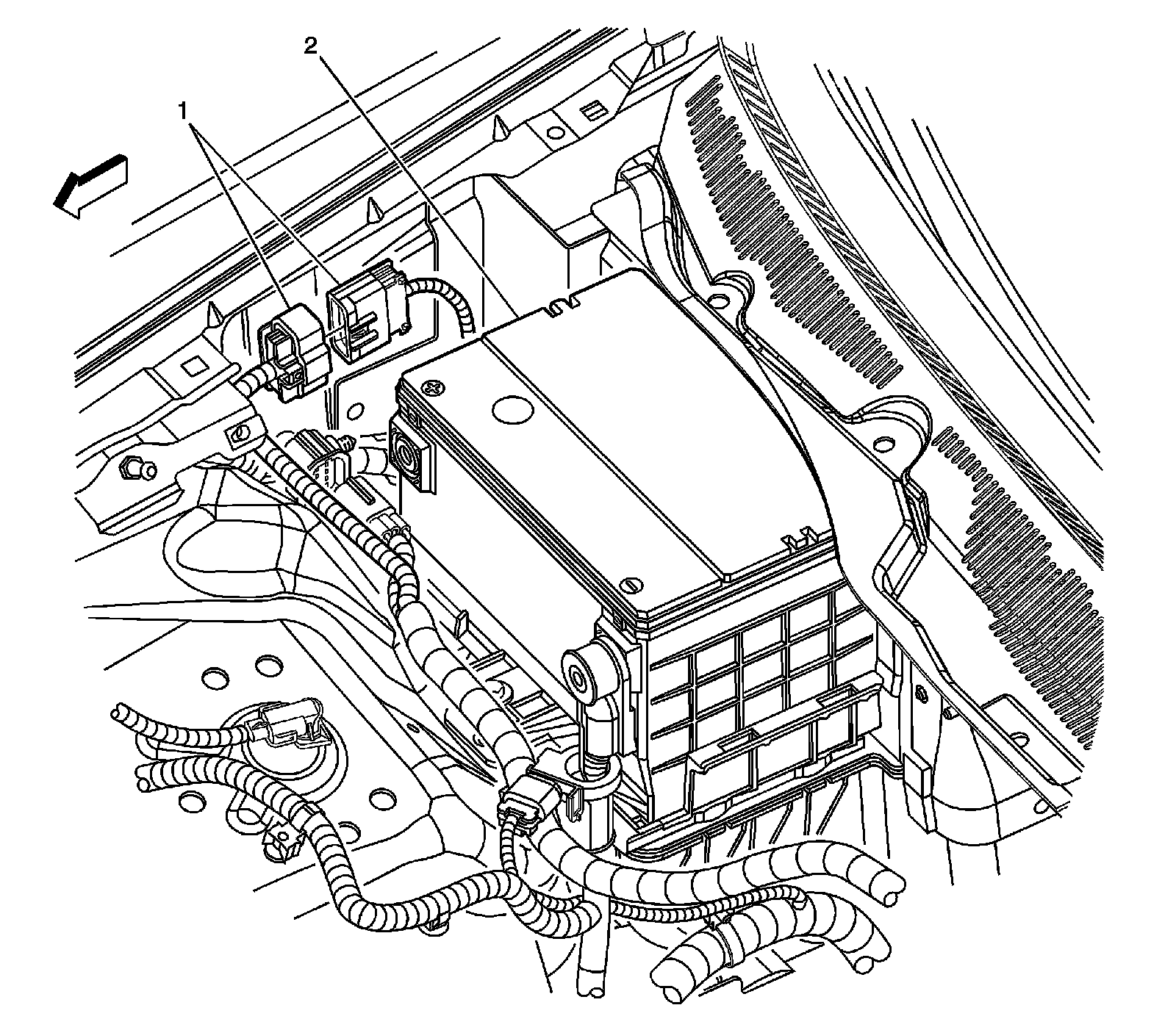

1 - Fuse Block - Underhood
2 - Transmission Control Module (TCM)

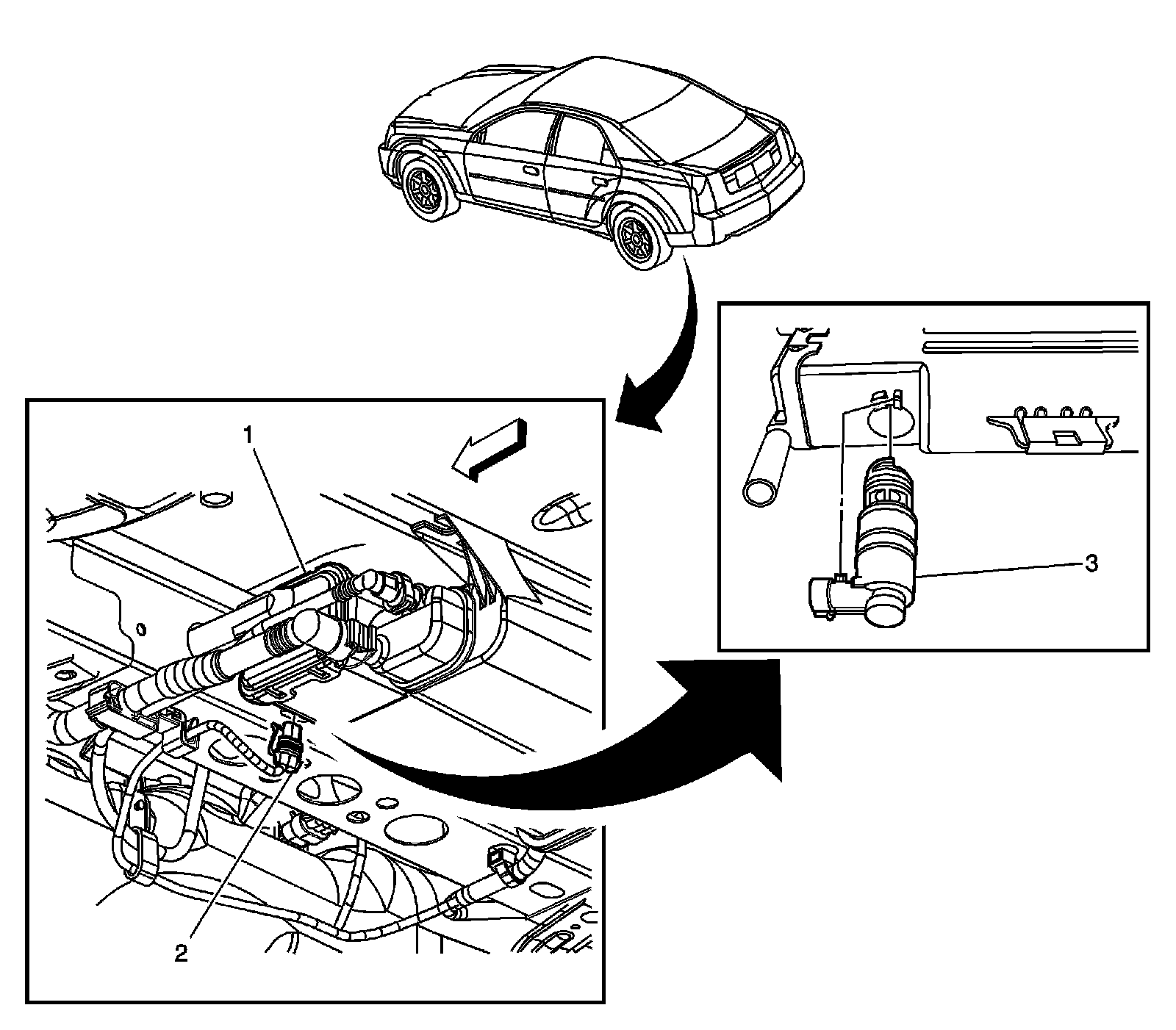

EVAP Canister Vent Solenoid Valve




1 - EVAP Canister
2 - EVAP Canister Vent Solenoid Valve Connector
3 - EVAP Canister Vent Solenoid Valve

Fuel Tank Subsystem Components




1 - Secondary Fuel Sender Assembly
2 - Secondary Fuel Sender Assembly Connector
3 - Secondary Fuel Sender Assembly (Removed from Fuel Tank)
4 - Fuel Pump and Sender Assembly (Removed from Fuel Tank)
5 - Fuel Pump and Sender Assembly
6 - Fuel Pump and Sender Assembly Connector

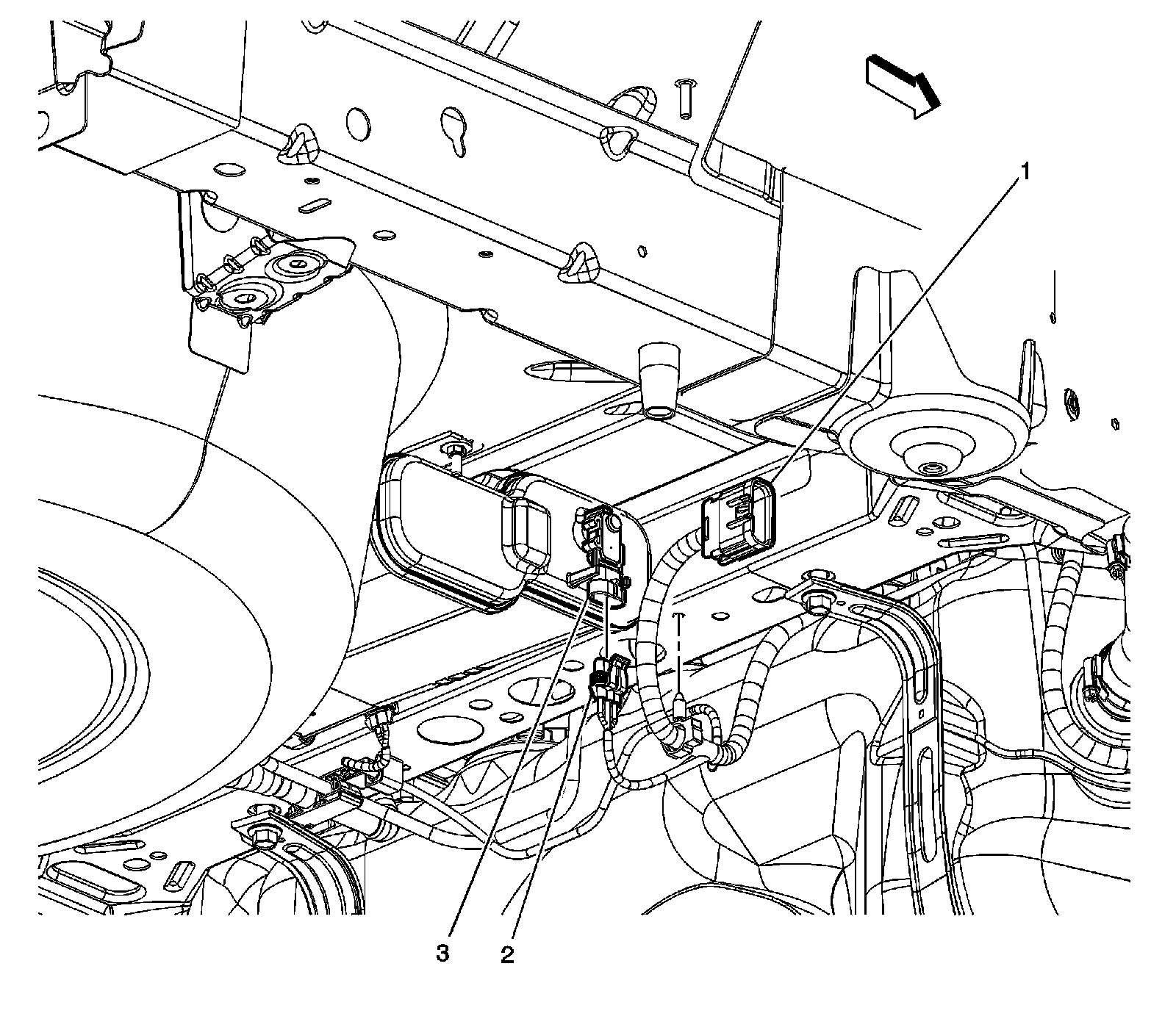

EVAP Canister Vent Solenoid Valve




1 - C420
2 - Fuel Tank Pressure Sensor
3 - Fuel Tank Pressure Sensor Connector

Body to Engine Inlines




1 - C101
2 - Battery

Fuel Injectors




1 - Valve Cover - Right
2 - Fuel Injector 5
3 - Intake Manifold
4 - Fuel Injector 6
5 - Fuel Injector 4
6 - Fuel Injector 2
7 - Valve Cover - Left
8 - Fuel Injector 1
9 - Fuel Injector 3
