Interior - Seat Back Finish Panel Replacement Info.
INFORMATIONBulletin No.: 09-08-50-003
Date: March 02, 2009
Subject:
Difference in Appearance of Seat Back Cushion Finish Panel Replacement - Replace in Pairs
Models:
2008 Cadillac CTS
Built Prior to VIN Breakpoint 80158685)
Build Date December 19, 2007
On vehicles built before the above listed breakpoint, the seat back cushion finish panels must be replaced in pairs. Due to a production change, the first panel design is no longer available as a service part. If the technician is unsure if this condition applies to the vehicle they are servicing, refer to Corporate Bulletin Number 08-08-50-004 for identification procedures.
Due to a tooling and manufacturing change to accommodate the active head restraint system, the original style and current style differ in appearance. This change in appearance may be visible to customers.
When replacing one seat back cushion finish panel, the other side must be replaced as well due to the part change being visible to the customer. Use the new part numbers listed below for service parts.

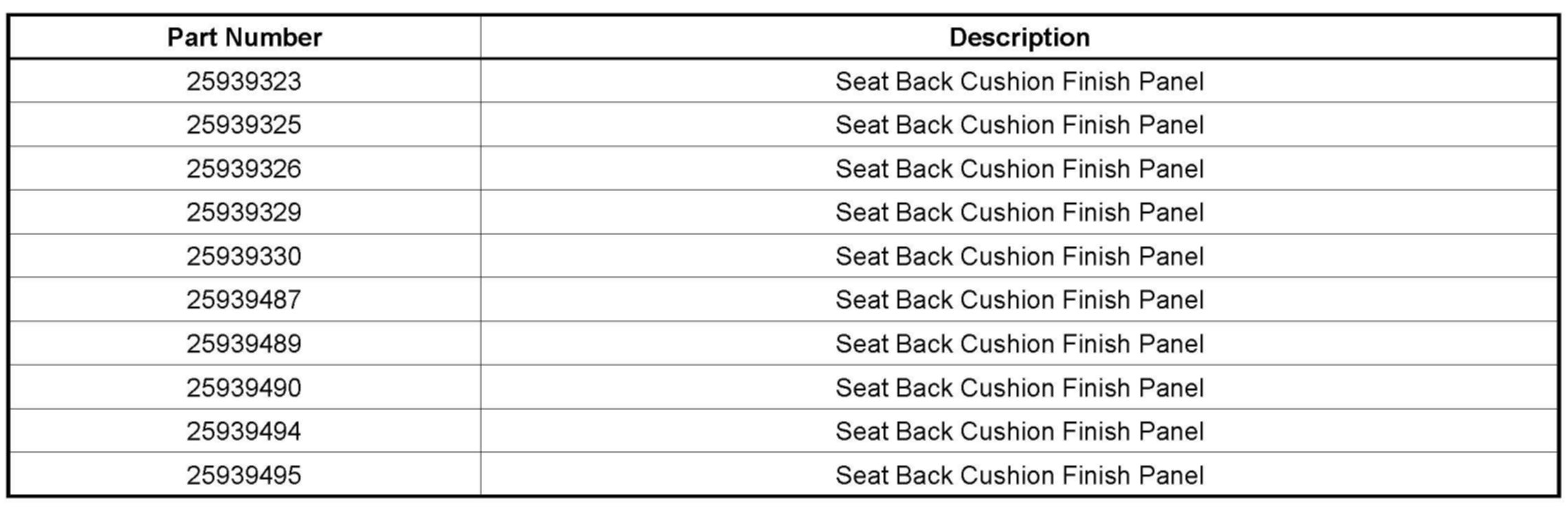

Parts Information
