Air Temperature Actuator - Driver
Air Temperature Actuator - Driver
Component Connector End Views

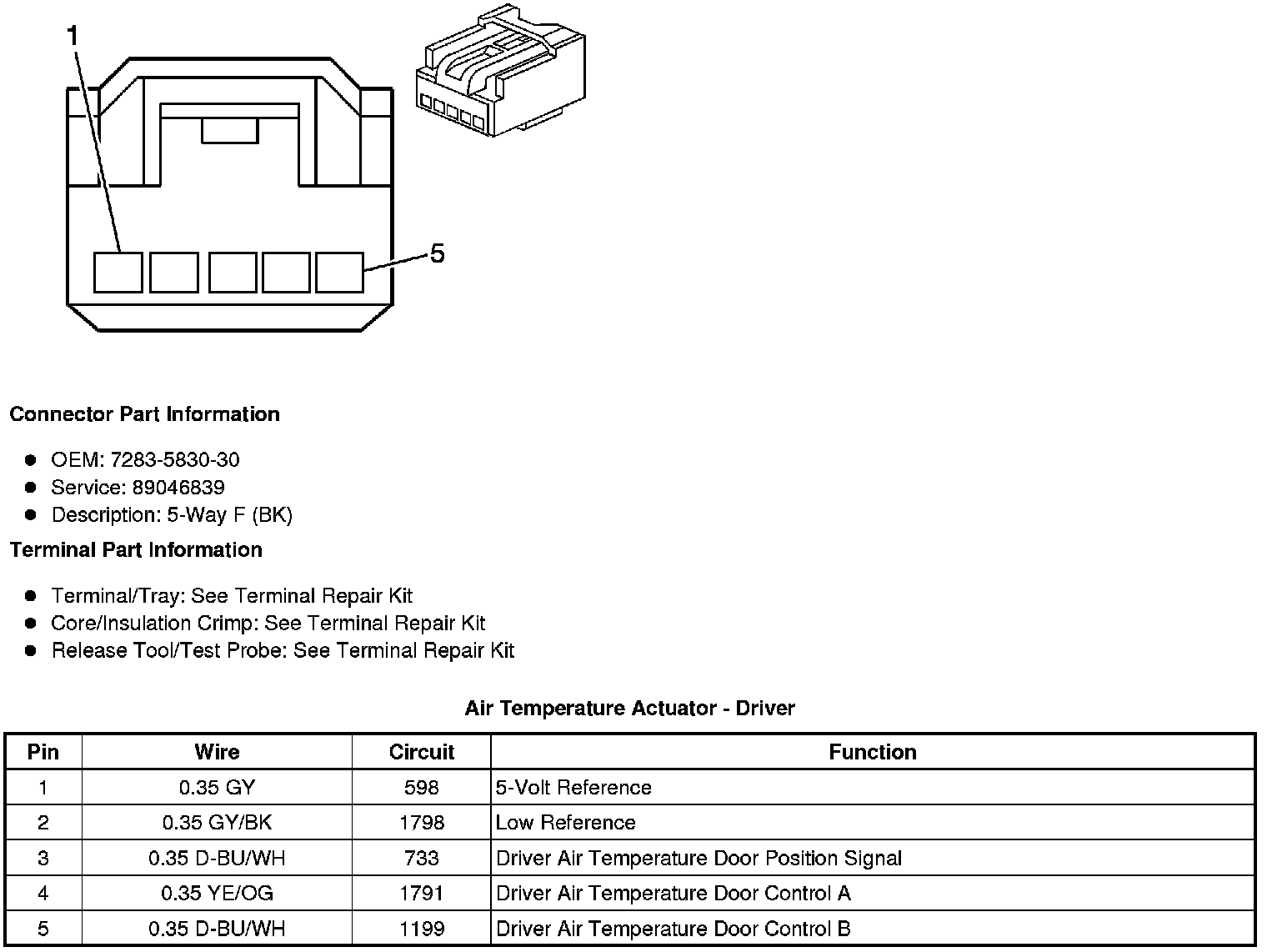

Air Temperature Actuator - Driver
