Air Door Actuator / Motor, HVAC
>>
Mode Actuator - Auxiliary (CJ4)
Mode Actuator - Auxiliary (CJ4)

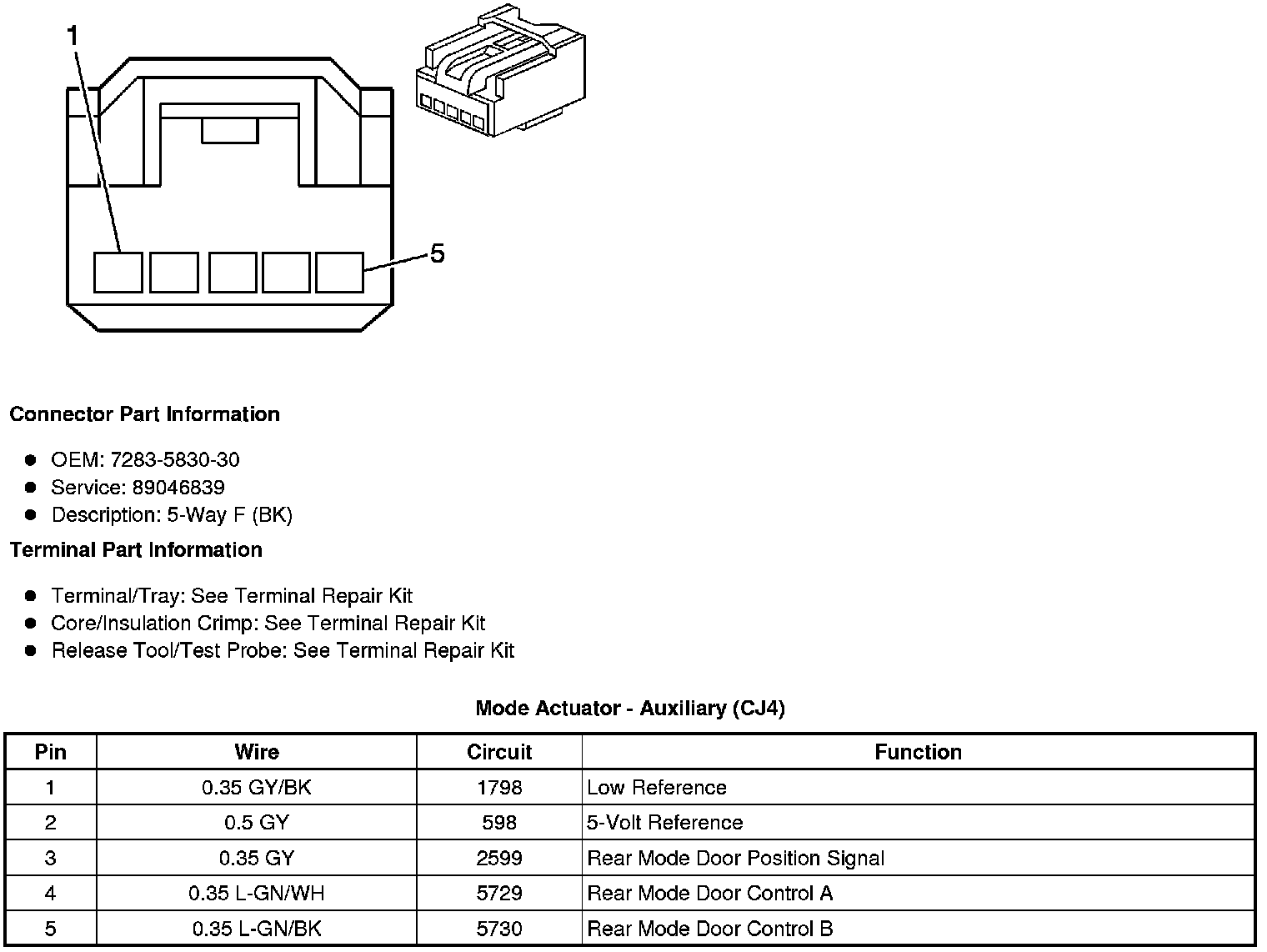

Component Connector End Views
Mode Actuator - Auxiliary (CJ4)
