Power Seat Motor Position Sensor
>>
Seat Lumbar Motor Position Sensor - Front Passenger (-A45)
Seat Lumbar Motor Position Sensor - Front Passenger (-A45)

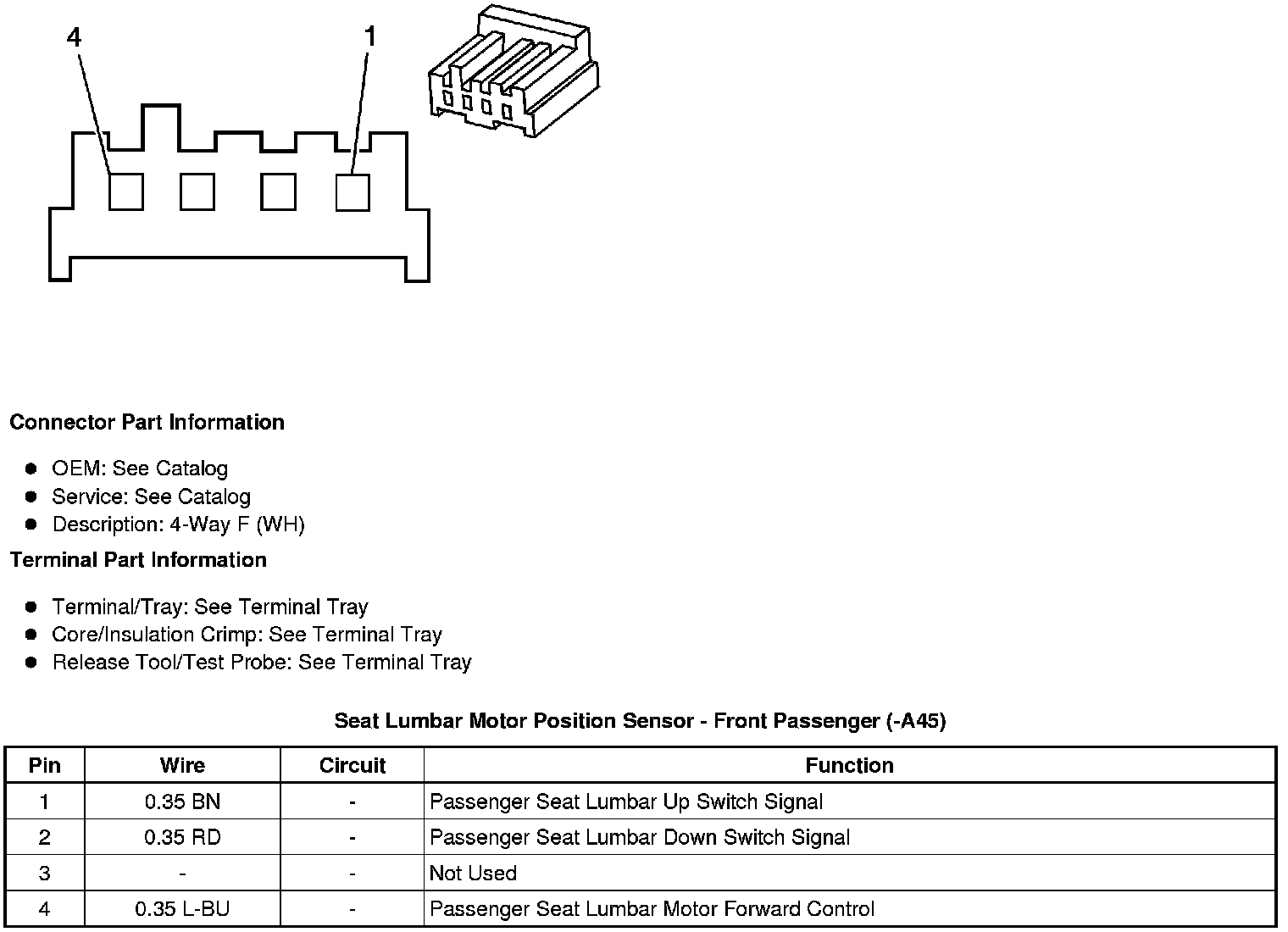

Component Connector End Views
Seat Lumbar Motor Position Sensor - Front Passenger (-A45)
