Seat Lumbar Motor Position Sensor - Driver Horizontal (AM3) (Part of Seat Lumbar Massage Motor - Driver)

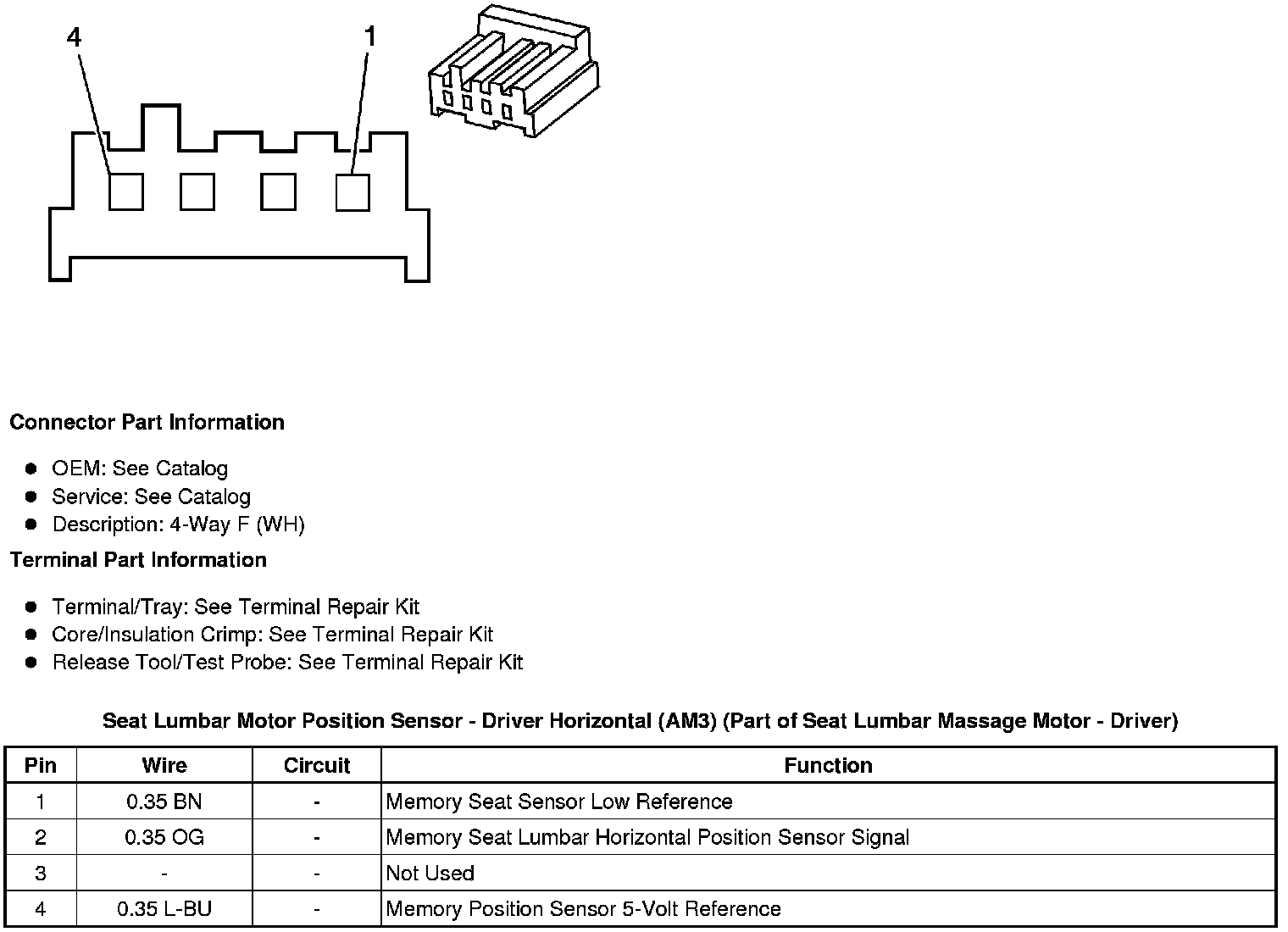

Component Connector End Views

Seat Lumbar Motor Position Sensor - Driver Horizontal (AM3) (Part of Seat Lumbar Massage Motor - Driver)
