Seat Lumbar Vertical Motor - Right Rear (ARC)
Seat Lumbar Vertical Motor - Right Rear (ARC)

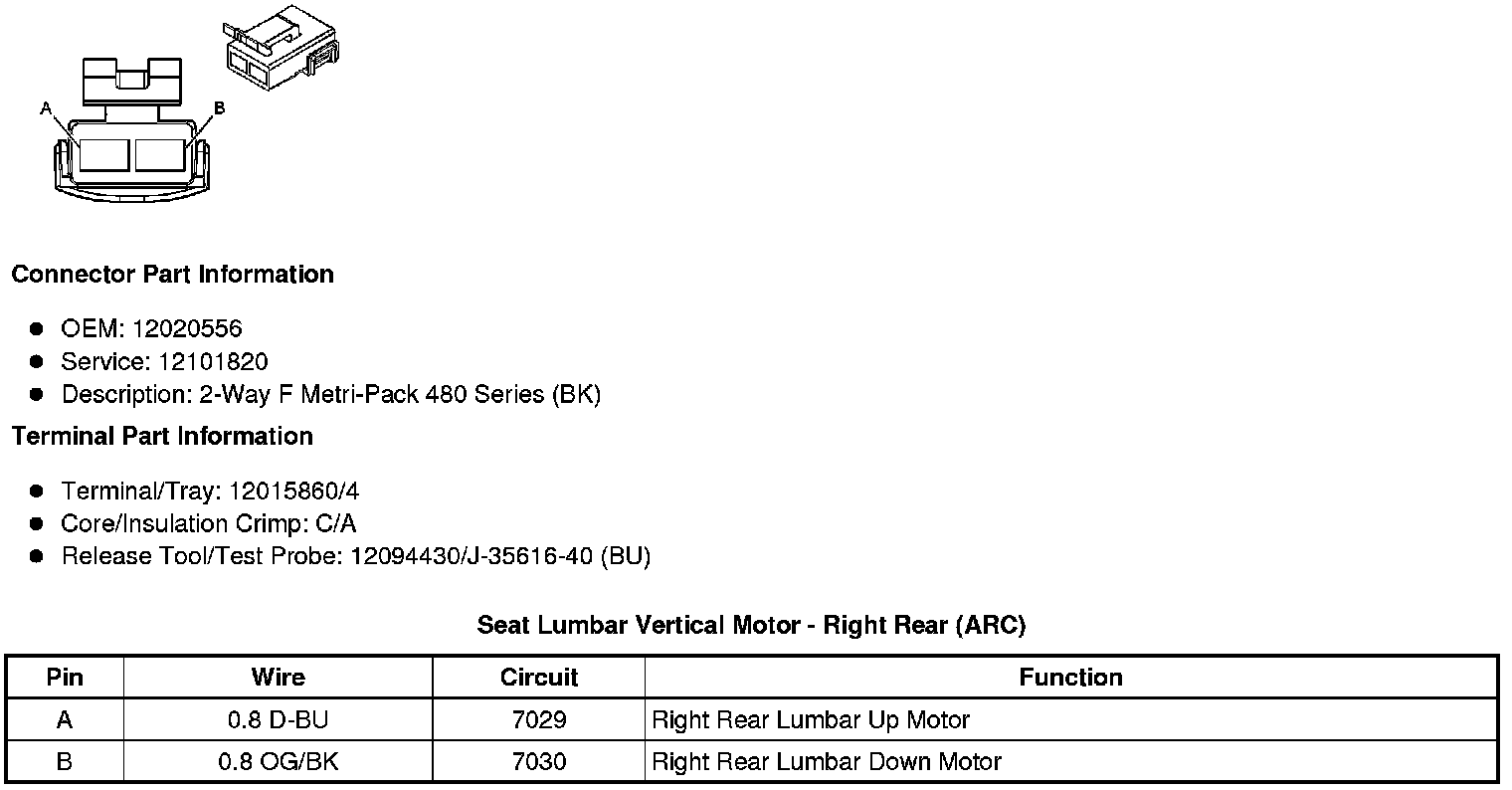

Component Connector End Views
Seat Lumbar Vertical Motor - Right Rear (ARC)
