Seat Recline Motor - Driver (AG1, A45) (Part of Driver Seat Recline Motor Assembly)

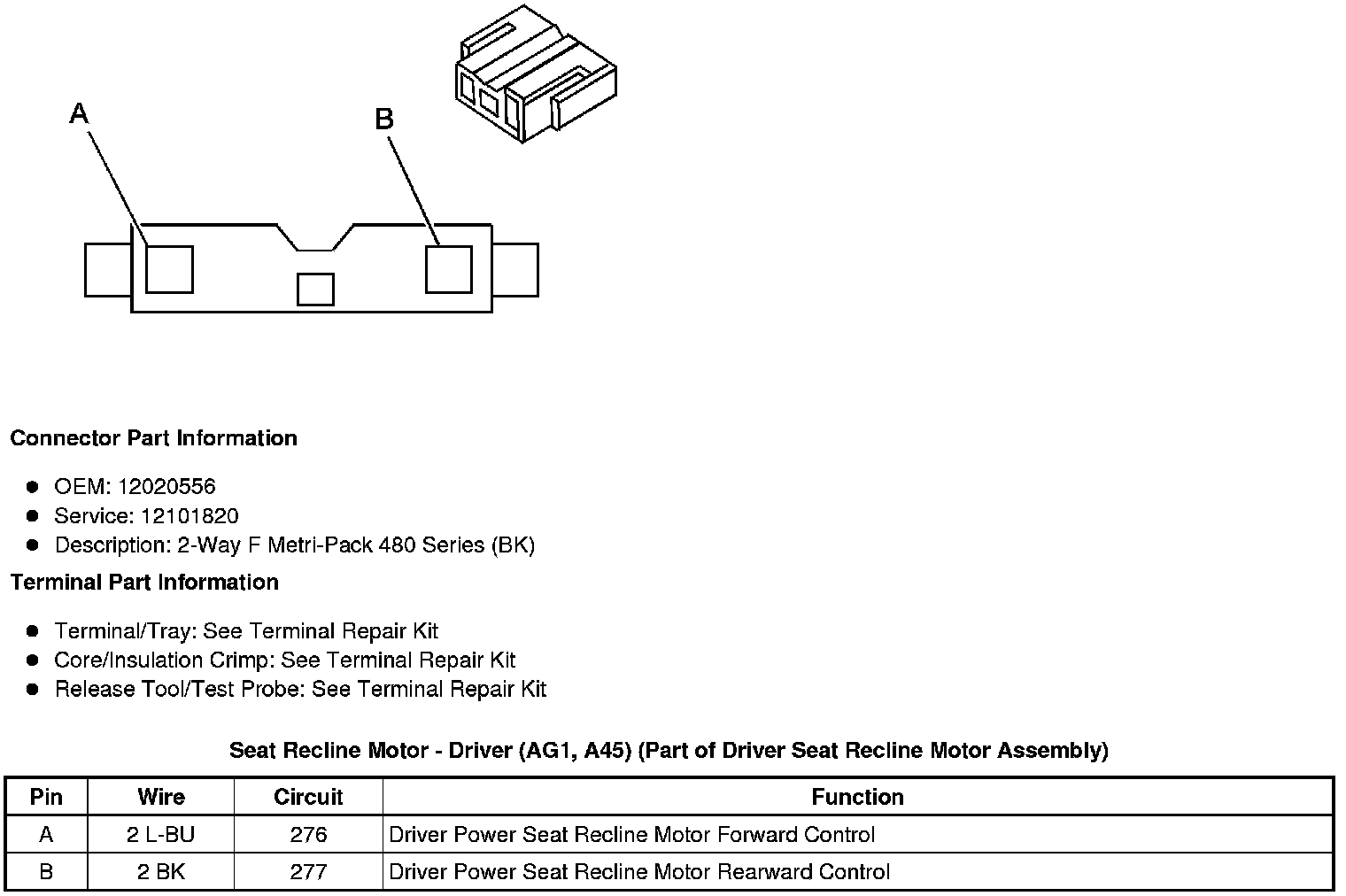

Component Connector End Views

Seat Recline Motor - Driver (AG1, A45) (Part of Driver Seat Recline Motor Assembly)
