Speaker - Front Center (UQ3)
Speaker - Front Center (UQ3)

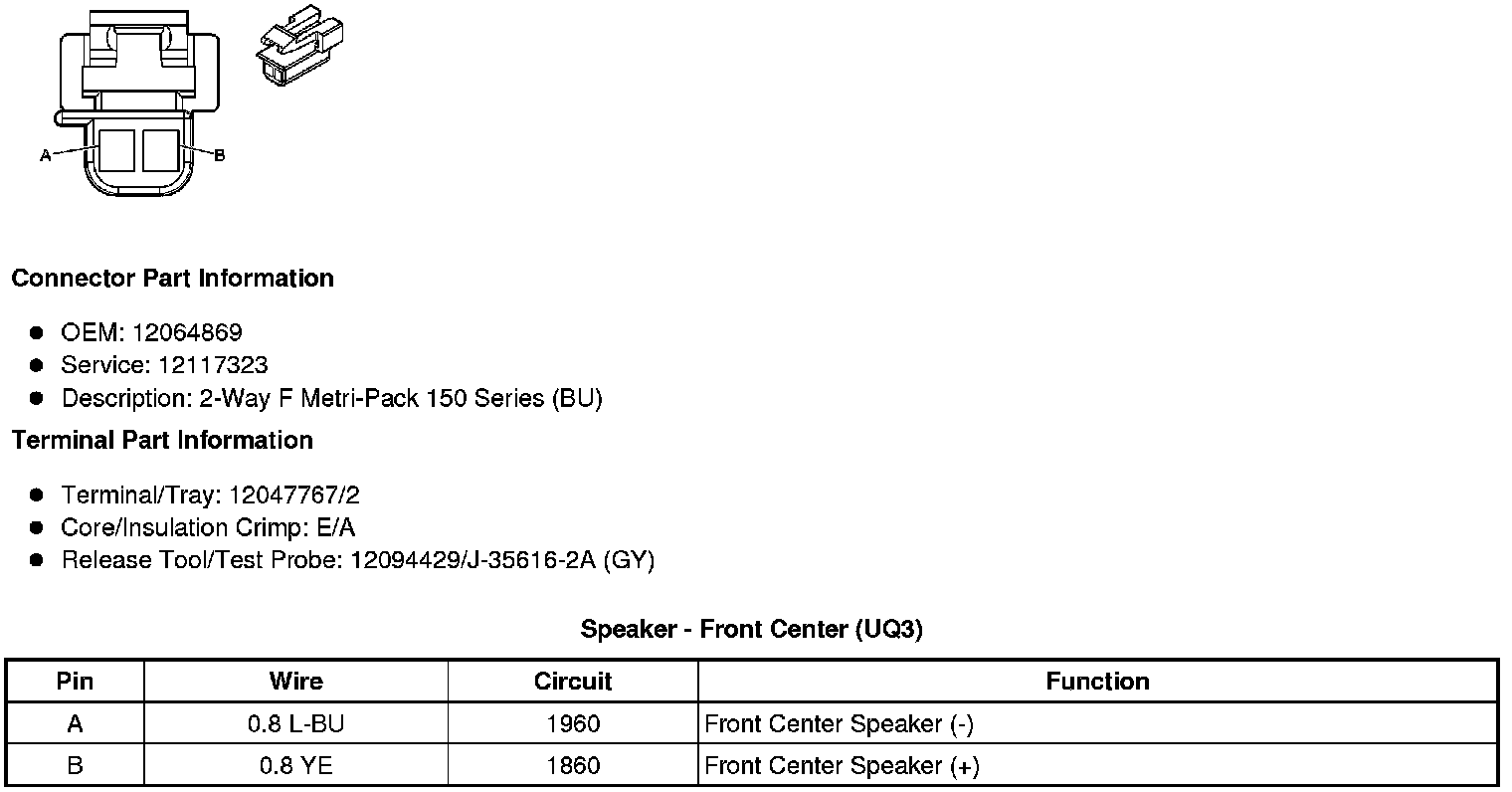

Component Connector End Views
Speaker - Front Center (UQ3)
