Sun Shade
>>
Sunshade Switch (DE9)
Sunshade Switch (DE9)

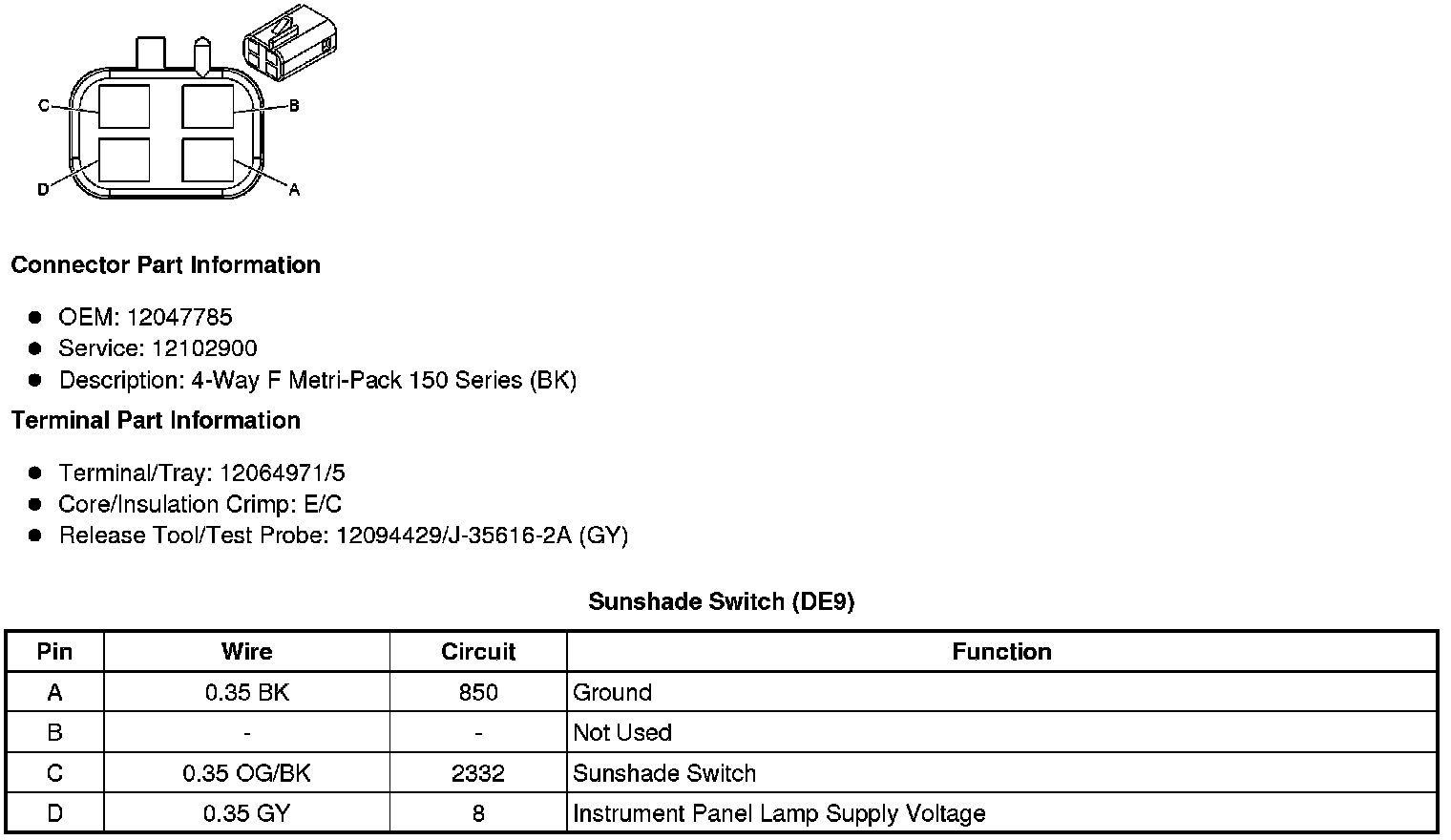

Component Connector End Views
Sunshade Switch (DE9)
