Suspension Control ( Automatic - Electronic )
>>
Air Suspension
Air Suspension
Air
Suspension

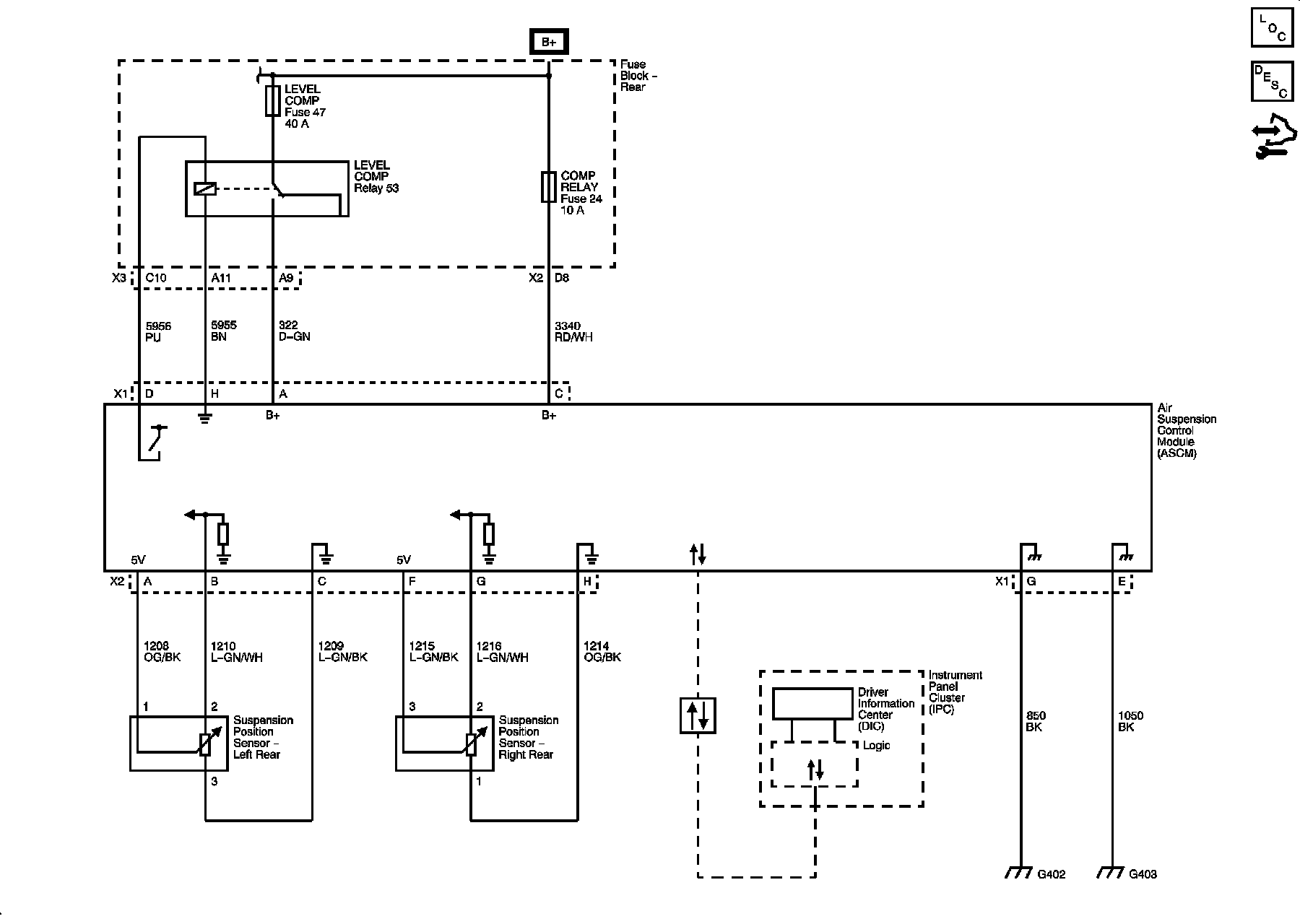

Schematics
F38
