Engine Harness

Harness Routing Views

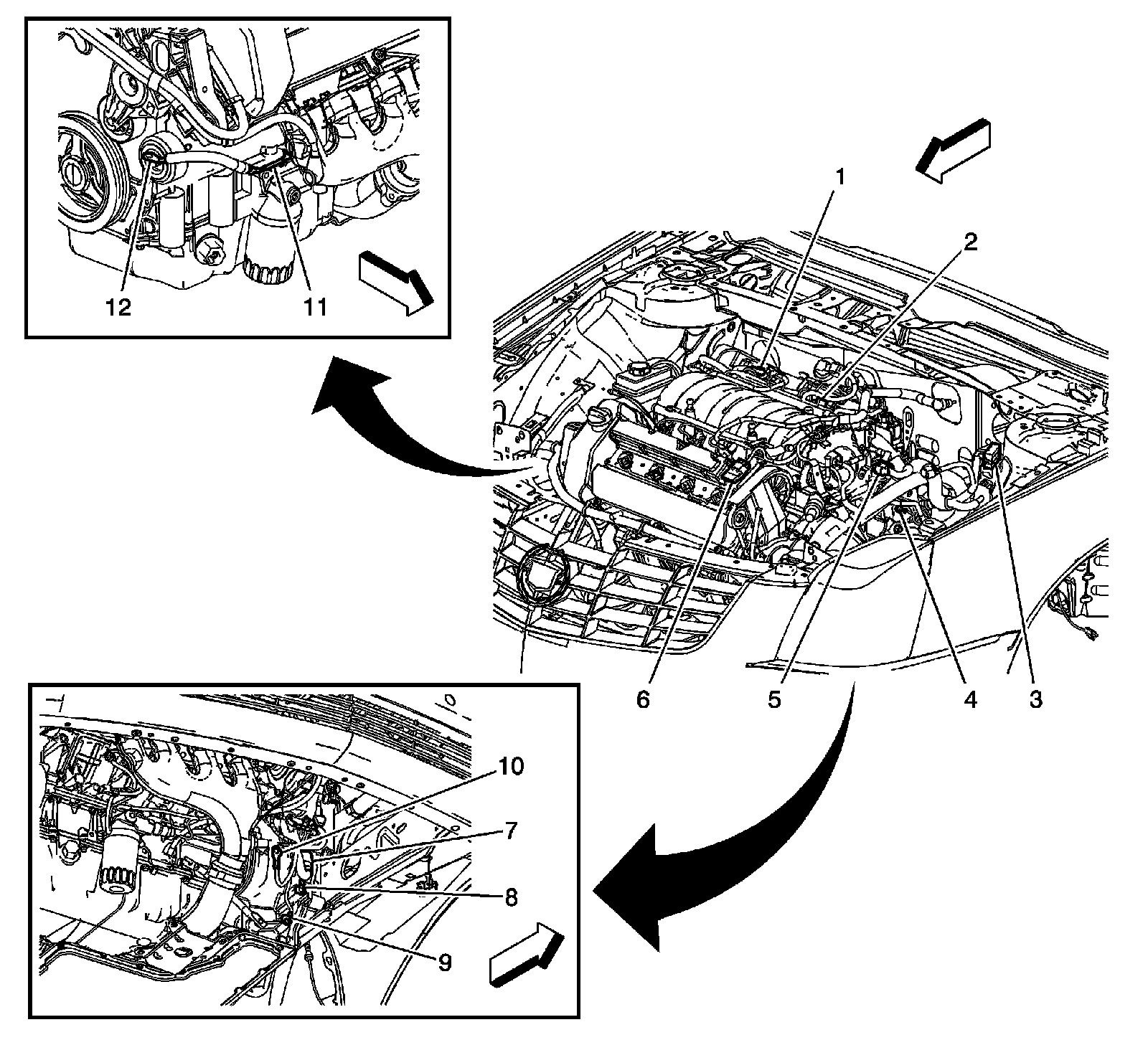

Engine Harness (L37/LD8)




1 - X140
2 - X161
3 - X111
4 - G100
5 - X138
6 - X139
7 - X101
8 - G115
9 - G112
10 - G114
11 - G110
12 - G111

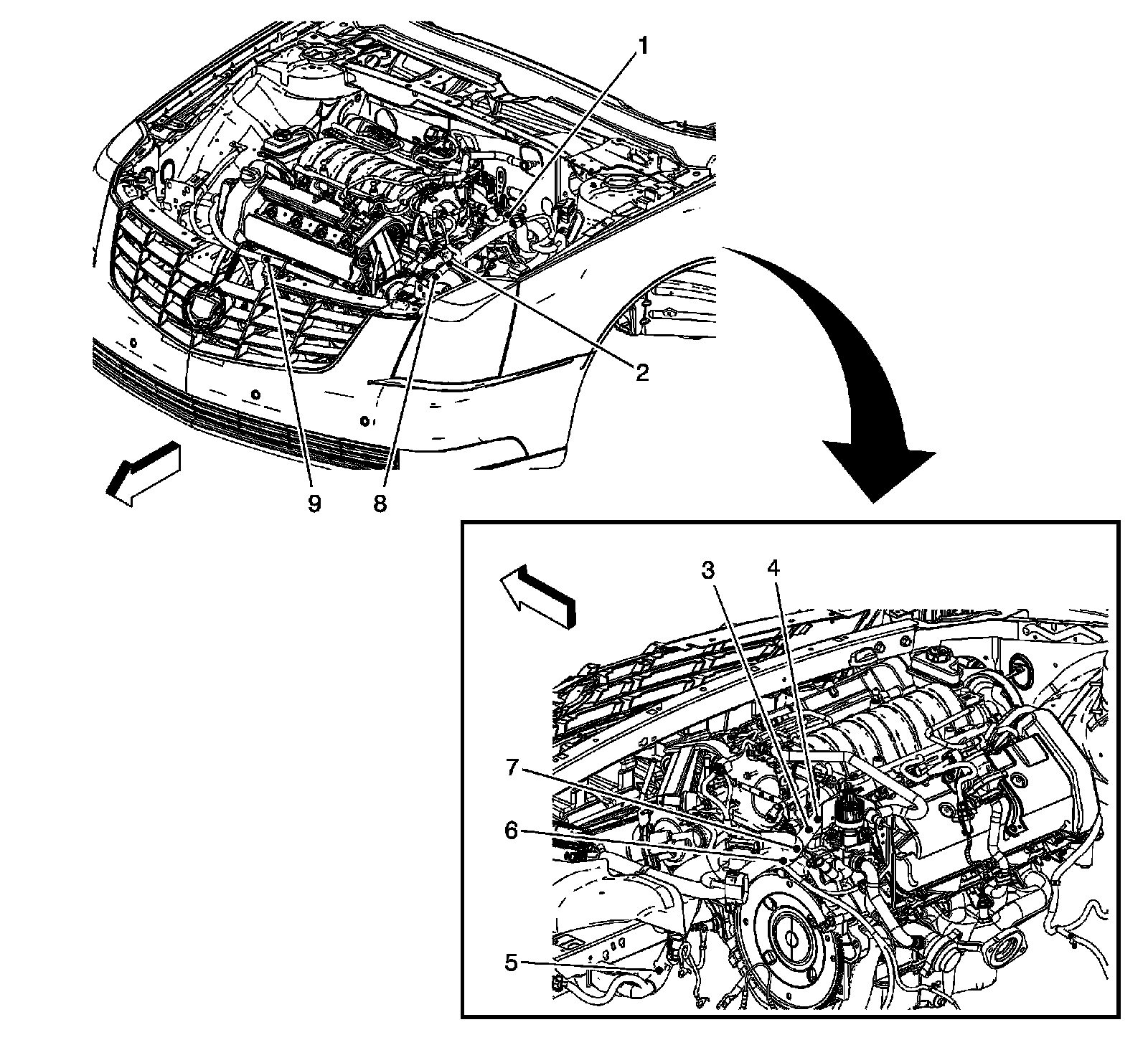

Engine Harness Splices (L37/LD8)




1 - J104
2 - J106
3 - J102
4 - J109
5 - J108
6 - J110
7 - J100
8 - J105
9 - J111
