Clock Malfunction



Clock Malfunction

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.

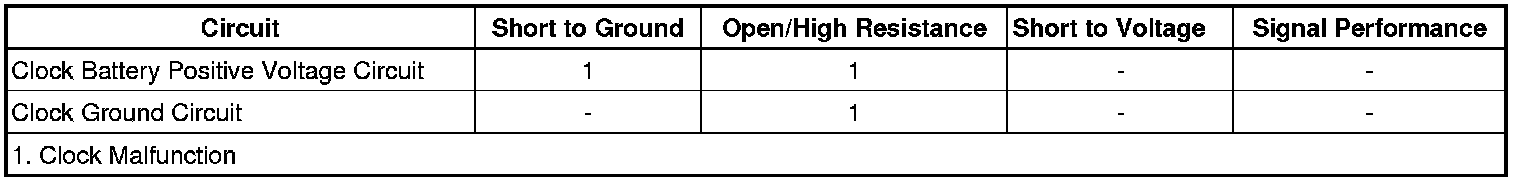

Diagnostic Fault Information






Circuit/System Description

The instrument panel is equipped with an analog clock. The analog clock utilizes the clock battery positive voltage circuit and the clock ground circuit to operate. An open circuit condition, a high resistance or a short to ground in the battery positive voltage circuit or the ground circuit will cause the clock not to operate properly.


Reference Information
Schematic Reference

Instrument Cluster Schematics (Instrument Cluster Schematics)
Connector End View Reference

Component Connector End Views (Connector Views)
Description and Operation

Instrument Cluster Description and Operation (Description and Operation)
Electrical Information Reference

* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)

Scan Tool Reference

Programming and Relearning (Programming and Relearning) for scan tool information


Circuit/System Testing

1. Ignition OFF, disconnect the harness connector at the clock.
2. Ignition OFF, test for less than 1 ohm between the ground circuit terminal 2 and ground.

If greater than the specified range, test the ground circuit for an open/high resistance.

3. Verify that a test lamp illuminates between the B+ circuit terminal 1 and the ground circuit terminal 2.

If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance.

4. If all circuits test normal, replace the clock.



Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.


Clock Replacement (Service and Repair)
