Cigarette Lighter
Cigarette Lighter
Component Connector End Views

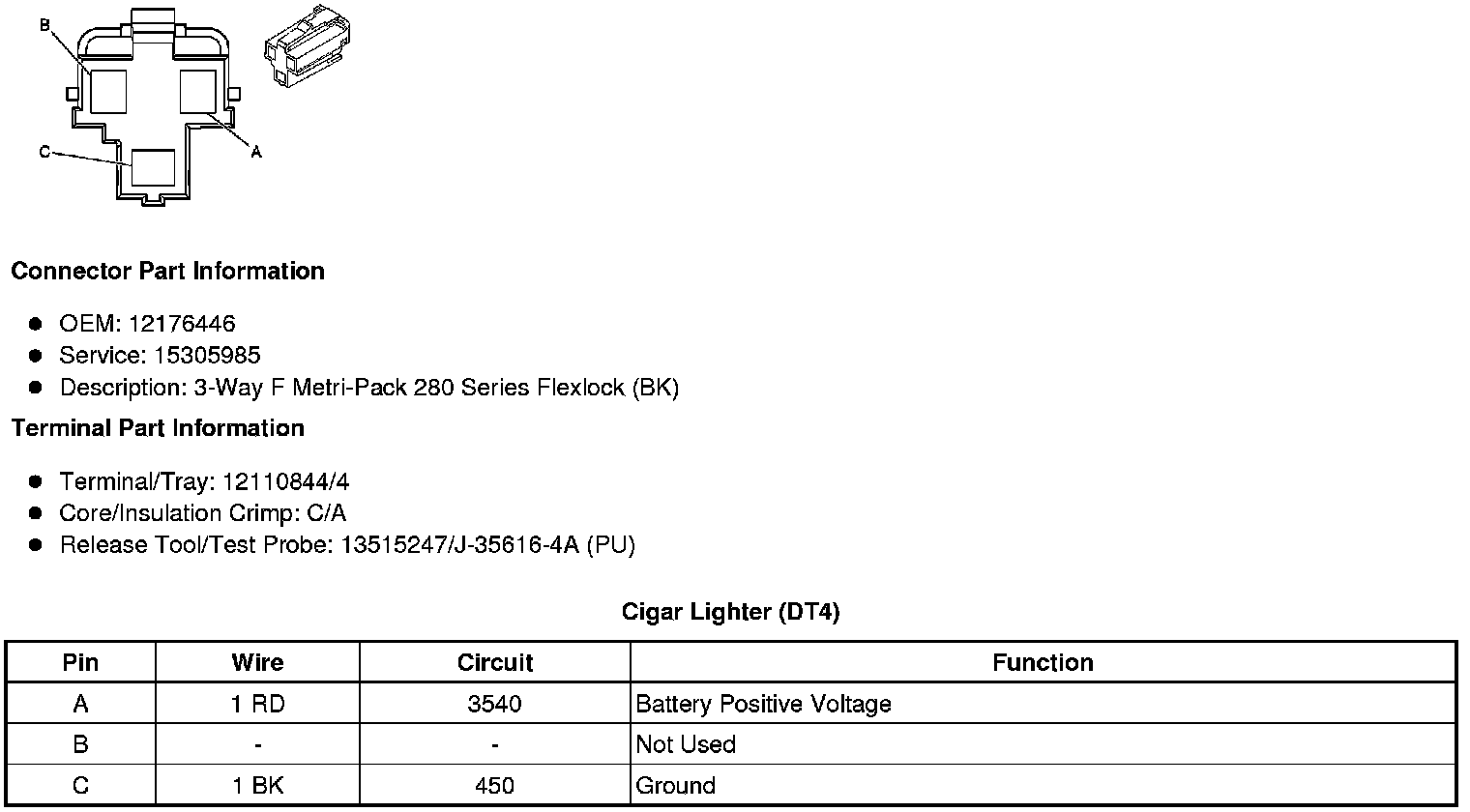

Cigar Lighter (DT4)

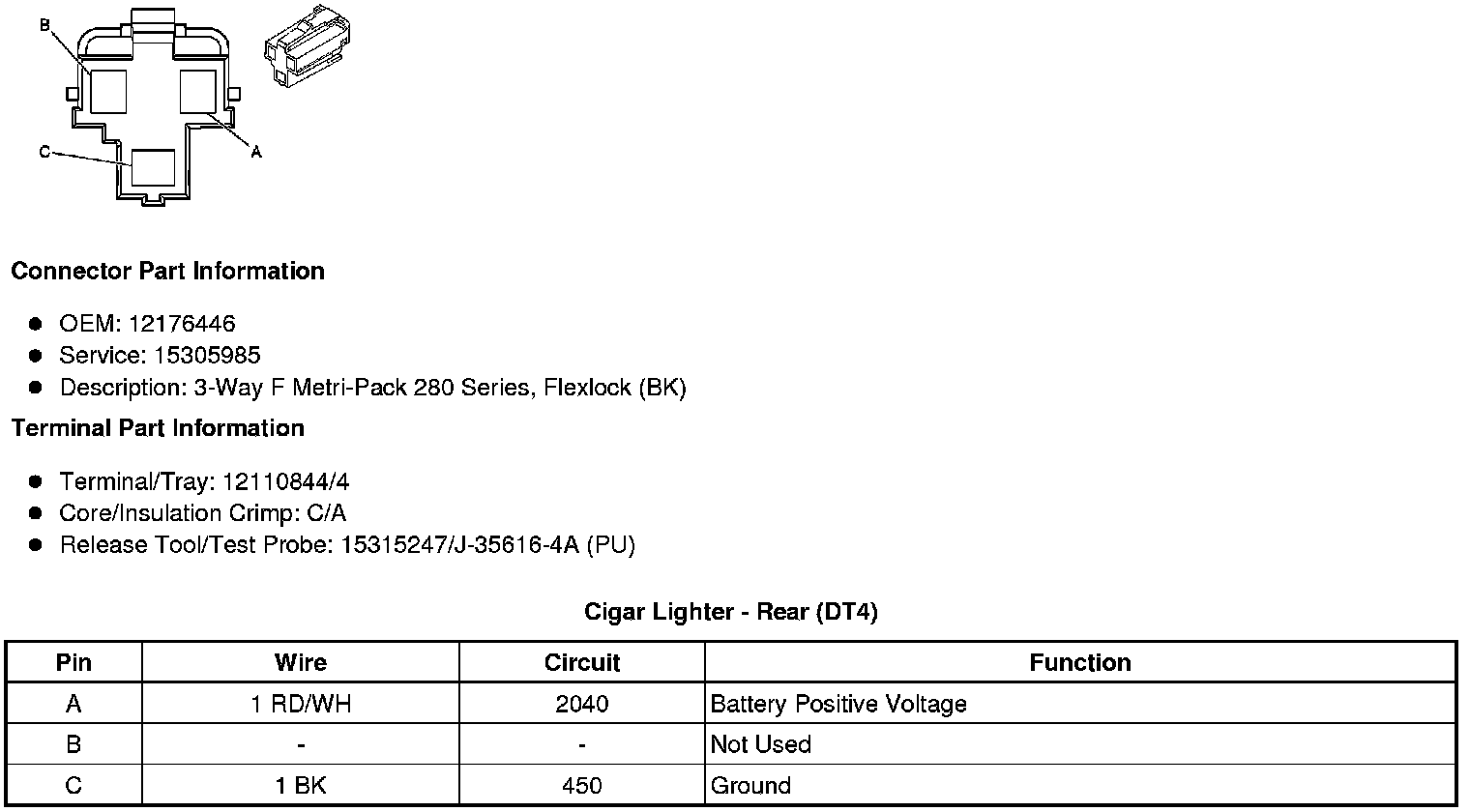

Cigar Lighter - Rear (DT4)
