Antilock Brake System Schematics (With RPO JL7)



Antilock Brake System Schematics (JL7)

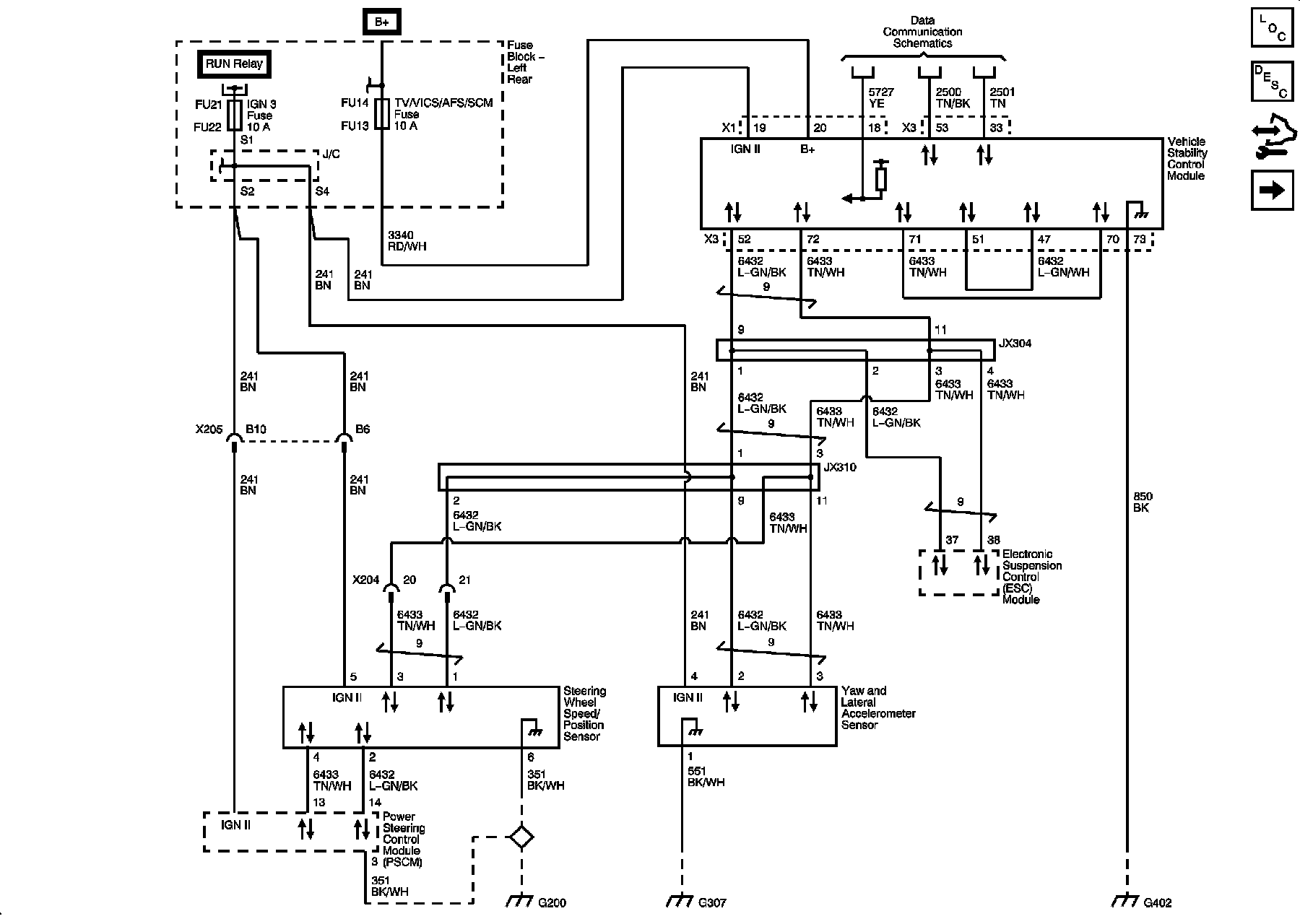

Steering Angle and Acceleration Sensors

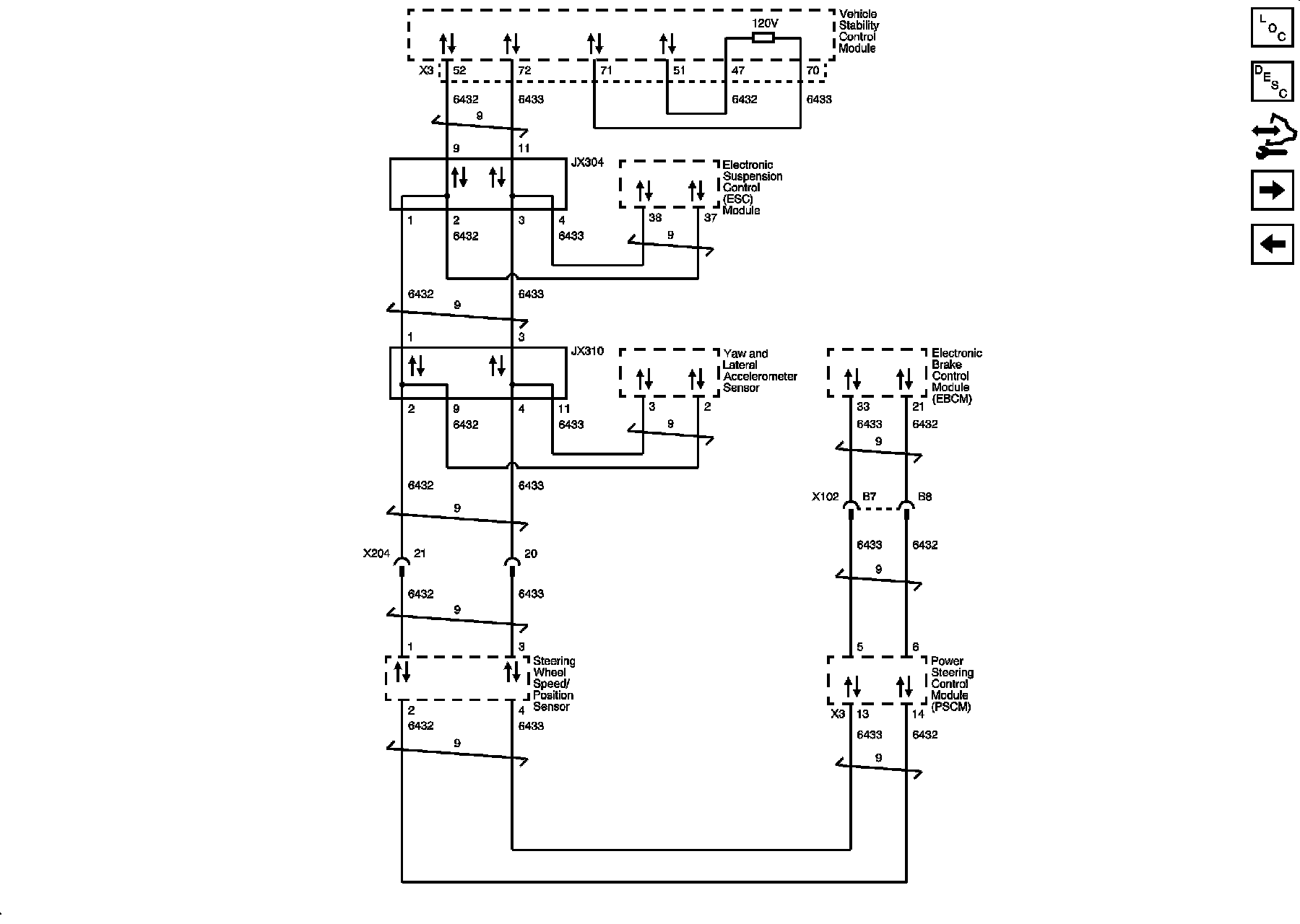

Data Communication

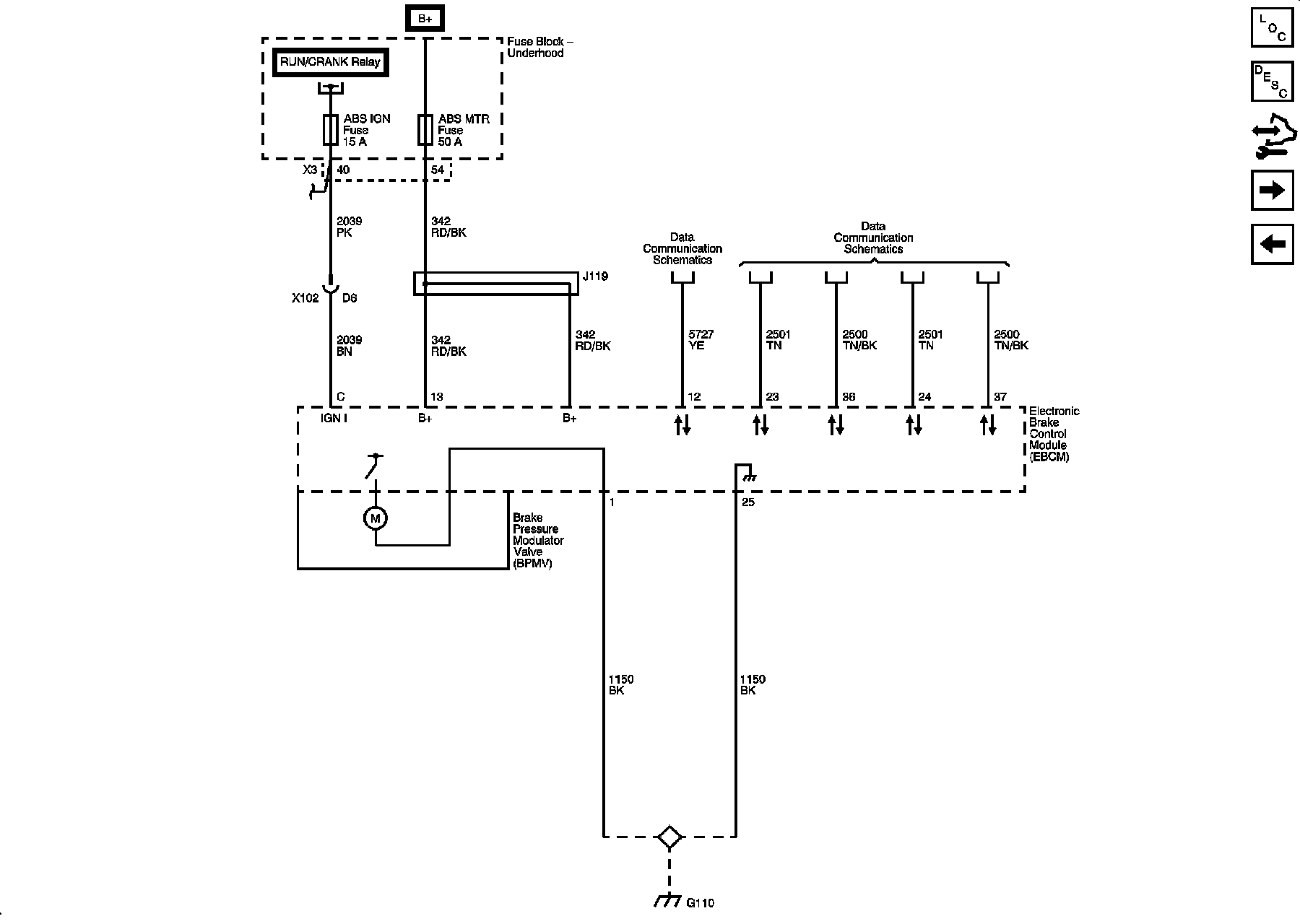

EBCM Power, Ground, and DLC

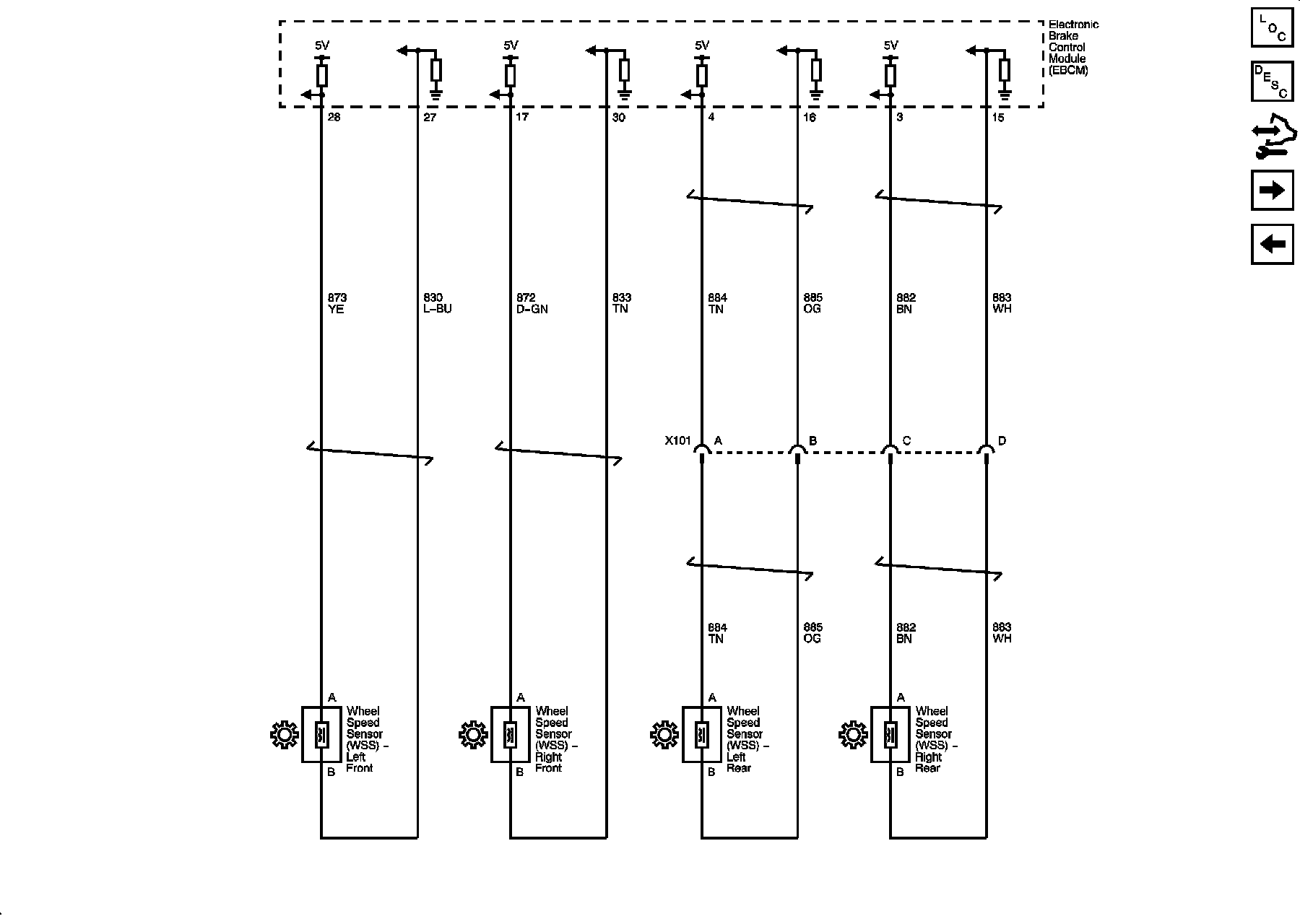

Wheel Speed Sensors





Traction Control
