System Diagram
Component Connector End Views

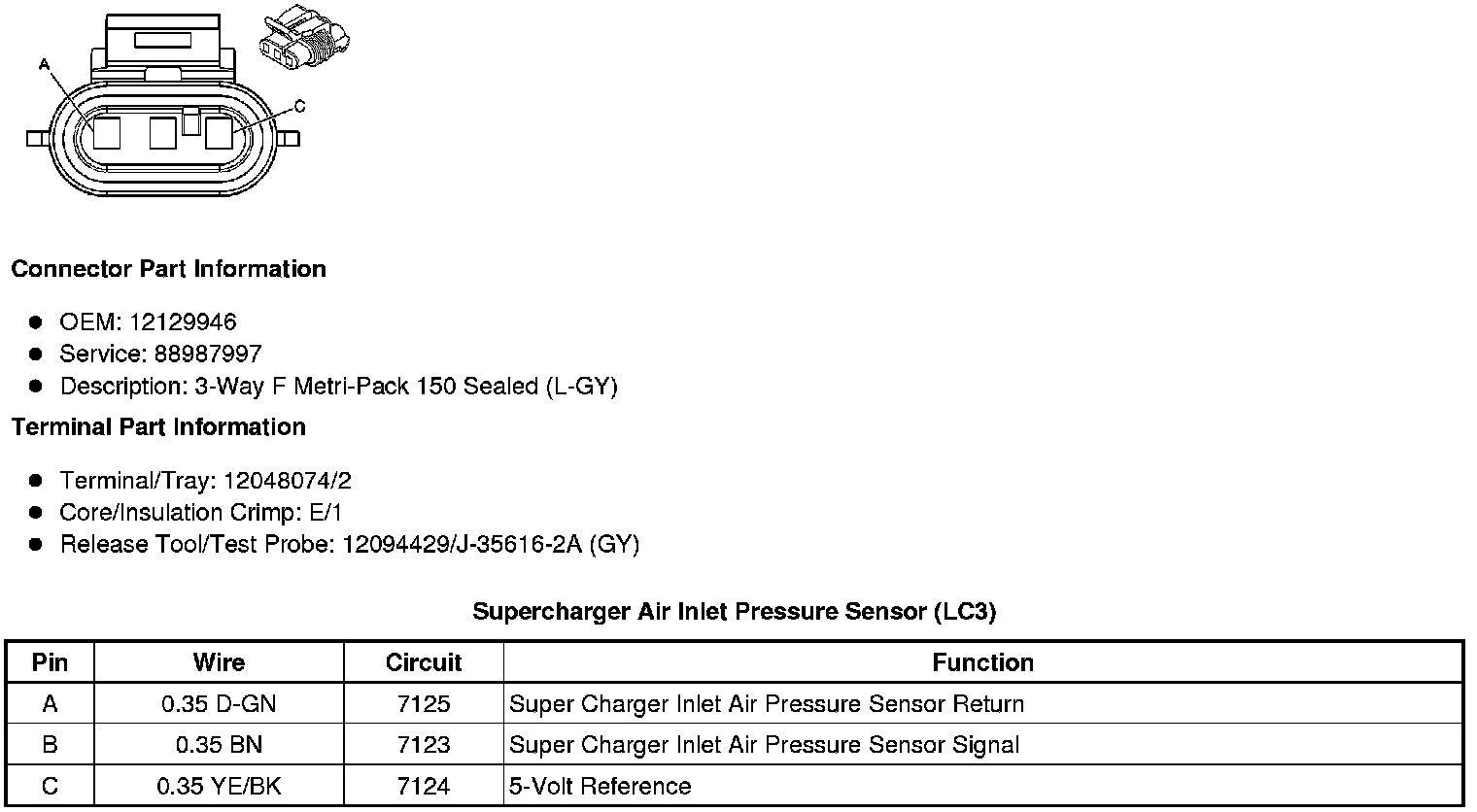

Supercharger Air Inlet Pressure Sensor (LC3 - 8 Cyl, 4.4L, MFI, V8, SC, ALUM, DOHC)

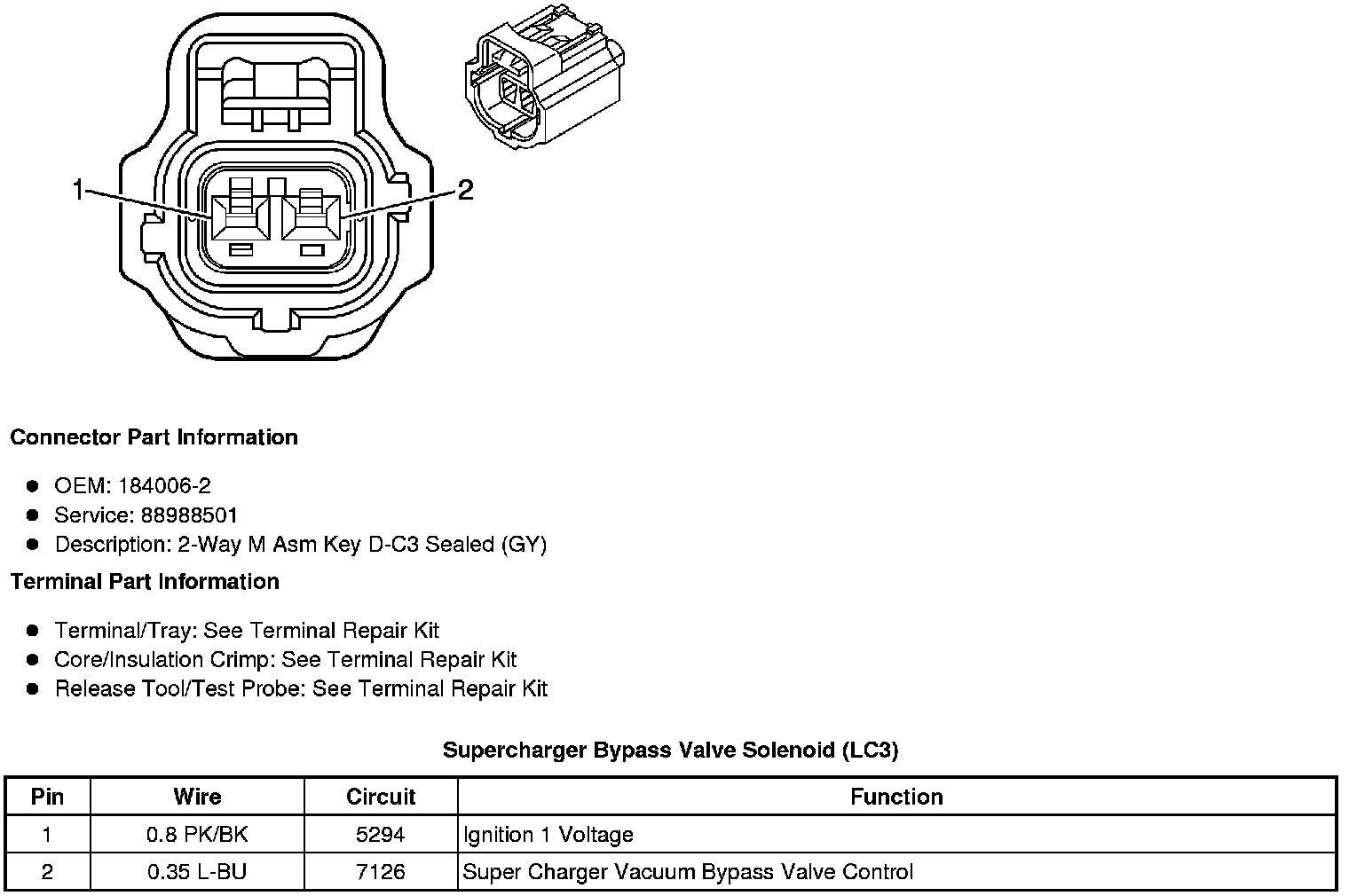

Supercharger Bypass Valve Solenoid (LC3 - 8 Cyl, 4.4L, MFI, V8, SC, ALUM, DOHC)
Component Connector End Views
Supercharger Air Inlet Pressure Sensor (LC3 - 8 Cyl, 4.4L, MFI, V8, SC, ALUM, DOHC)
Supercharger Bypass Valve Solenoid (LC3 - 8 Cyl, 4.4L, MFI, V8, SC, ALUM, DOHC)
