Parking Assist Warning Indicator: Service and Repair

Information Center Telltale Assembly Replacement

Removal Procedure

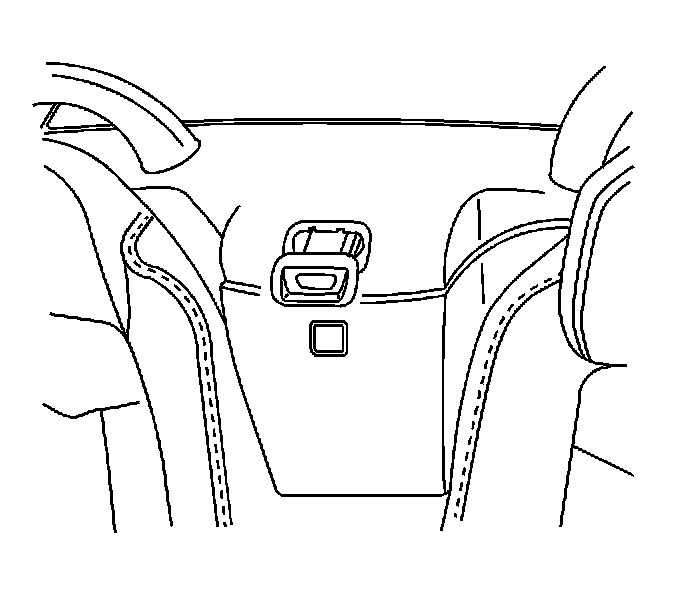

1. Use a flat-bladed tool to remove the bezel and the telltale from the rear window trim panel.




2. Remove the bezel from the telltale.
3. Disconnect the electrical connector.
4. Remove the telltale.



Installation Procedure





1. Connect the electrical connector to the telltale.
2. Install the bezel to the telltale.




3. Install the bezel and the telltale to the rear window trim panel.
