Tail Lamp: Diagrams



Component Connector End Views

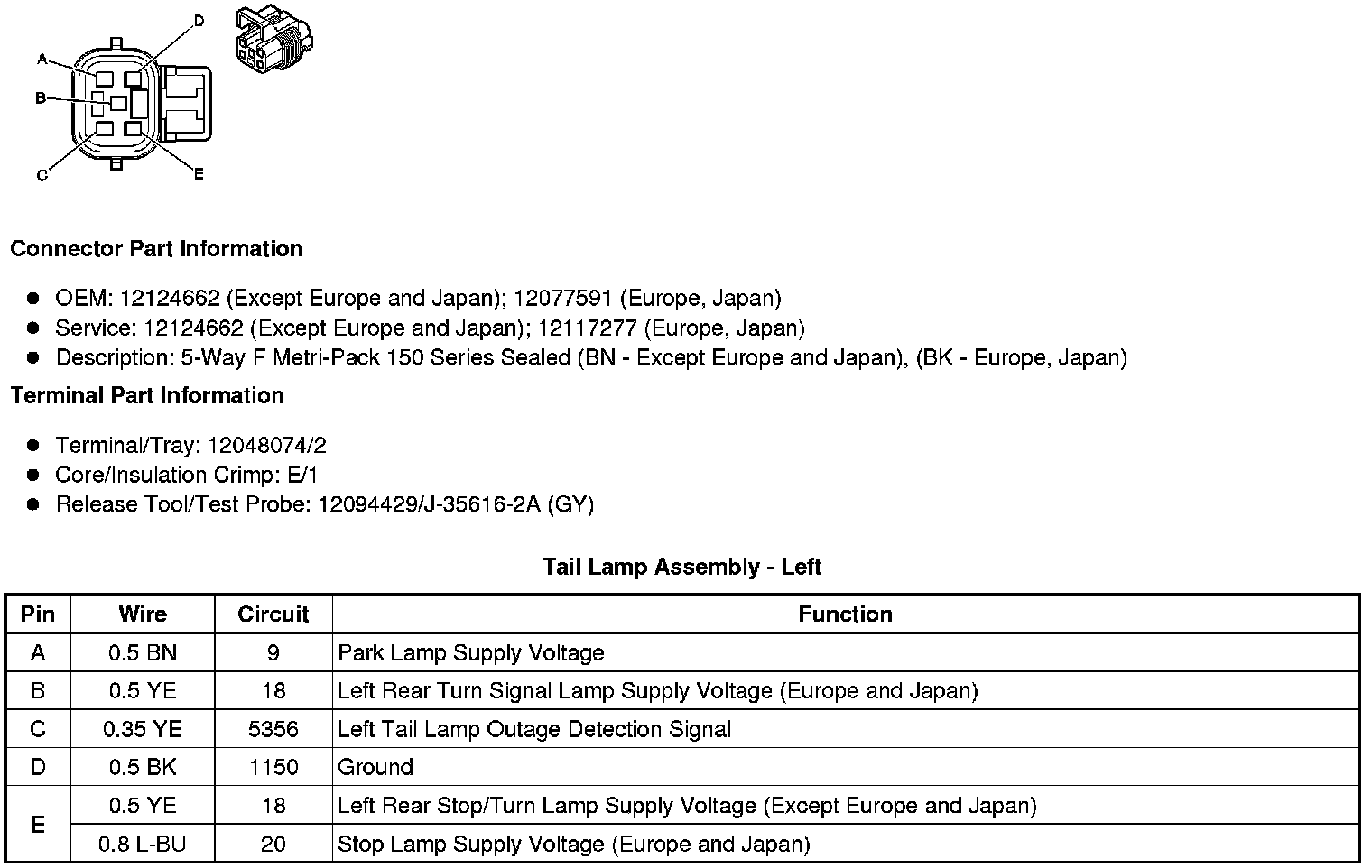

Tail Lamp Assembly - Left






Tail Lamp Assembly - Right
