Fuel Tank Unit
Fuel Tank Unit

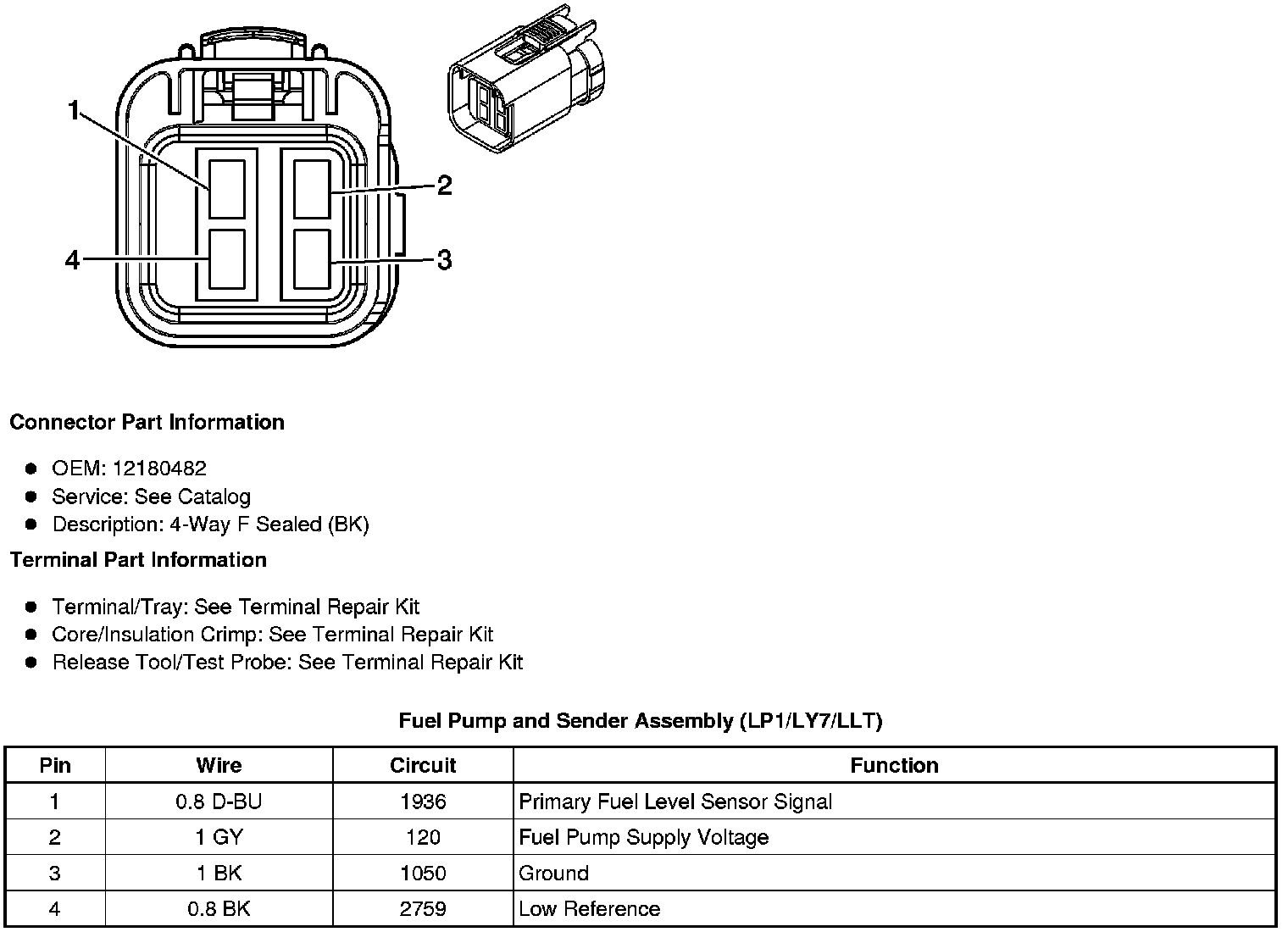

Component Connector End Views
Fuel Pump and Sender Assembly (LP1/LY7/LLT)
