Engine Grounds
Engine Grounds
Harness Routing Views

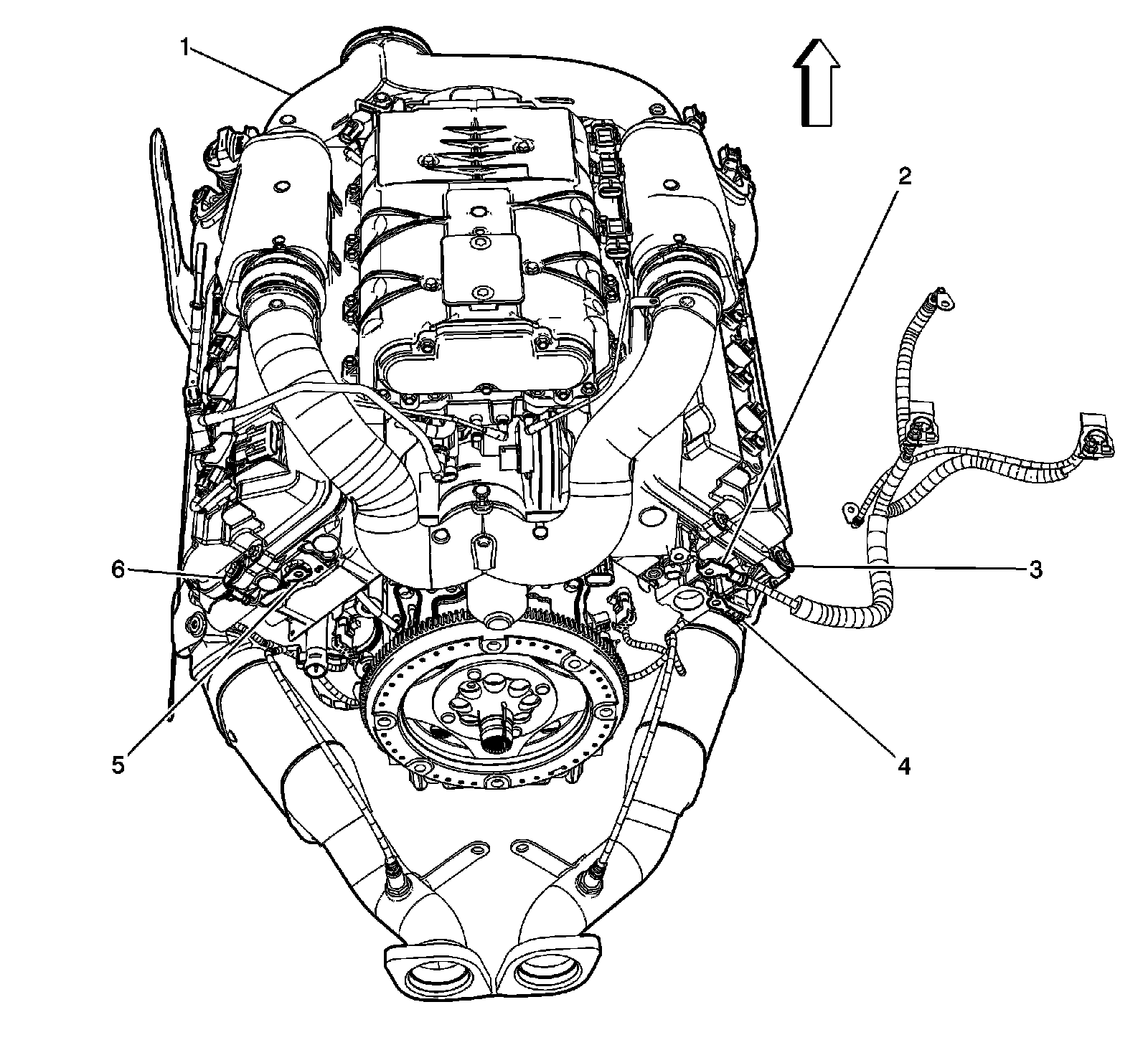

Engine Grounds
1
- Engine Assembly
2
- G107
3
- G112 (LC3)
4
- G111 (LC3)
5
- G110 (LC3)
6
- G109 (LC3)
