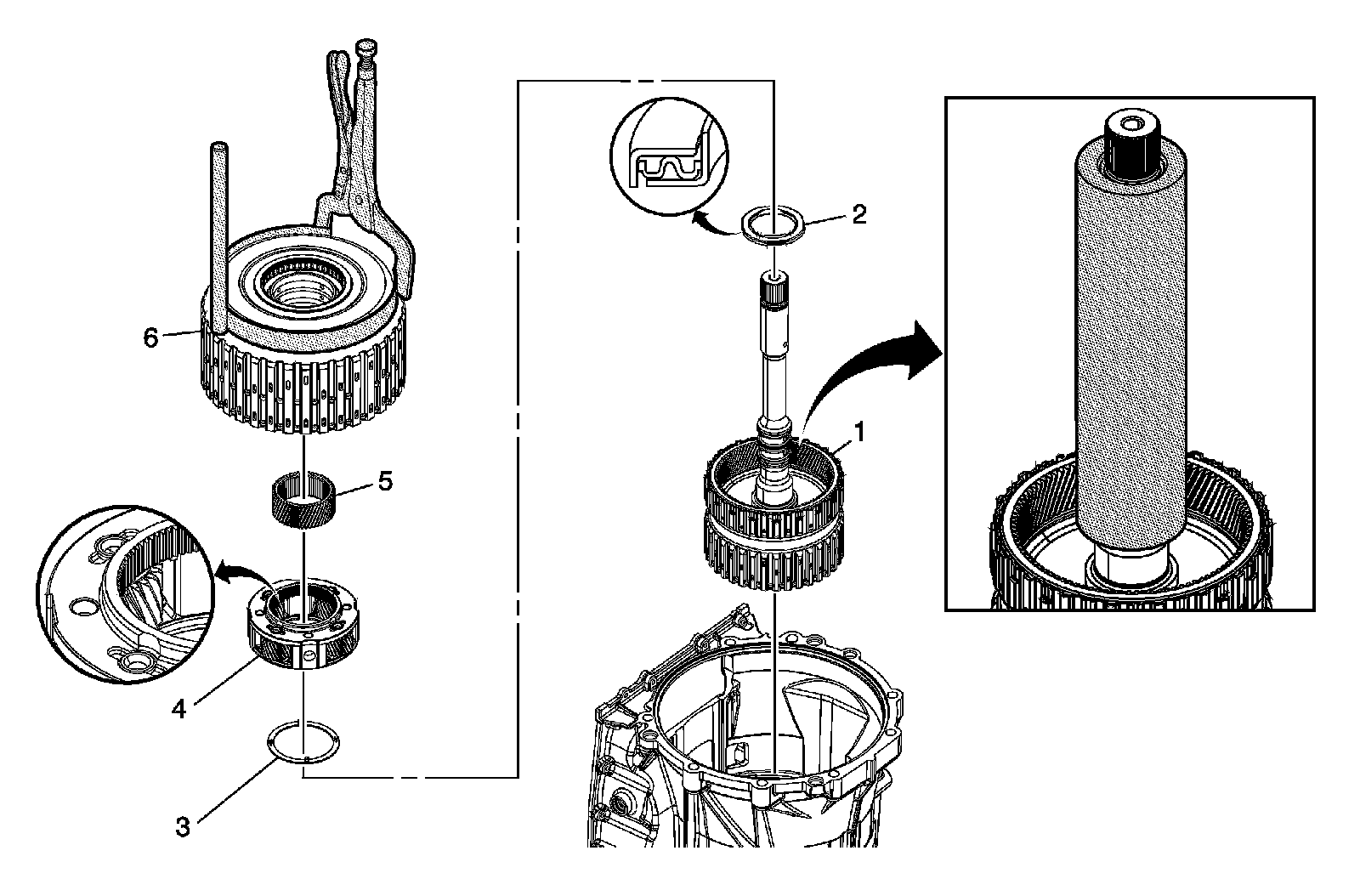

73. 1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Installation (6L45/6L50)




1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Installation (6L45/6L50)
