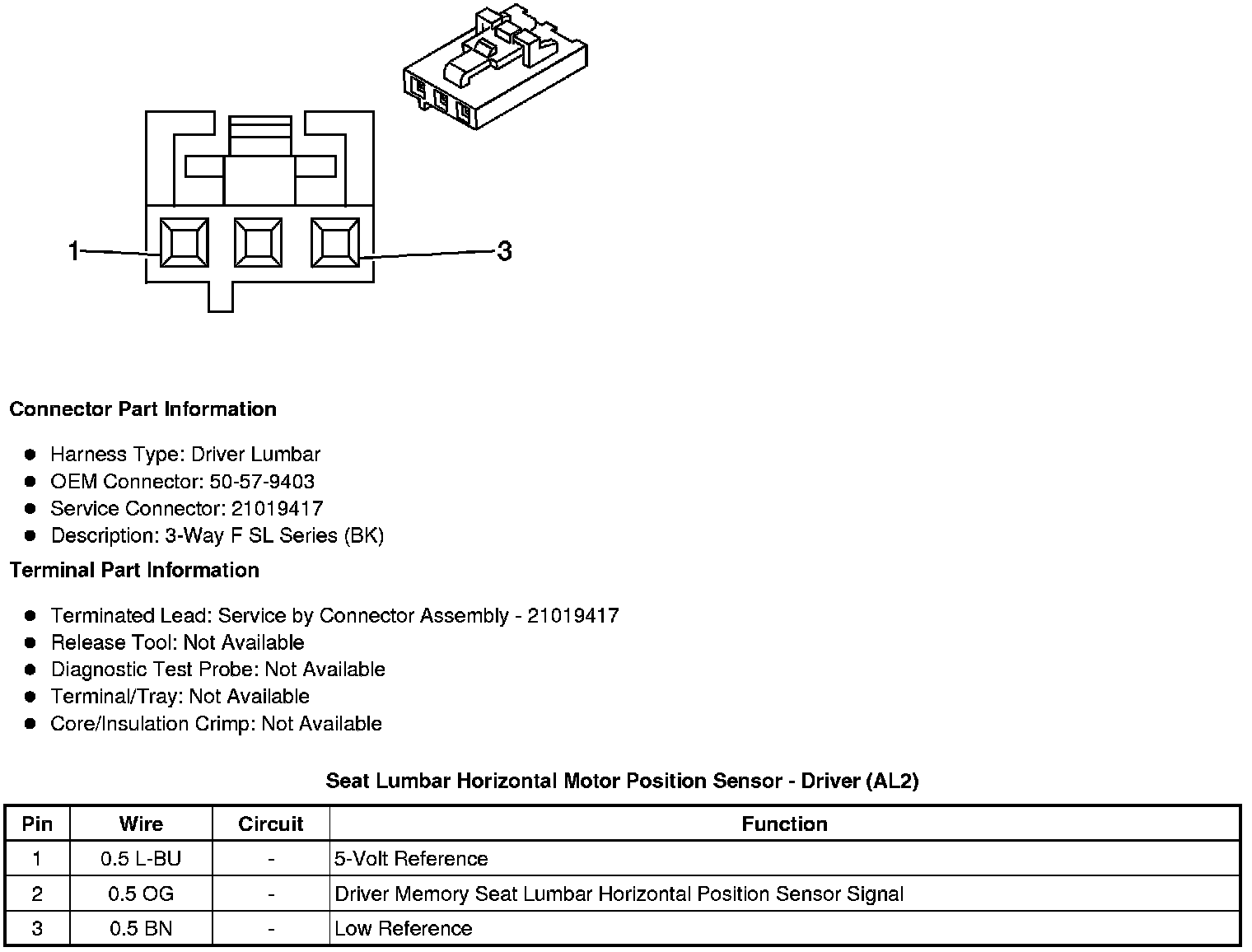

Seat Lumbar Horizontal Motor Position Sensor - Driver (AL2)
Seat Lumbar Horizontal Motor Position Sensor - Driver (AL2)
Component Connector End Views
Seat Lumbar Horizontal Motor Position Sensor - Driver (AL2)
