Rear Seat Components

Passenger Compartment/Roof Component Views

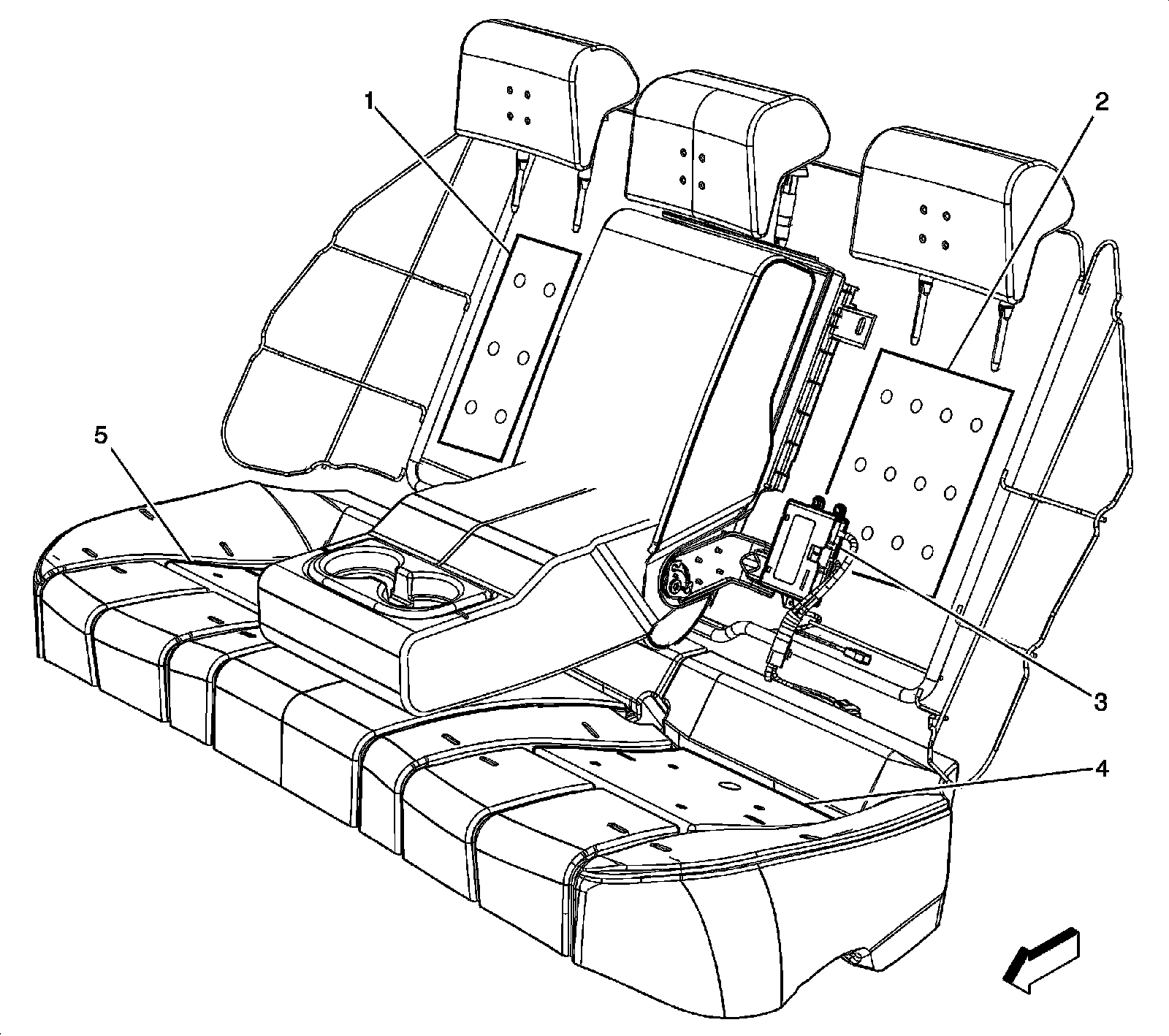

Rear Seat Components




1 - Heated Seat Element - Right Rear Back (w/KA6)
2 - Heated Seat Element - Left Rear Back (w/KA6)
3 - Heated Seat Control Module - Rear (w/KA6)
4 - Heated Seat Element - Left Rear Cushion (w/KA6)
5 - Heated Seat Element - Right Rear Cushion (w/KA6)
