Control Solenoid Valve Assembly




Component Connector End Views

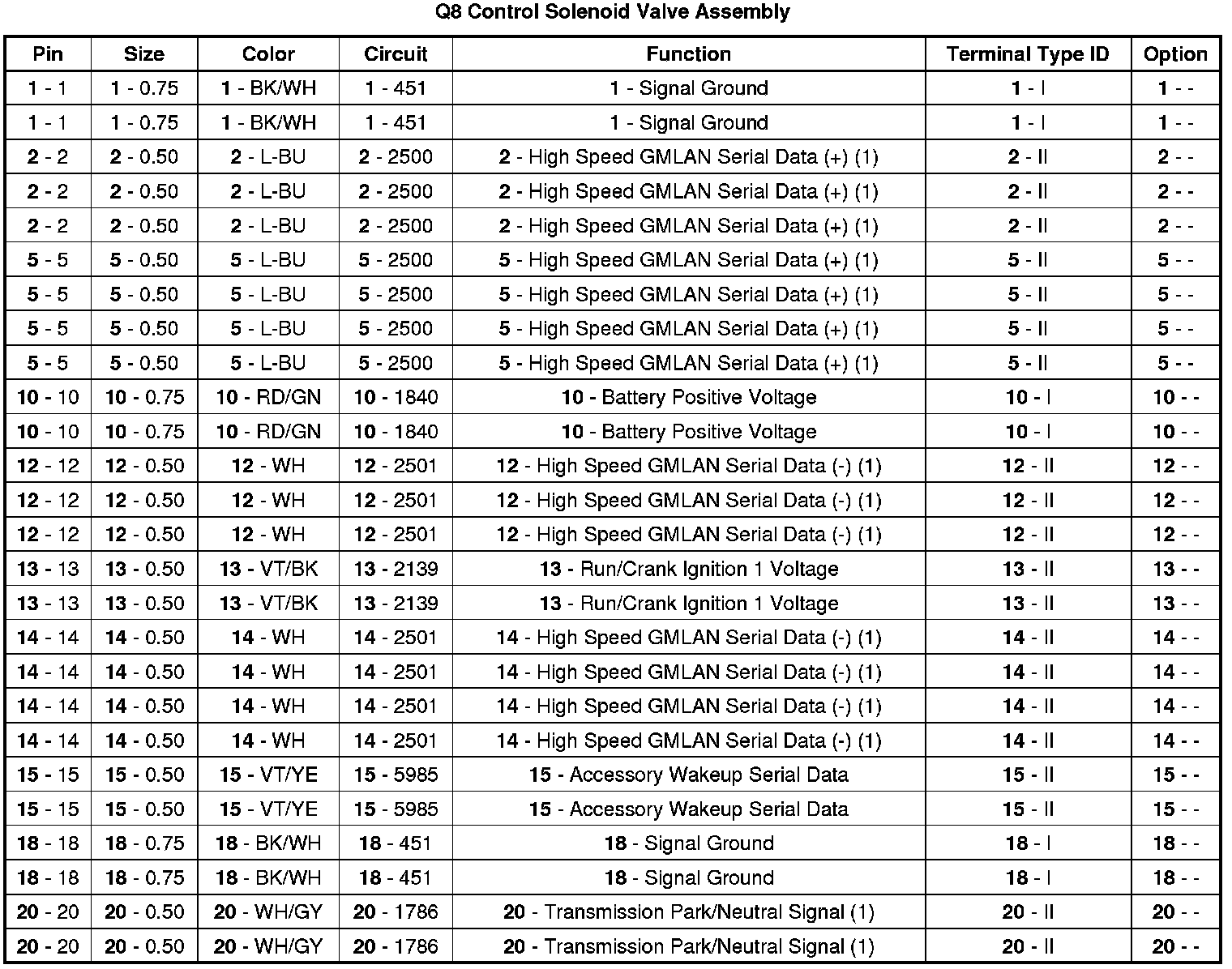

Q8 Control Solenoid Valve Assembly
