Body Harness Routing - Left Side of the Luggage Compartment (-BQ9/V4U)

Harness Routing Views

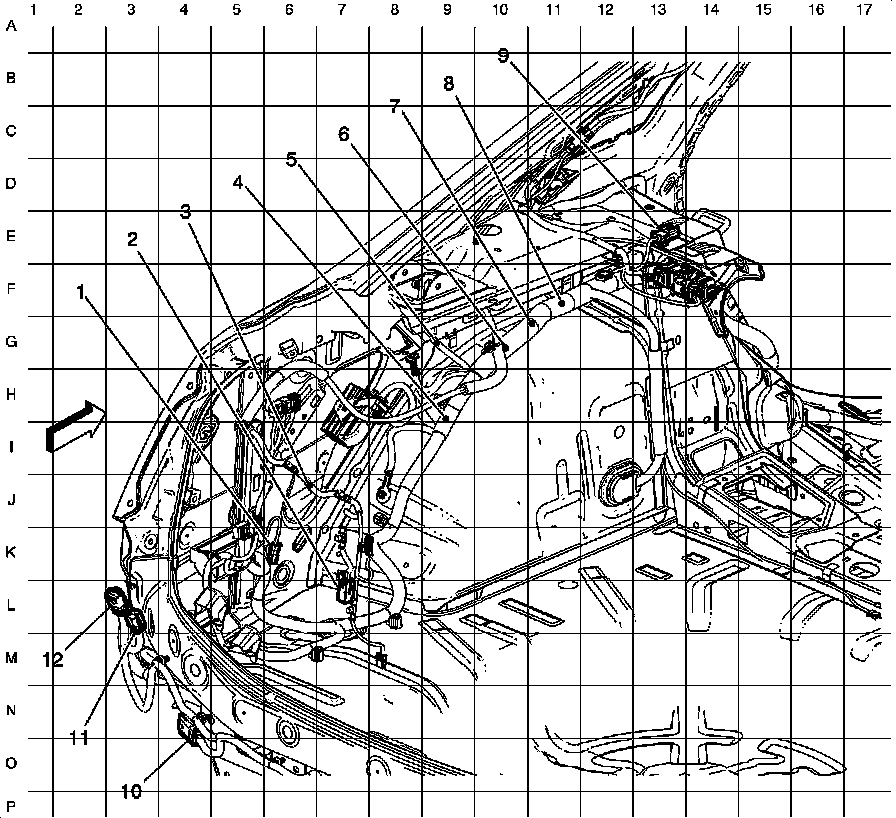

Body Harness Routing - Left Side of the Luggage Compartment (-BQ9/V4U)





1 - X910

2 - X411

3 - J470

4 - J410

5 - J475

6 - J345

7 - J326

8 - J346

9 - X398

10 - X404

11 - X409

12 - X412
