Home >> Chevrolet >> 1982 >> Camaro L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals

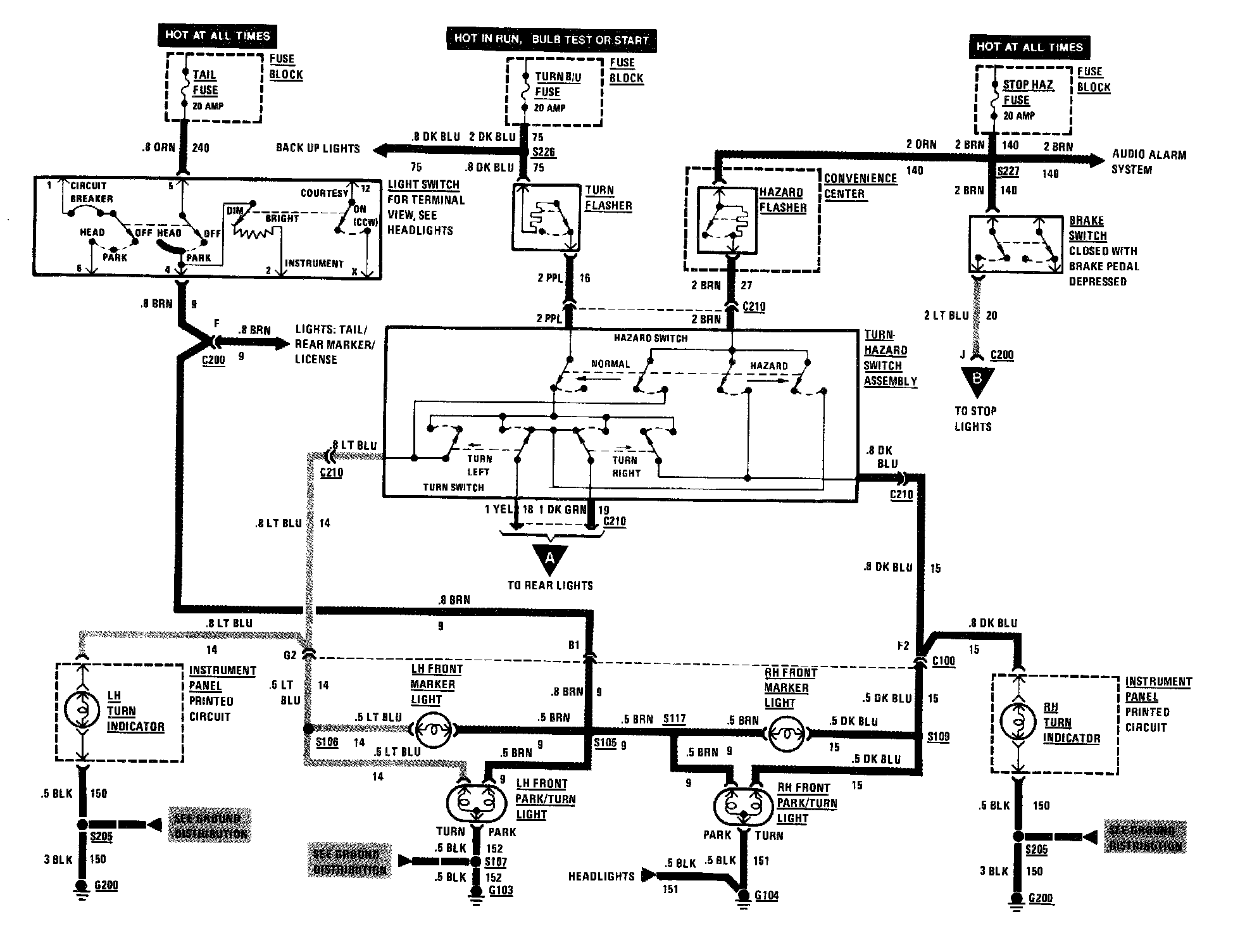

Turn Signals



A & B:
