Home >> Chevrolet >> 1982 >> Caprice V8-267 4.4L VIN J 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Front Turn/Hazard/Park/ Marker

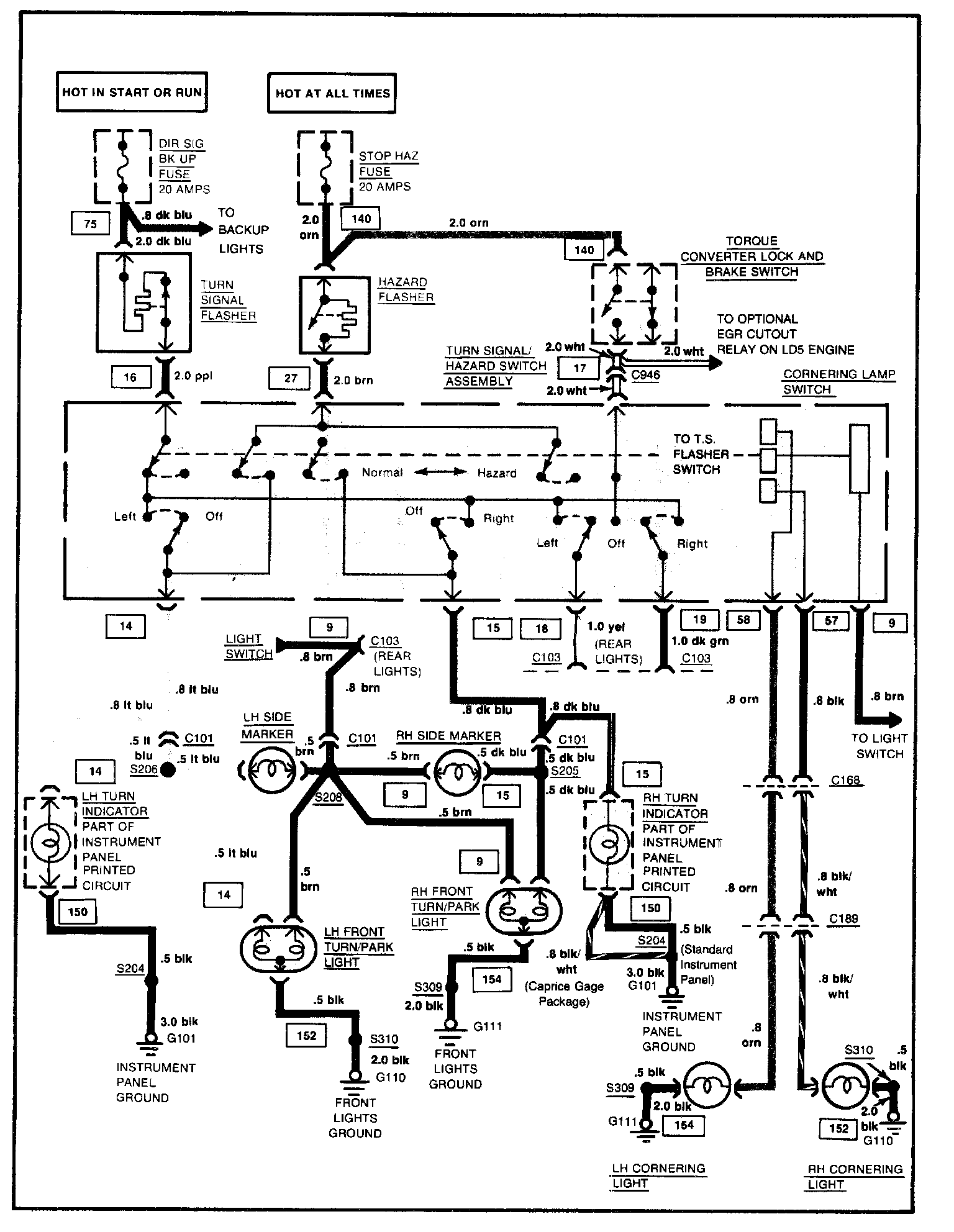

Front Turn/Hazard/Park/ Marker
