Home >> Chevrolet >> 1982 >> Chevette L4-111 1.8L DSL >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams

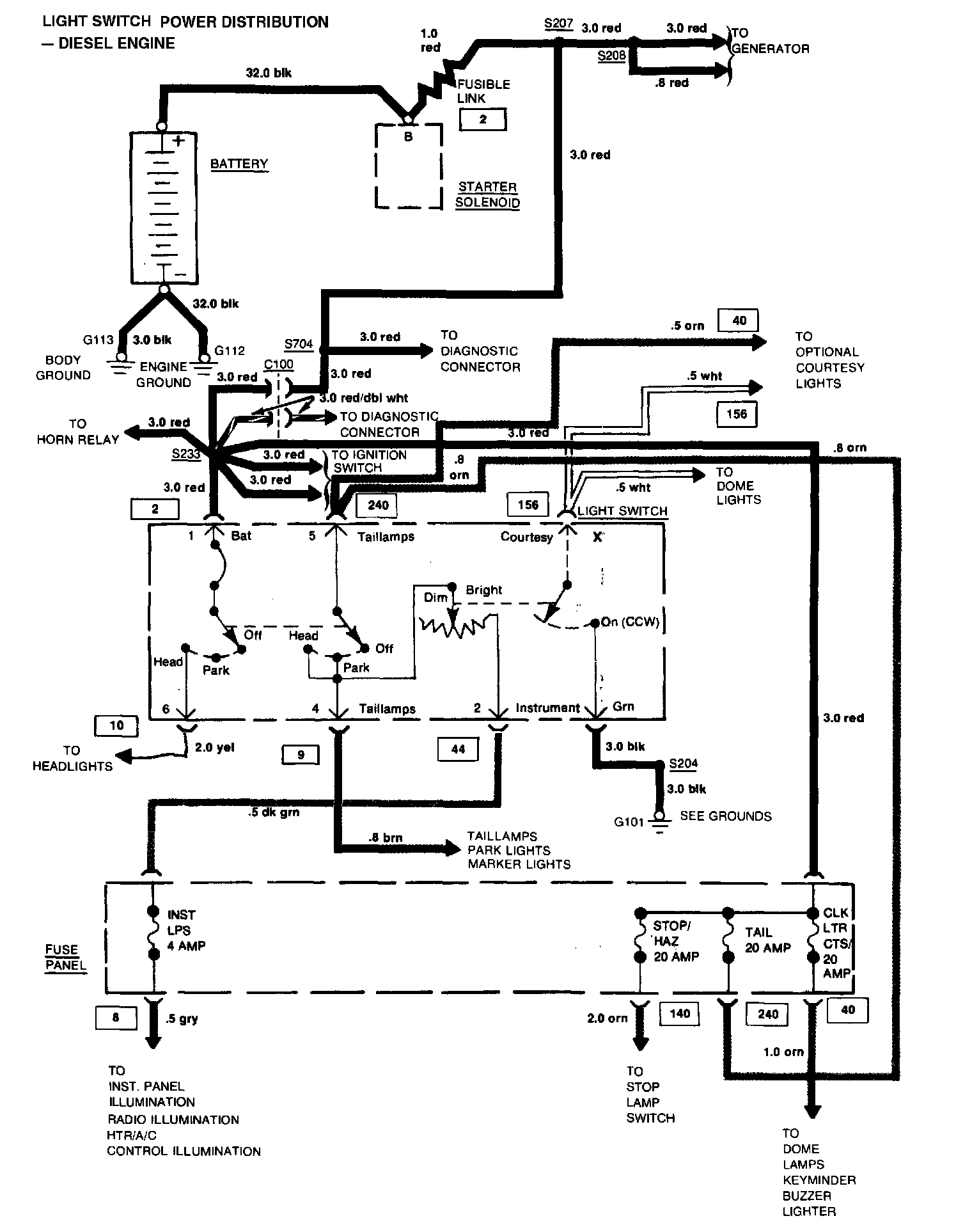

Power and Ground Distribution: Diagrams
