System Specifications

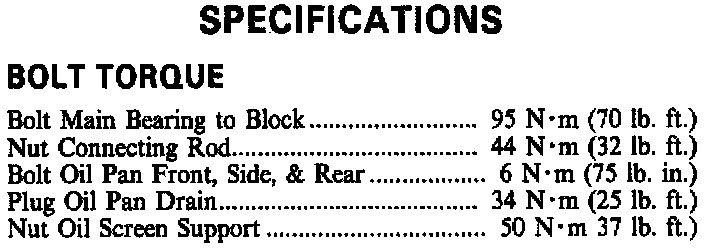

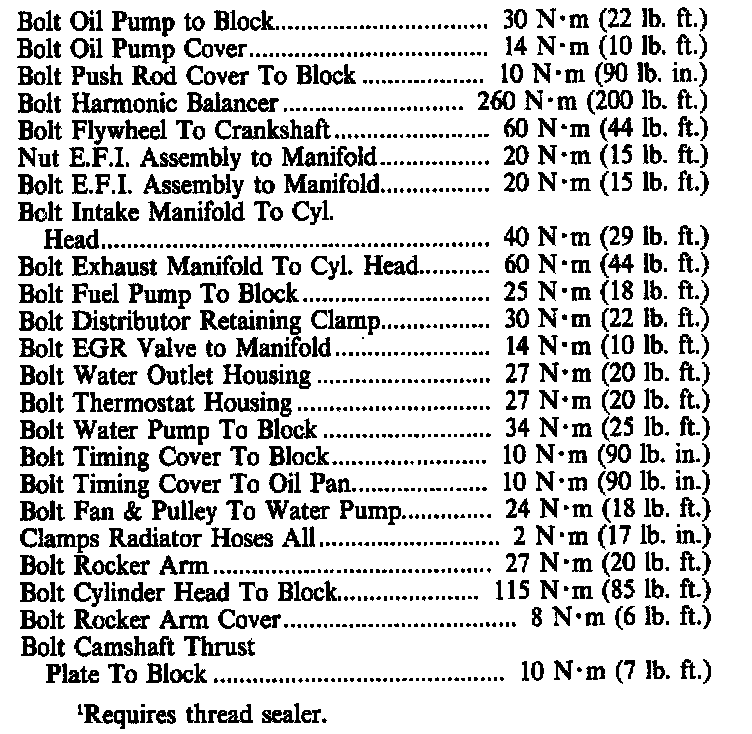

Torque Specifications:




Torque Specifications:





Engine Specifications:




Engine Specifications:

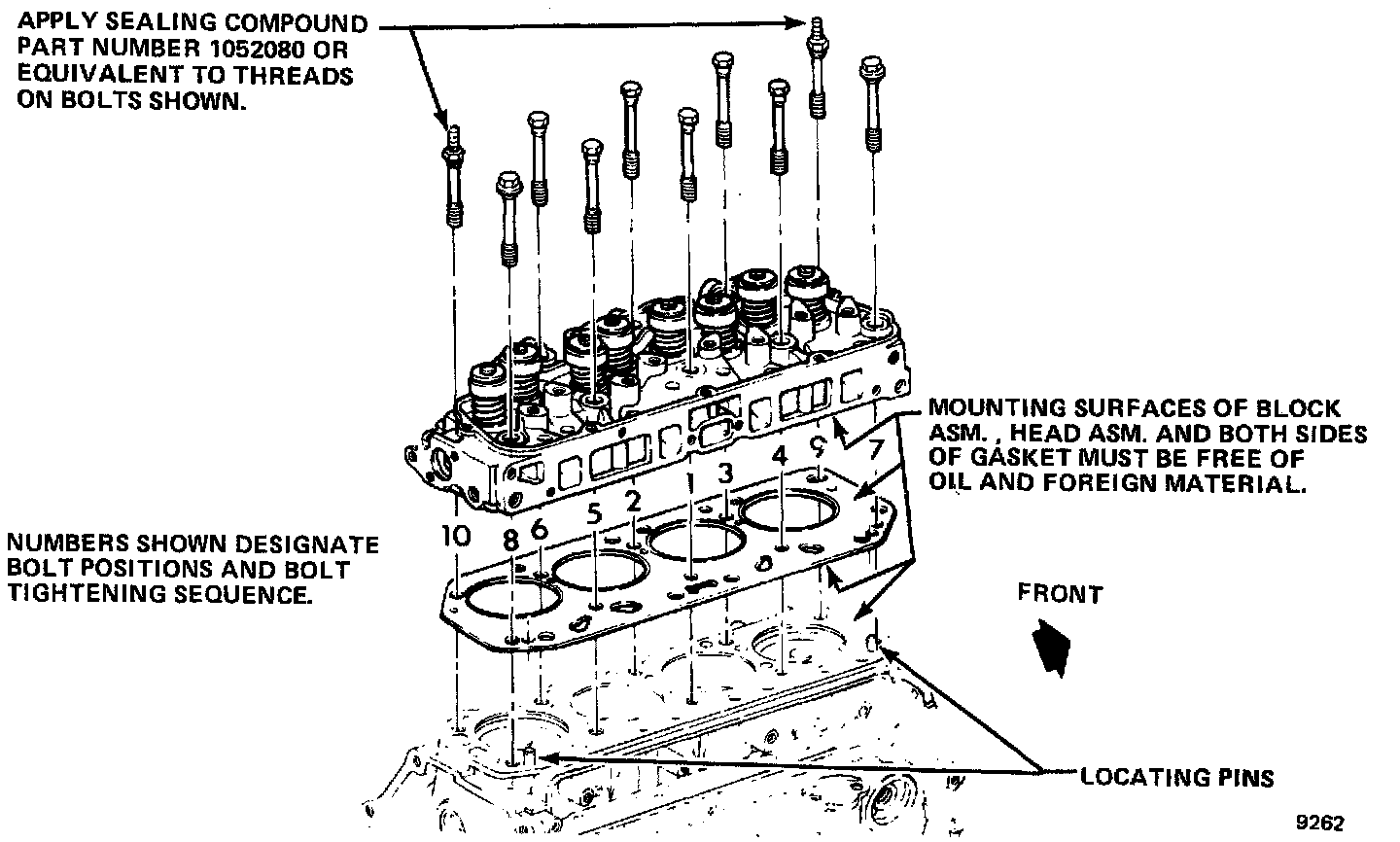

Cylinder Head Torque Sequence:





Intake Manifold Torque Sequence:
