Chevrolet
>>
1982
>>
Citation V6-173 2.8L VIN X 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
VIN Z
VIN Z

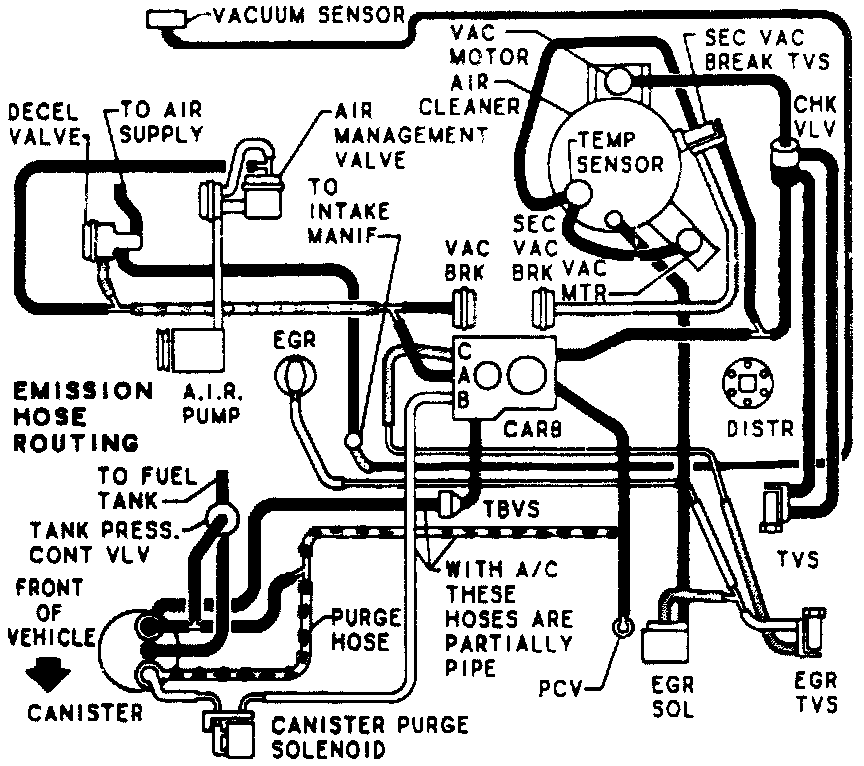

Vacuum Hose Routing:
