Air Control Valve

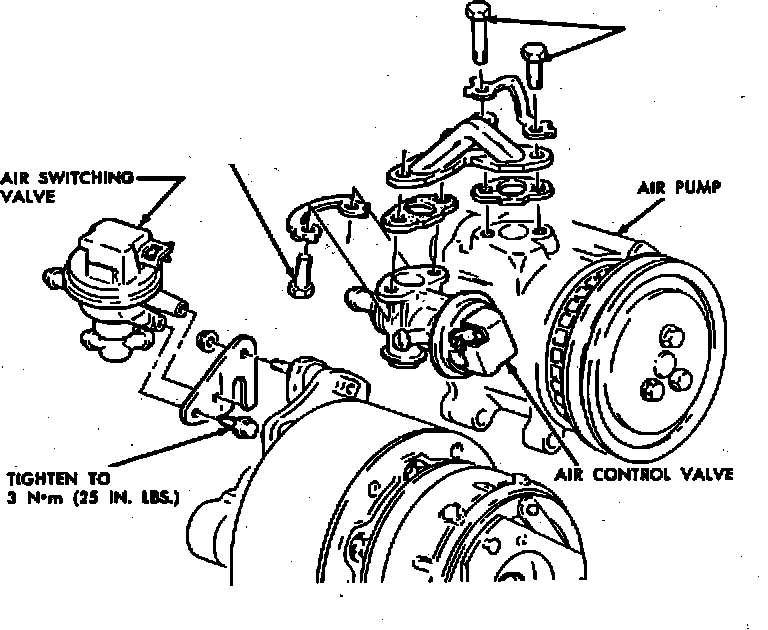

Air Control Valve
Front RH Side Of Engine.:
Mounted Near Air Pump
Applicable to: 1981-82
