Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1982
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>

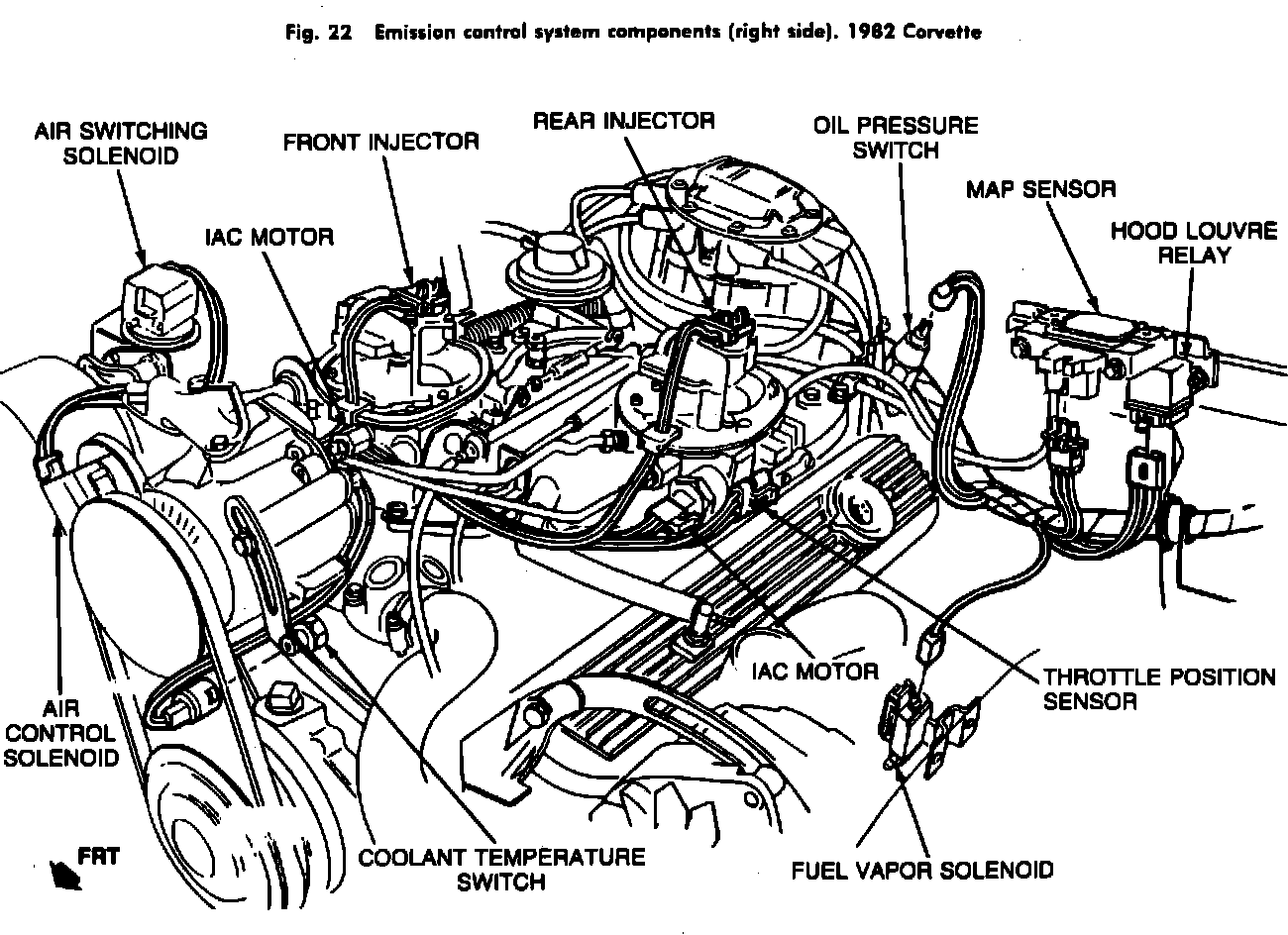

Front Injector
Front Injector
Front LH Side Of Engine.:
Front RH Side Of Engine.:
Top Of Engine.:
Top RH Side Of Engine
Applicable to: 1981-82
