Home
>>
Chevrolet
>>
1982
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>

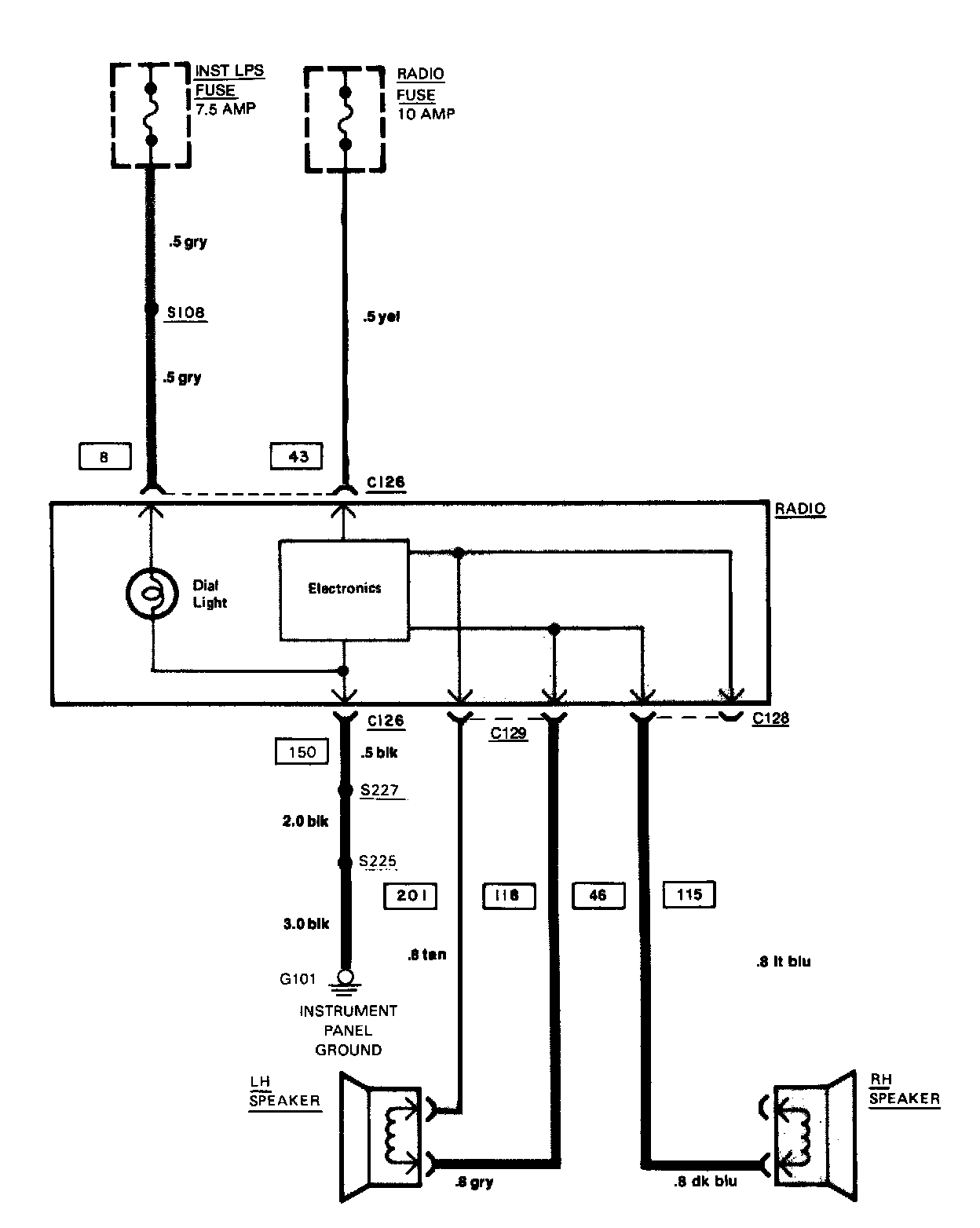

AM/FM Radio (Mono & Stereo) without Rear Speakers
AM/FM Radio (Mono & Stereo) without Rear Speakers
