Home >> Chevrolet >> 1982 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights/Cigar Lighter/Clock

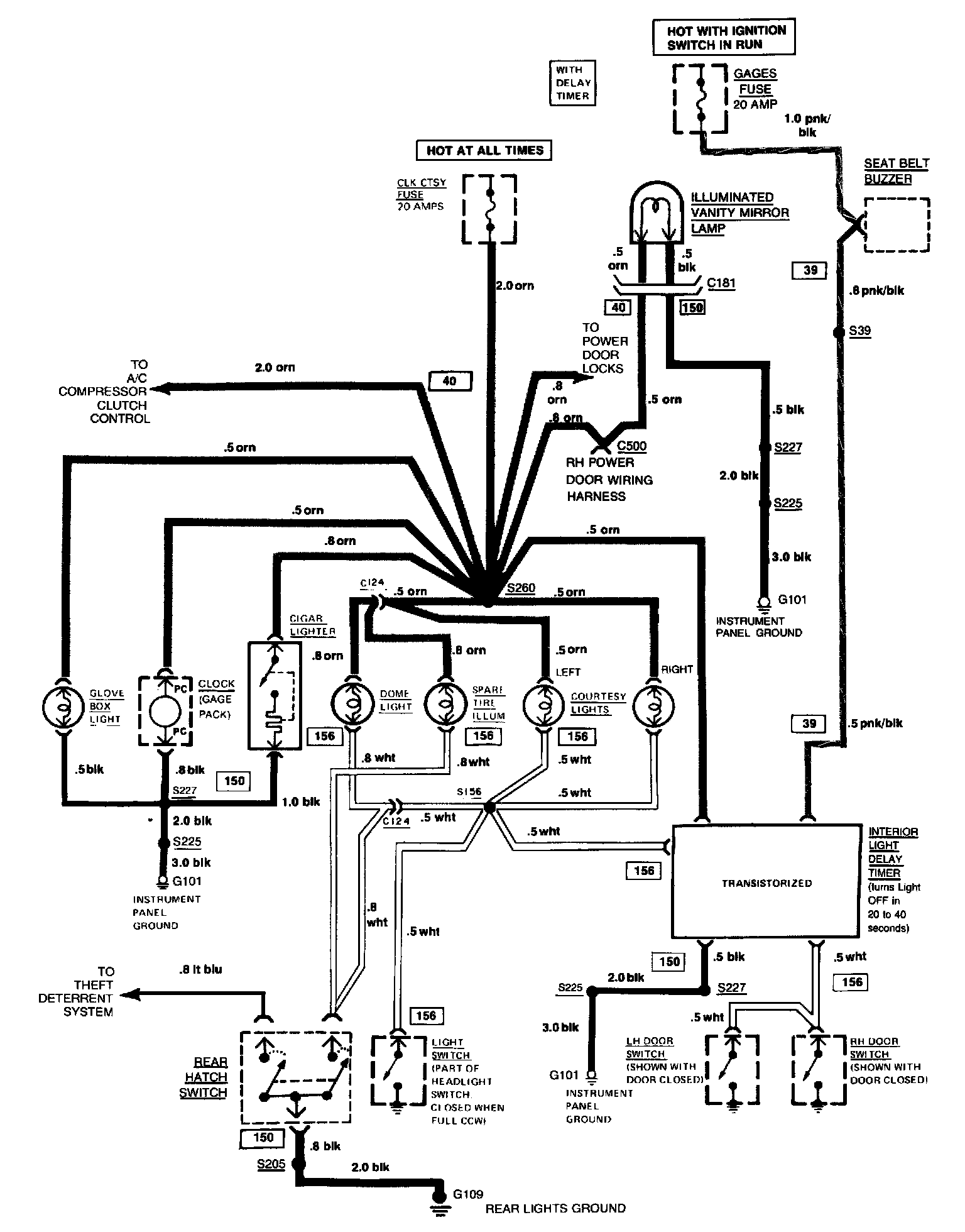

Interior Lights/Cigar Lighter/Clock
