Window Glass: Adjustments



ADJUSTMENTS







NOTE
^ In order to perform any of the adjustments listed below, door trim panel must be removed

Window Tilted

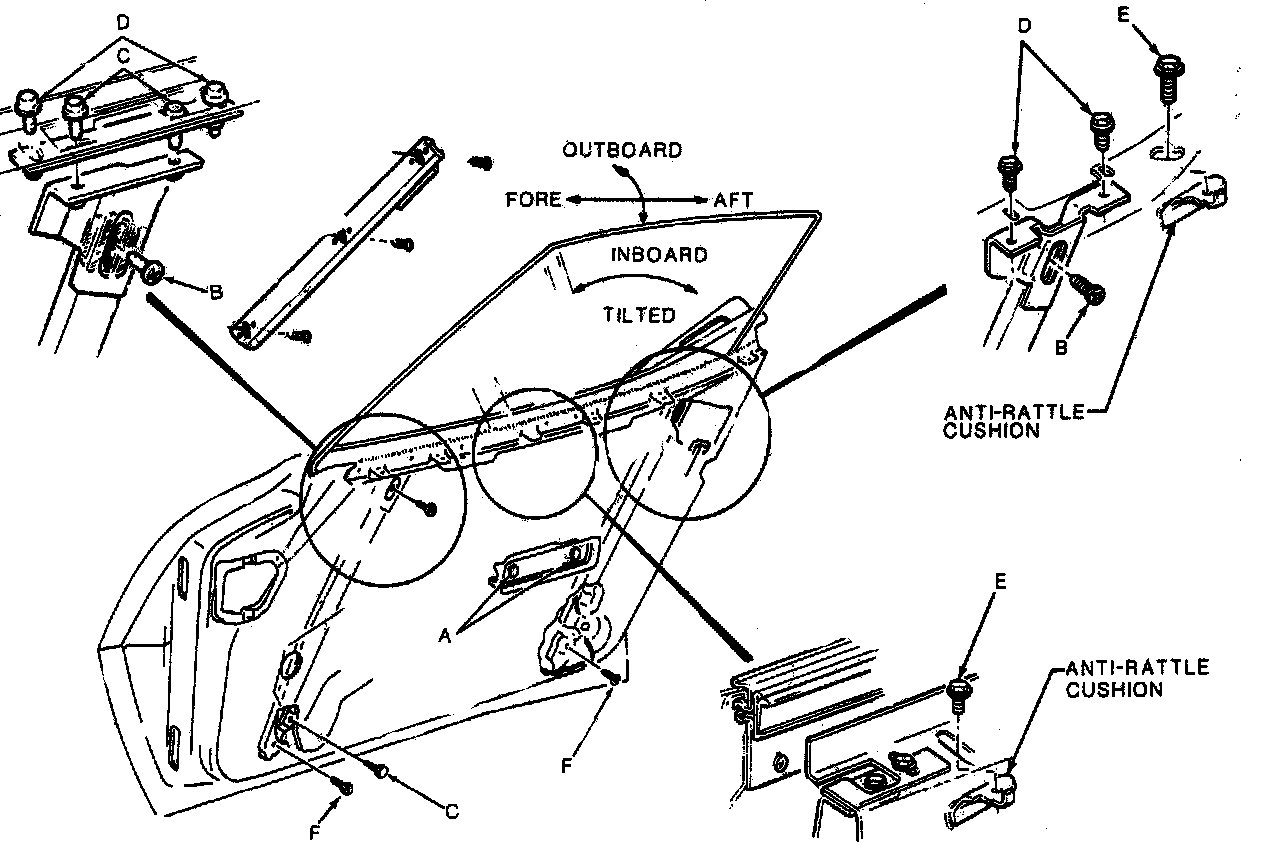

^ Loosen two bolts (A) and adjust by rotating glass until constant distance is gained between front edge of glass and the windshield pillar Retighten bolts.


Rolls Up Too Far

^ loosen front and rear top screws (B). Roll glass up until it properly seats in roof weather strip. Move front and rear stops until they contact Window rollers tighten screws.

Gap Between Window Forward Edge and Windshield Pillar Too Large or Small

^ Loosen three bolts (C). Move glass towards windshield pillar weather strip until it properly seats in the stripping. Retighten bolts (C).

Too Far Outboard or Inboard

^ loosen bolts (D E). Move top edge of glass inboard it is properly seated against roof rail weatherstrip. Tighten bolts (D). Move felt weather strip against window. Tighten bolts (E).

Window Rolls Down Too Far

^ Loosen screw (F) and roll glass down until top edge.. is flush with Outer panel. Move stop to contact window roller. Retighten screw (F).


Glass is Out of Blow-Out Clip with Door Closed

^ Loosen bolt (D). Move channel outboard then tighten and check position. Readjust to optimum position for glass running on weatherstrip.


If a complete door window adjustment is needed fully adjust window by following all the steps given above in the order given.
