Window Glass: Service and Repair

WINDOW GLASS









Removal

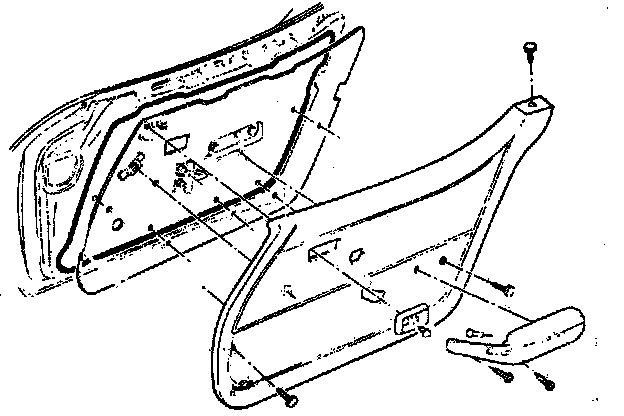

1. Remove door trim panel."Body and Frame/Doors,Hood and Trunk/Door/Door Panel."Doors

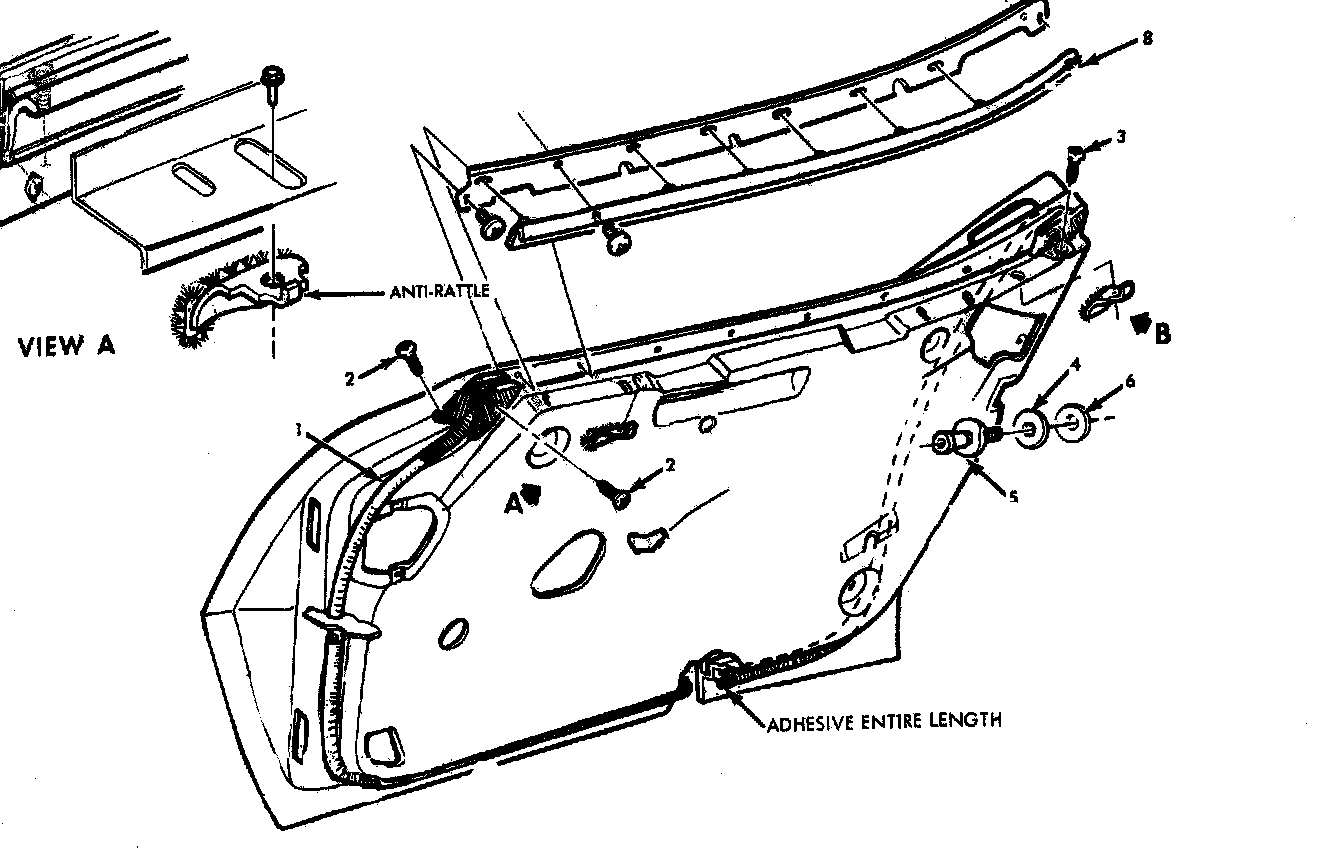

2. Remove window anti-rattle cushions.
3. Position window all the way up to line up two sash screws through access holes.
4. Remove two sash screws on horizontal guide channel while holding nuts with other hand
5. Disengage stop by removing screws at top of channel assembly
6. Adjust front and rear channel assemblies to extreme outboard position to allow ample clearance for window removal.
7. Carefully pull window upward making certain to clear roller assemblies through opening in inner door panel.









Installation

^ If replacement glass is necessary, disassemble two pads and fasteners, and frame assembly by removing three mounting bolts through glass. Mount frame assembly and pads onto new glass before installation into door.


The following steps are necessary for installation:

1. Insert glass in door pocket with convex curvature towards outside of vehicle.
2. Install and tighten two sash bolt and nut assemblies through horizontal guide channel and glass frame.
3. Adjust front and rear guide channels to proper in and out position
4. Install window anti-rattle cushions and door trim panel.
