Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1983
>>
Camaro L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Headlamp
Headlamp

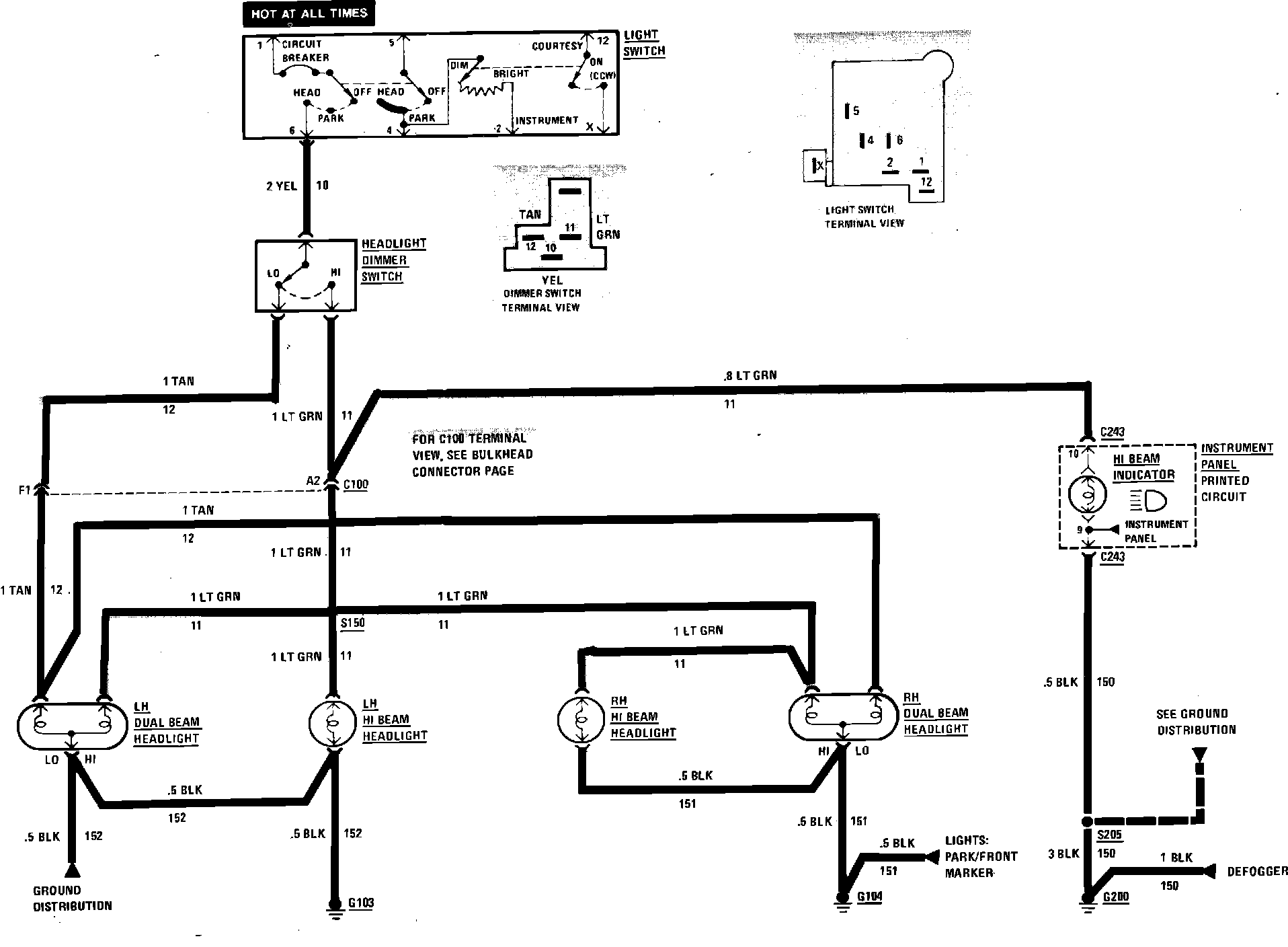

Headlamp Wiring Circuit. 1983 Camaro & 1984 Camaro Sport Coupe:
