Radio & Speaker (Mono)

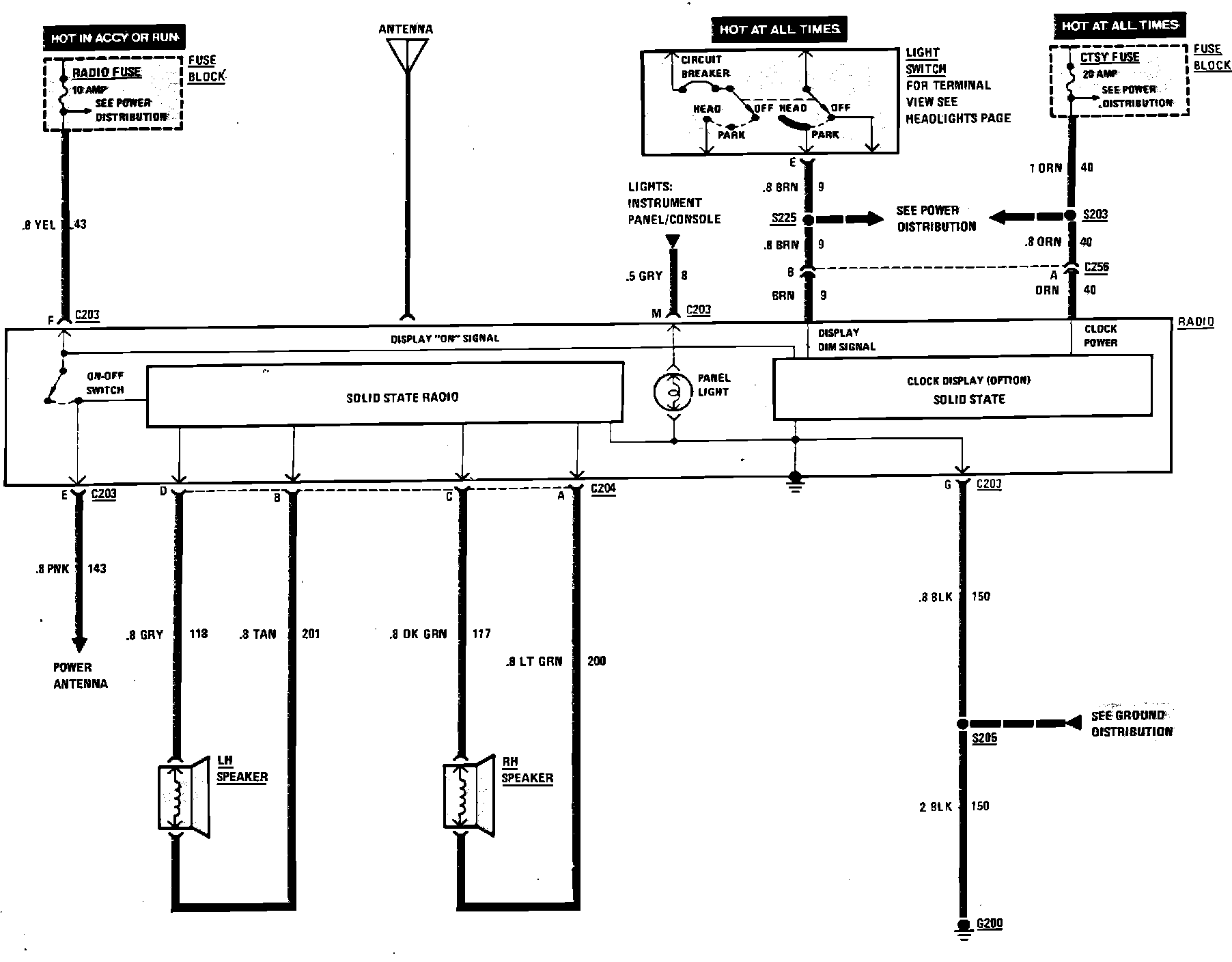

Radio (Mono) & Speaker Wiring Circuit. 1983 Camaro & 1984 Camaro Sport Coupe:



Radio (Mono) & Speaker Wiring Circuit:
