83 Camaro W/PWR Wind &/or PWR DR Locks & 84 Camaro Sport Coupe
83 Camaro W/PWR Wind &/or PWR DR Locks & 84 Camaro Sport Coupe

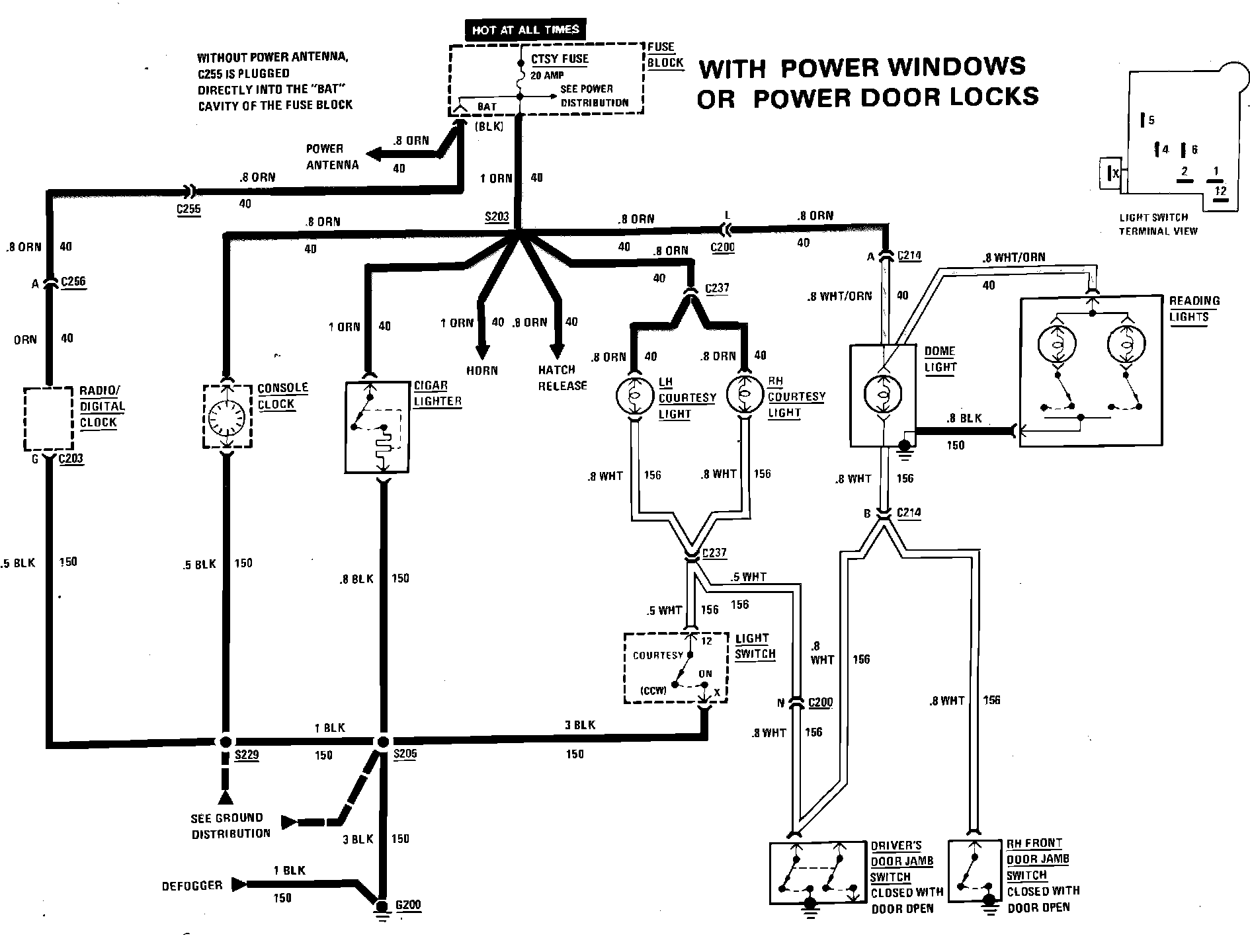

Cigar Lighter, Clock & Interior Lighting Wiring Circuit:
