Chevrolet
>>
1983
>>
Camaro V8-305 5.0L VIN H 4-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
Without Cross Fire Injection
Without Cross Fire Injection

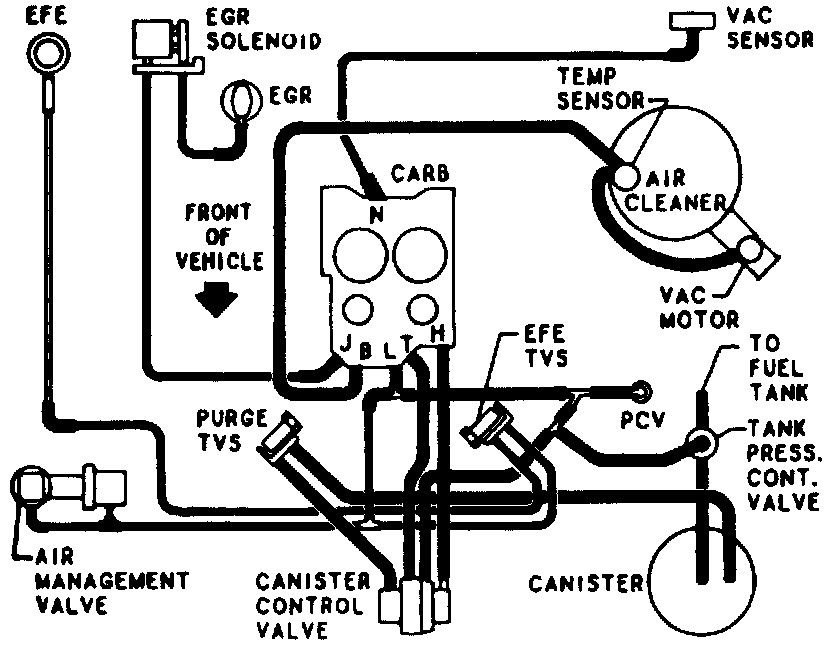

Vacuum Hose Routing:
