Idle Speed Control & Vehicle Data Sensors
Idle Speed Control & Vehicle Data Sensors

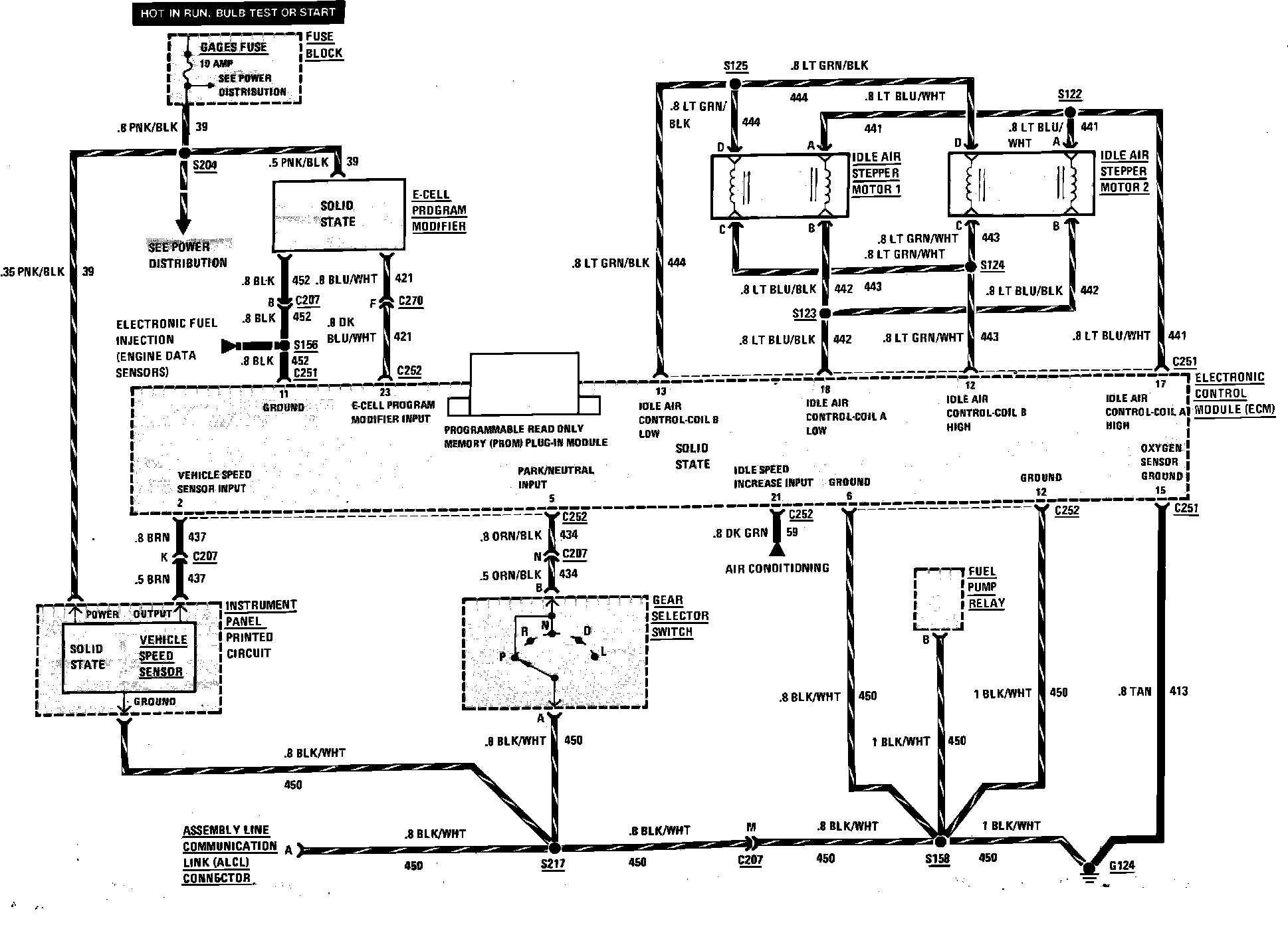

Electronic Fuel Injection (Idle Speed Control & Vehicle Data Sensors). 1983 Models W/V8-305 (V.I.N. S) Engine:
