Instrument Panel, Gauges and Warning Indicators
>>
Headlamp Reminder Indicator
Headlamp Reminder Indicator

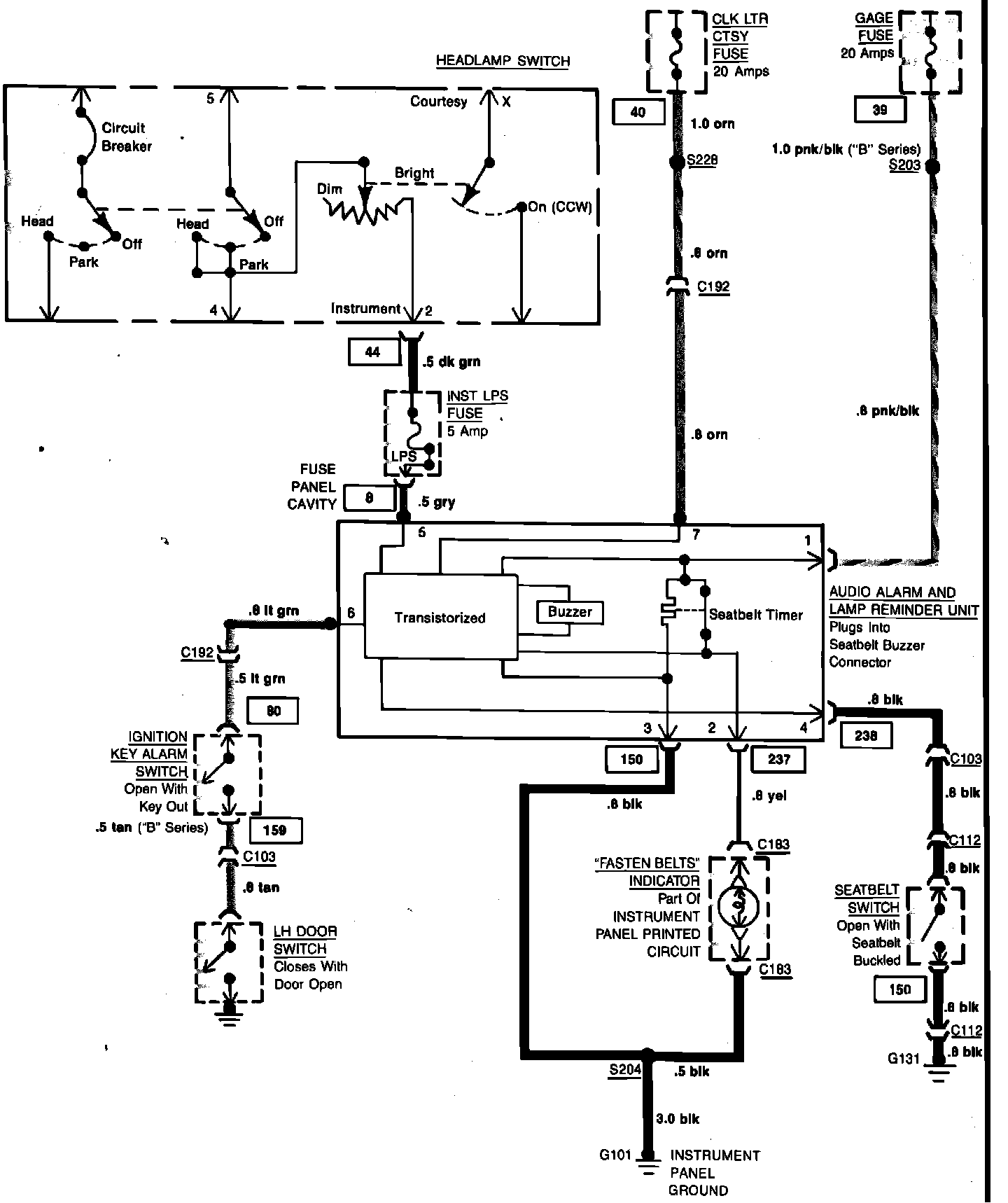

Light Reminder Buzzer Wiring Circuit:
