Home >> Chevrolet >> 1983 >> Caprice V8-305 5.0L VIN H 4-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Stereo Station Wagon

Stereo Station Wagon

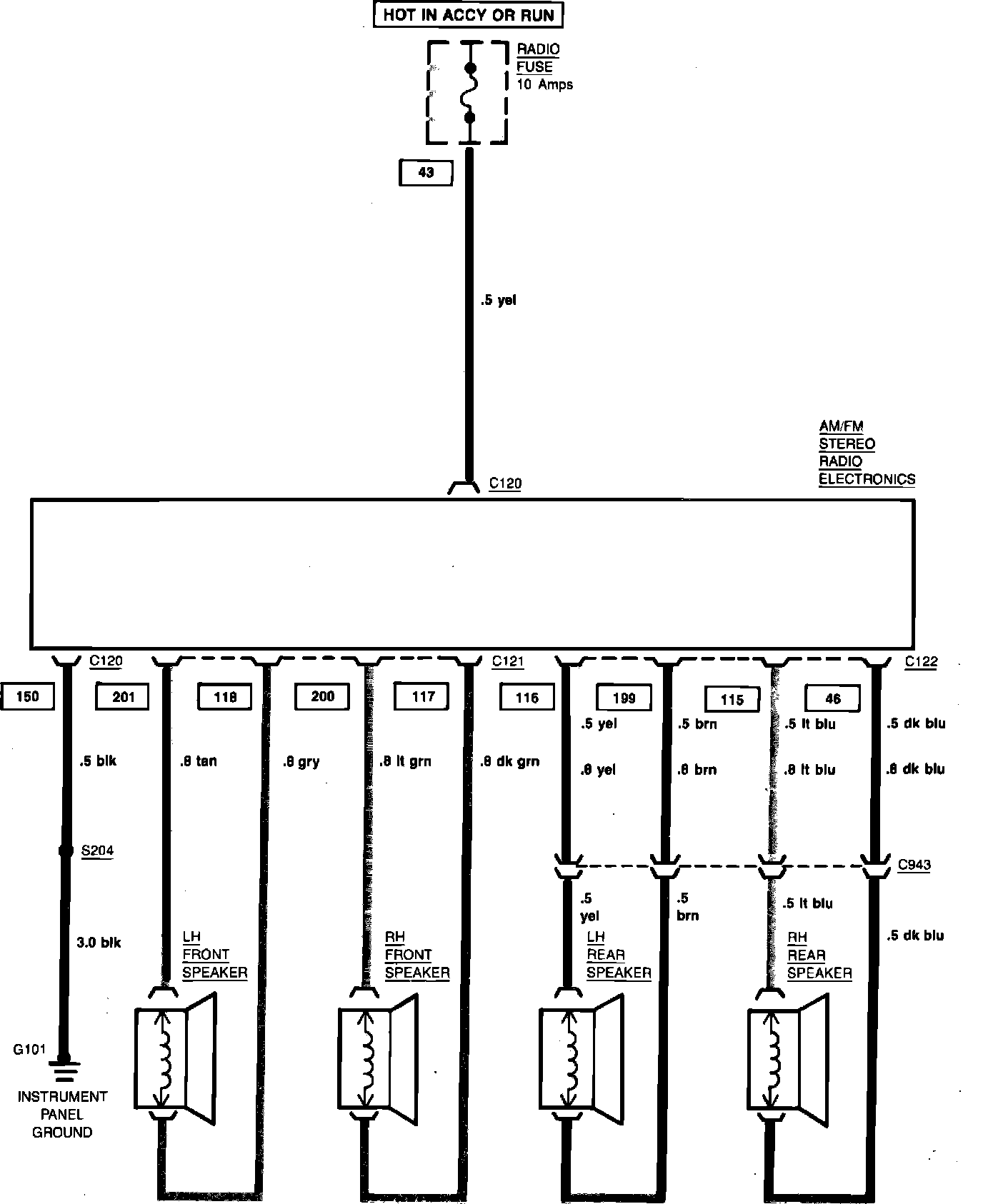

Radio Wiring Circuit (Stereo):
