Home
>>
Chevrolet
>>
1983
>>
Caprice V8-305 5.0L VIN H 4-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Choke Heater
Choke Heater

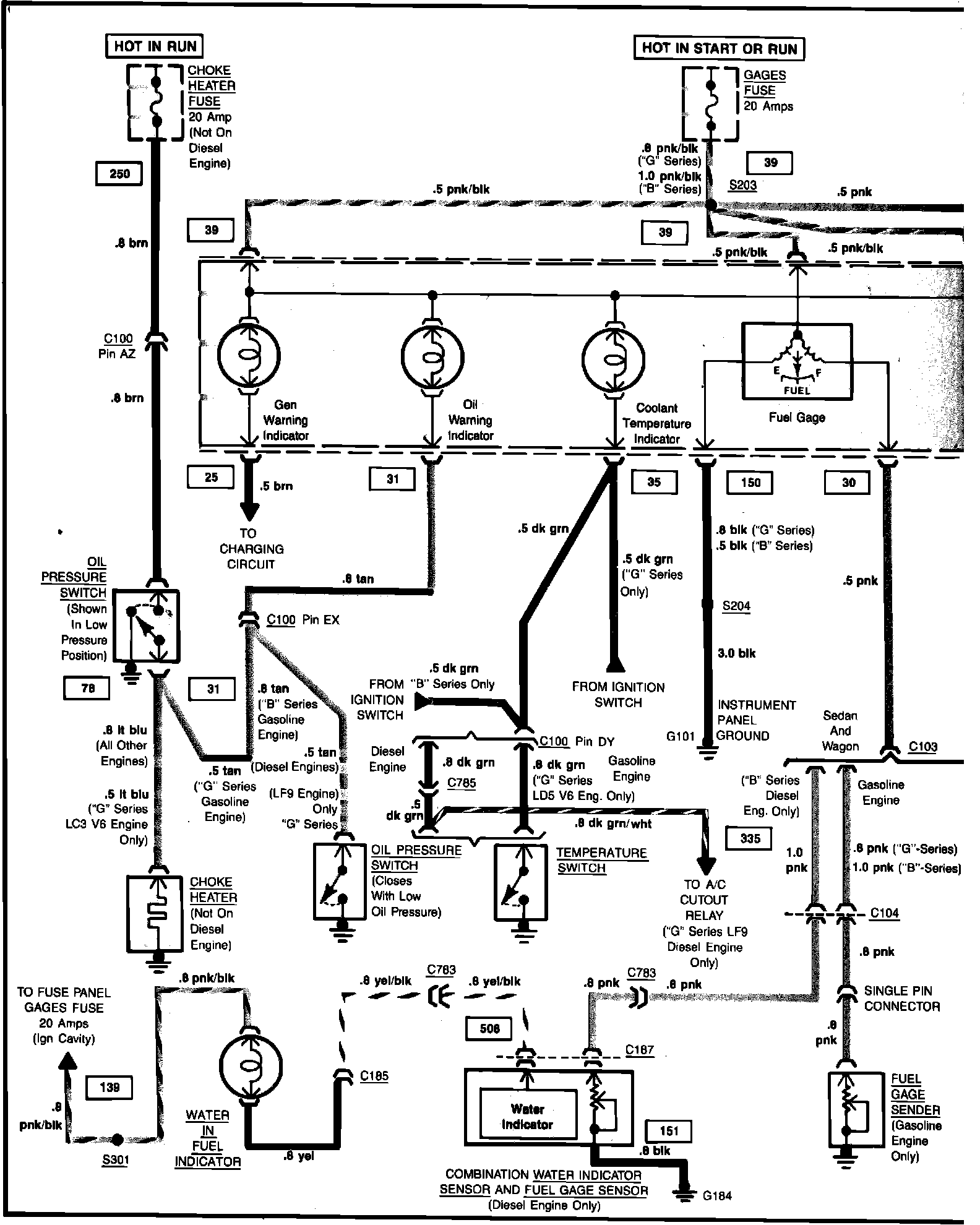

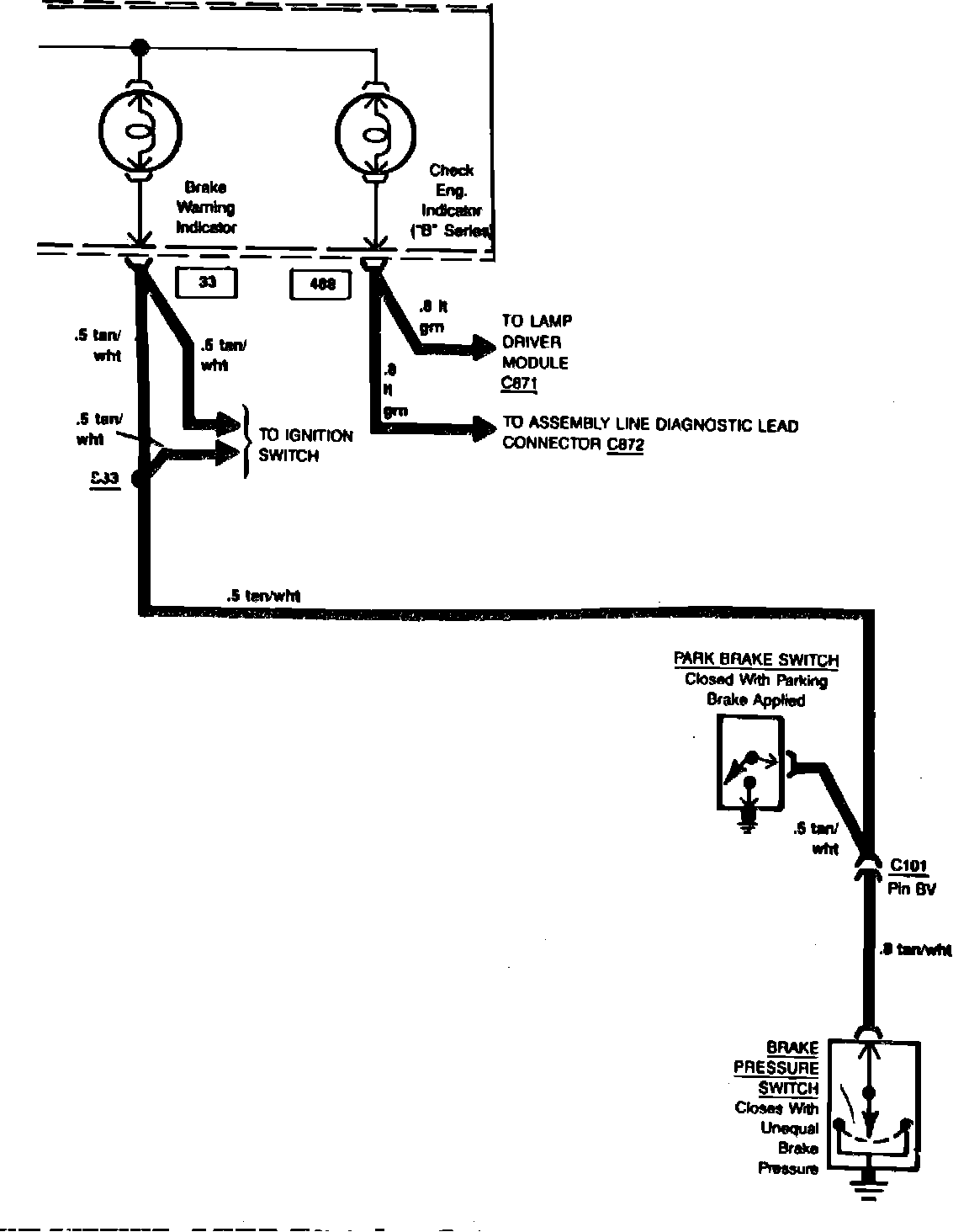

Choke Heater, Fuel Gauge & Warning Indicators Wiring Circuit:
Choke Heater, Fuel Gauge & Warning Indicators Wiring Circuit:
