Engine Data Sensors & Torque Converter Clutch (TCC)

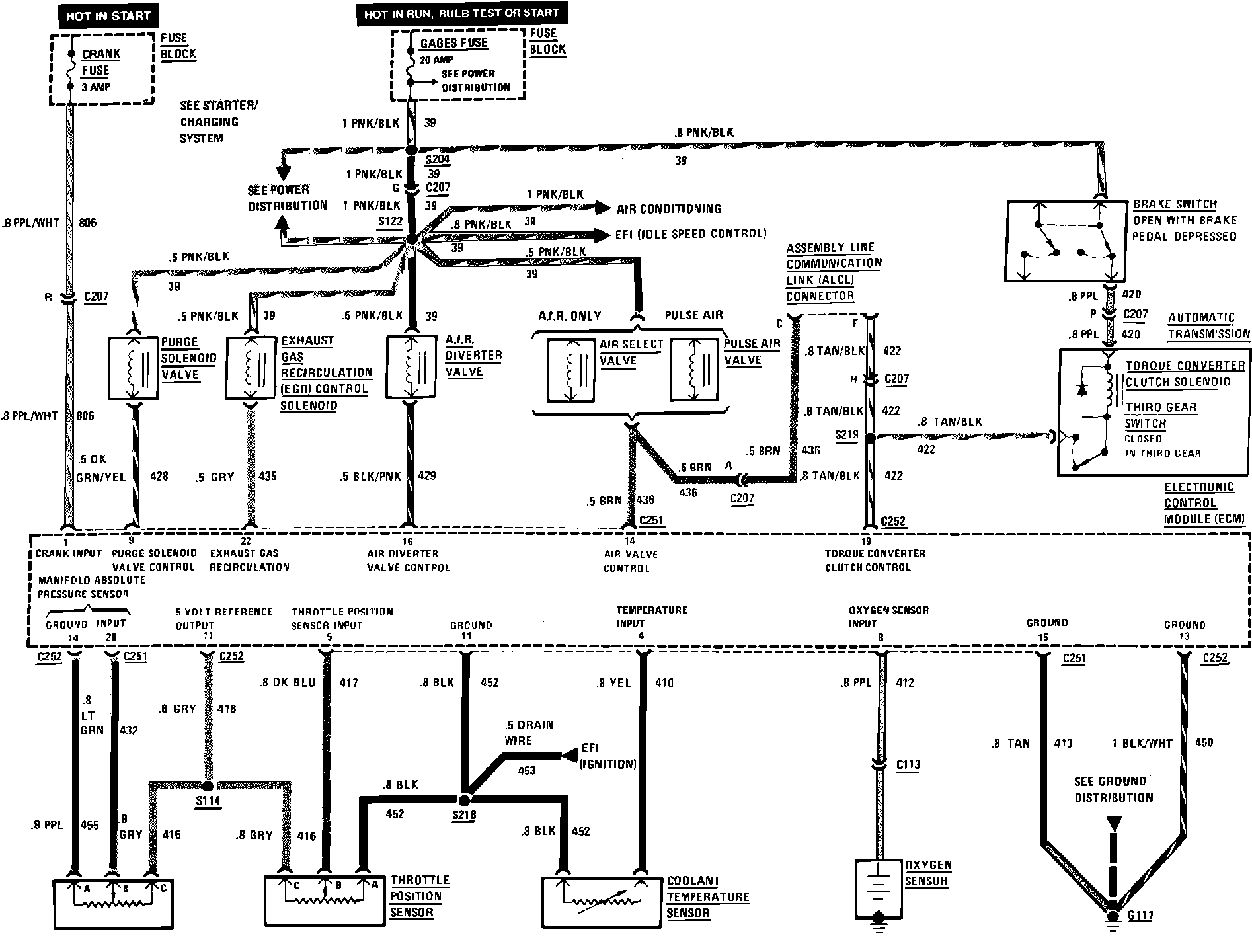

Throttle Body Injection Wiring Circuit (Engine Data Sensor & Torque Converter Clutch):
