Fuel Pump Relay

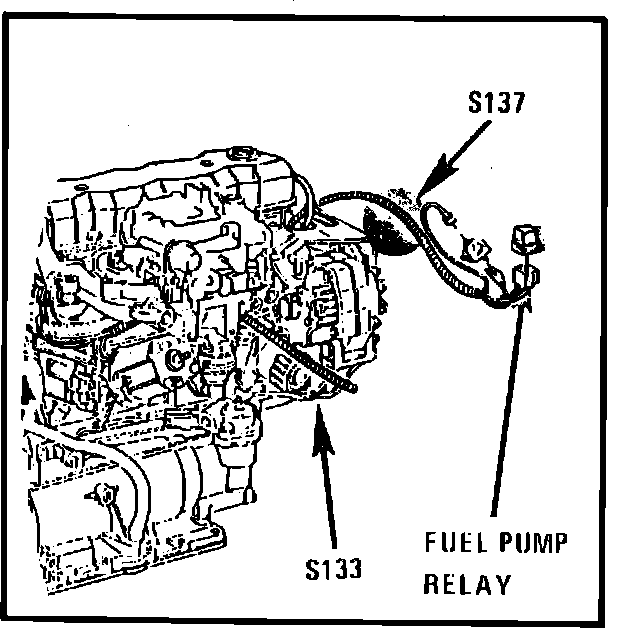

Fuel Pump Relay
Rear RH Side Of Engine.:
Upper RH Corner Of Engine Cowl, On Bracket
Applicable to: 1982-83 Celebrity w/4-151
