Console Wiring Circuit

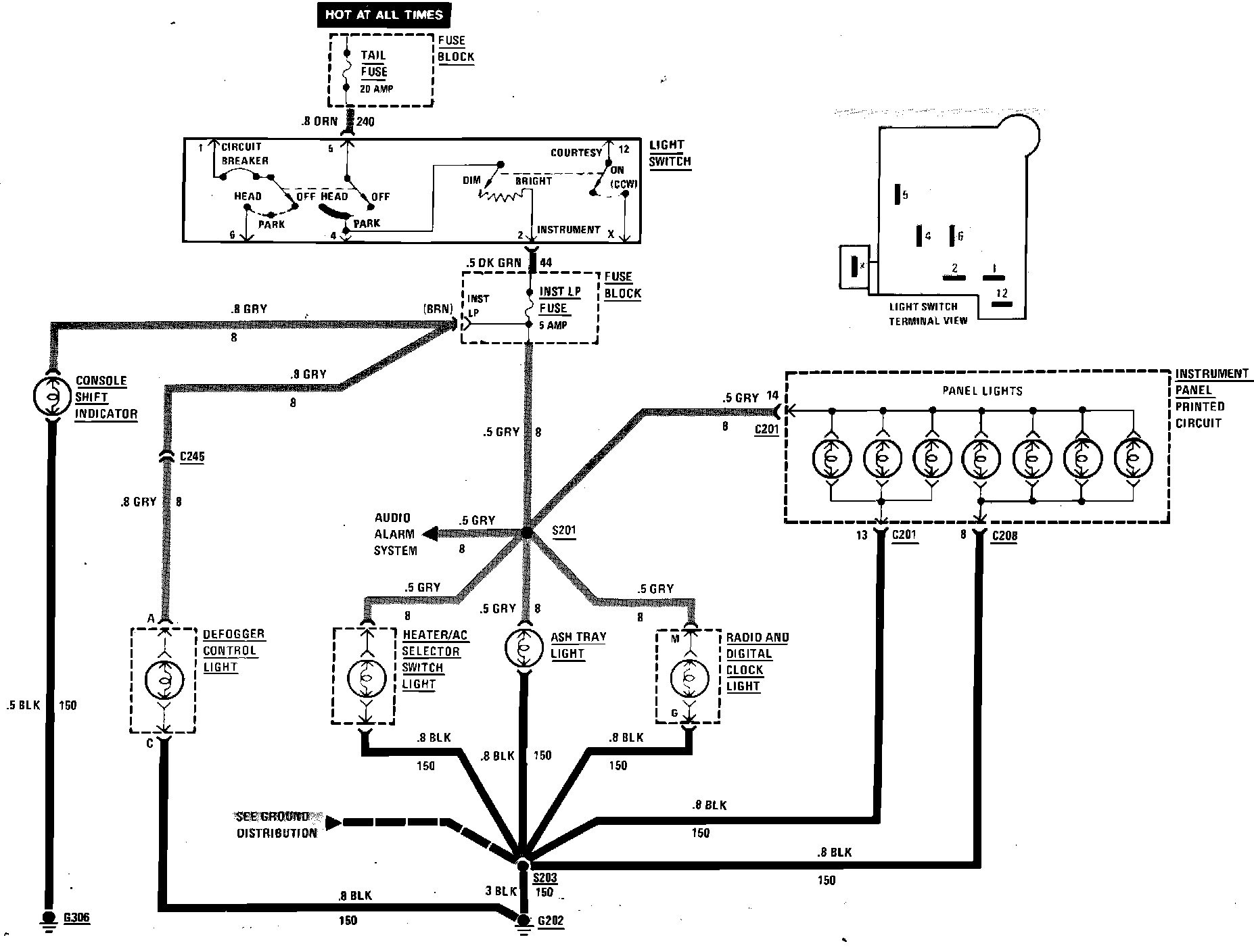

Clock, Console Shift Indicator & Instrument Panel Illumination Wiring Circuit:
