Fuel Control & Glow Plugs
Fuel Control & Glow Plugs

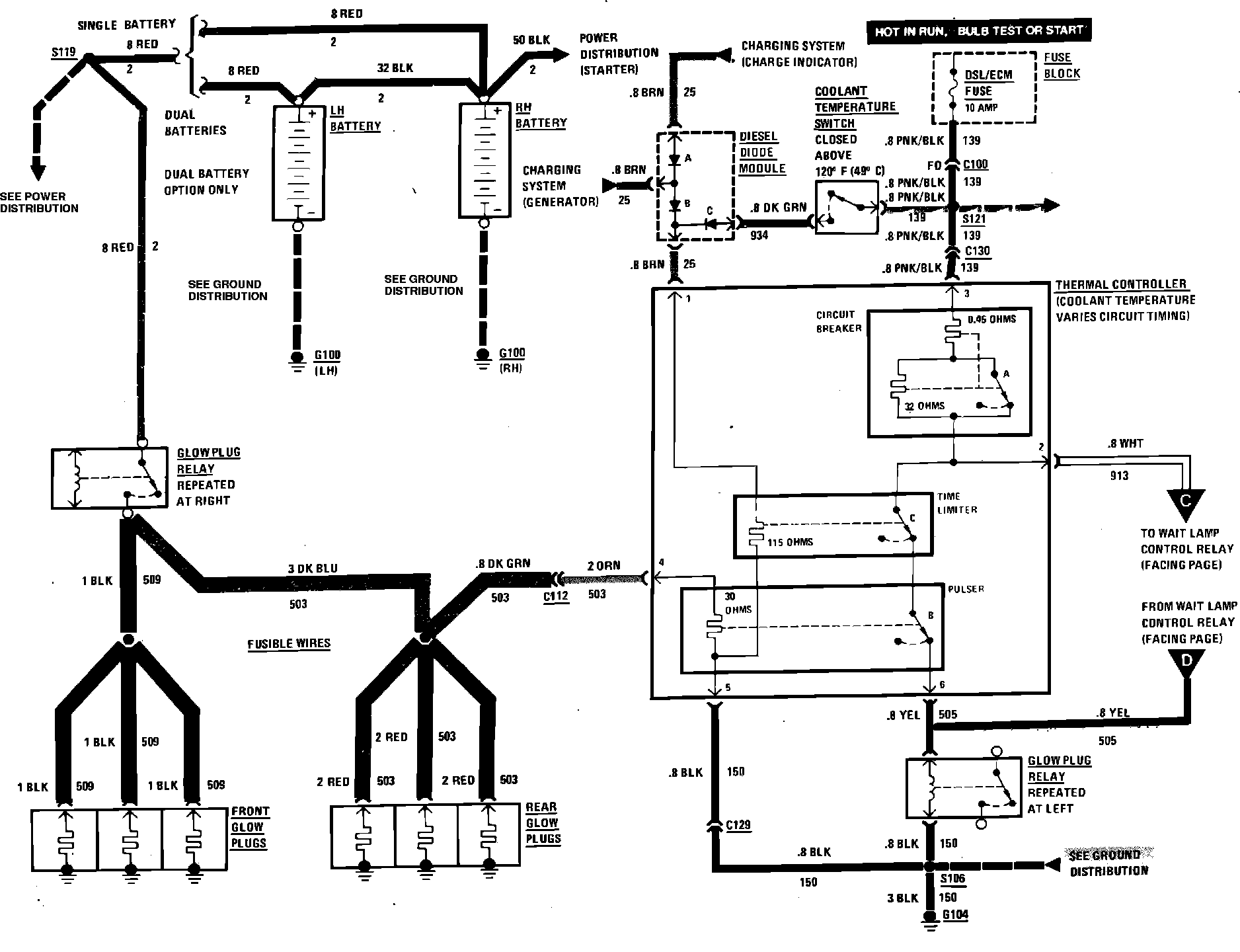

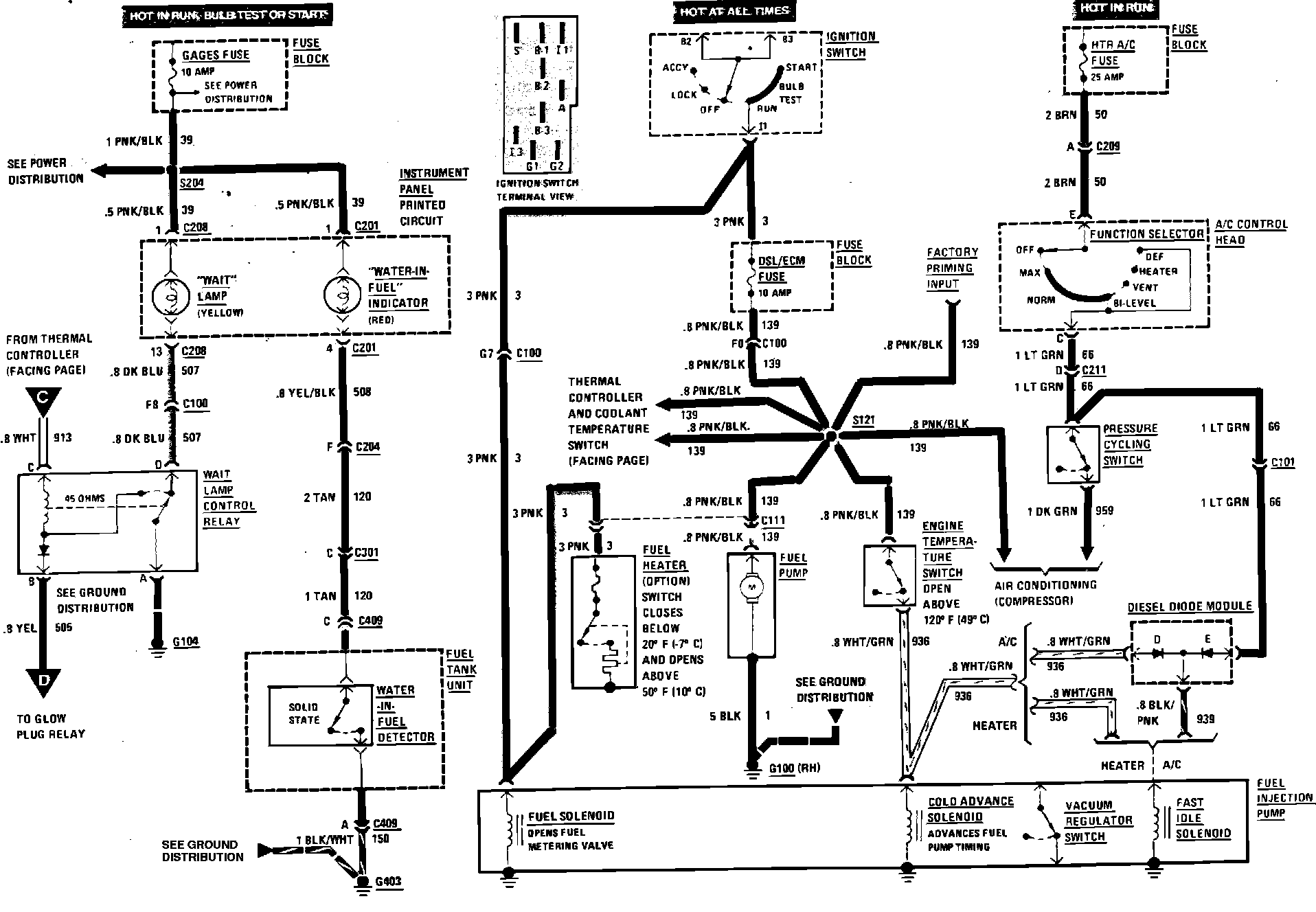

Diesel Engine Fuel Control & Glow Plug Wiring Circuit:
Diesel Engine Fuel Control & Glow Plug Wiring Circuit:
